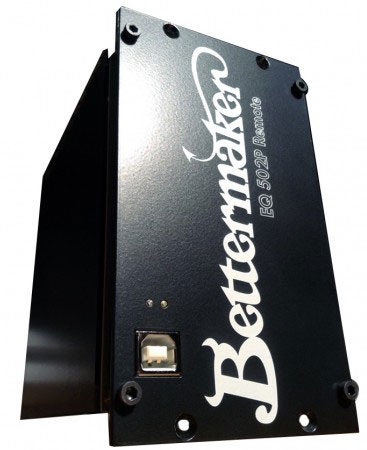

The EQ502R is a 500 series stereo analog passive equalizer with plugin recall
Available in remote only version for dramatically reduced cost!
Besides their pure analog signal paths, the units communicate with you DAW via USB and are fully recallable via plugin in your host.
You can save your settings in your D.A.W....AND... in your project with your AUTOMATION.
Another important thing is that when working with EQ502P Remote, you are always in your sweet spot.
Remote version means that the EQ has no front controls and all operations are made form your DAW.
By building these equalizers, Bettermaker wanted to create devices that would have a maximum range of usage and a very characteristic, but clean sound. We picked out the best classic designs and modified them to be more practical. As we work faster and faster every day, we need to have the highest quality and maximum speed we can get. That was the main motivation to develop the Bettermaker EQ 502P.
Stereo Pultec section- Shelf filters based upon legendary construction, offered in combined, matched stereo, with all the features including separate boost and attenuation.Full digital recall with 399 cells for your own presets.USB link to use the EQ's just as you would use a plugin, including Automation.AU, VST, RTAS (32 & 64 bit) supportedA/B comparison functionSteel screen isolators for maximum separation of digital and analog sections.7 factory presets to get you started!
Frequency response: 5Hz to 100kHz (-0.5dB)
Dynamic range: more than 106 dB
S/N ration: more than 104dB
THD+N: less than 0.004%
Weight: 0.5 kg
Input impedance: 20k Ohm balanced
Output impedance: 200 Ohm balanced
Max input level: +24dBu balanced or +18dBu unbalanced
Max output level: +24dBu balanced or +18dBu unbalanced
Clip detector: present
P EQ low freq. range: 20, 30, 60, 100Hz
PEQ high freq. range: 3, 4, 5, 6, 10, 12, 16 kHz
P EQ high cut freq: 5, 10, 20 kHz 6db/oct
Preset storage capacity: only DAW
Manufacturer Part Number : EQ502R
