* Class D output stage - Highly efficient high end home stereo system with the ability to produce the highest quality audio with low power draw and minimal heat. Also allows for less noise with no input signal, since the internal circuitry is off when the unit has no signal.
* Control Trigger - A control system is to allow remote switching of the amplifier's standby on/off feature.
* Amp Status LED - The power LED shows whether or not the amplifier has power. The amp LED shows the state of the unit including normal usage, standby state, limit and temp limit.
* Input and Output Connections via RJ45 - An RJ45 input/output designed to connect multiple AV brick amplifiers using a straight through CAT-5 cables.
* Dip Switch Configuration - Used to configure RJ45 I/O, Mono usage, Sense ability, and the control trigger input.

---

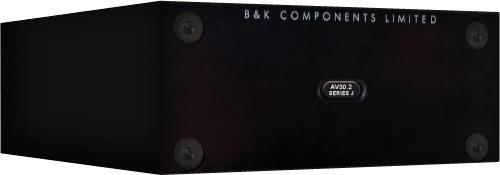

AV 30.2 Specifications

Power Rating: 8 ohms: 30 watts
Power Rating: 4 ohms 60 watts
Number of Channels : 2
Current (Peak to Peak) : 10 Amps
Dynamic Headroom : .5 dB
Total Harmonic Distortion : 0.016%
Signal to Noise Ratio (S/N) : 100 dB
Input Impedance : 10k
Damping Factor (50Hz) : 1000
Frequency Response : 5Hz - 45kHz
Slew Rate : 14V/µ sec
Audio Input Sensitivity : .1V/1W
Gain : 28AV or 28dB
AC Line Voltage : 120/220/240**
Level Controls : Dual Back
Maximum Output Wire Gauge : 12 AWG
Control Input : Yes
Control Output : Yes
Dimension in Inches (HxWxD) : 2.5" X 5.44" X 9.25"
Shipping Weight : 3 lbs
Max Power : 150 watts
Max Current Draw : 75mA
Watts @ No Input : 9 watts
Current in Standby : 35mA
Watts in Standby : 4 watts
