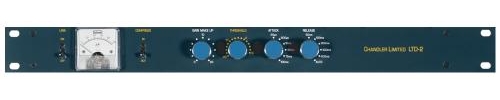

The Chandler Limited LTD-2 is a hand-wired 2254/2264/33609 that has been handmade using parts and build techniques from the original manufacture of the modules. Grounding, wiring techniques, original transformers, transistors, and much more attribute to the special sound of these units and have been painstakingly recreated in each LTD-2. We even make our chassis to resemble the old modules- highly polished plated steel.
The LTD-2 uses the control circuit from the family of compressors, but retains the Class A amps and transformers from the the 2254 modules. We add a six position attack switch which none of the vintage types had, and speed up the release times, which makes the units much more versitile. Warm and creamy and valuable in many situations!
All LTD units require and function on the PSU-1, Chandler Limited power supply. The PSU-1 has an internal switch for setting voltage to 120V or 220V (115V/230V).
Recreates 2254, 2264, & 33609 Neve TonesUses Components of Vintage Neve ModulesClass A Transformers and AmpsVariable Attack & Fast Release KnobsHandmade in the U.S.A.
Number of Channels: Single
Inputs
1x XLR, transformer balanced, pin 2 hot1x XLR link input, pin 2 hot
Outputs: 1x XLR, transformer balanced, pin 2 hot
Compression Threshold: -20 to 10dB
Attack Time: 50us, 500us, 10ms, 50ms, 75ms, 100ms
Release Time: 50, 100, 200, 300, 400ms and Auto
Make-up Gain: 0 to 20dB
Circuit: Discrete, transistor
Cable Length: Included 4-pin power cable: 6' (1.83 m)
Power: +/- 28V (Requires the Chandler Limited PSU-1 MKII power supply to operate)
Dimensions (LxWxH): 19 x 12 x 2" (483 x 305 x 51 mm)
Weight: 8 lb (3.6 kg)
