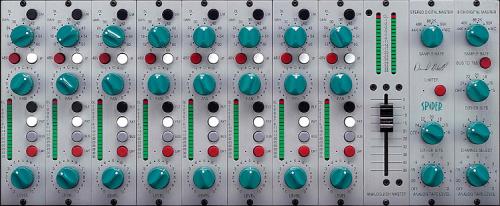

Spider is a high-quality eight 8-channel mic-pre amplifier/mixer with two types of digital outputs: stereo and eight (8) channel. The stereo output is for recording engineers who do live stereo or multi-channel recording and want a very flexible audio path. The 8 channel output allows the system to function as an analog front end for DAW's, digital mixers, and modular digital recorders.
In addition, the stereo bus can be assigned to digital channels 7 and 8. This allows a stereo mix of 6 channels to be assigned to digital outs 7 and 8 and leaves 2 channels independent. (eg. drums; kick, snare, and stereo left to right.)
Both the discrete class A pre-amp and the convertor modules are of a very high quality, low noise design. The maximum analog level at the insert points is +25 dBm. The digital modules include a DSP process to provide tape emulation.
6 to 66 DB input preamp gain in 6 DB steps
Channel level control
Pan control for the stereo output bus
Phantom power switch
Line - Mic switch
Phase switch
Low cut filter
Stereo bus assignment switch
Fat amp switch for a fat sounding audio path
16 segment meter peaking reading 0=clipping referenced to the A/D convertor
Clip light on the pre-amp section
Peak limiter for the A/D convertor. LED indicator showing limit action
Channel insert point may be used as a pre-amp output
Sample rate to 96KHz
WC input and output
Stereo bus can be assignable to outputs 7 and 8
Switch selectable Analog Dither control, 15 to 24 bits
DSP analog tape emulation, adjustable by channel. The level is indicated by the LED's around the process knob. The level is changed by selecting the channel and turning the process knob.
