UPC/EAN #6971842181643     MPN #DTA0186D30


Free shipping in Canada. Conditions

Miniature on-camera microphone with 20mph wind rating, automatic extra track assignment when a secondary source is plugged in

Allows users to capture directional audio and reject sounds coming from off-camera. The D4 Mini utilizes a new offset shockmount that makes it the ideal microphone for use with wide-angle vlogging cameras or action cameras. The side-mounted output jack is also perfect for hybrid DSLR shooters who still want to use their eyepiece for taking photos. The V-Mic D4 Mini features an input jack that allows you to split your stereo audio tracks and easily insert a secondary audio source, like a wireless microphone, without a splitter cable.

The input jack automatically inserts the second audio source when you insert a 3.5mm TRS connector. The audio is routed to the right audio channel on your camera. The input jack also features plug-in-power passed thru from the camera. This allows you use to a passive lavalier like the Deity V.Lav.

NOTE: The input jack does not work when you are using the V-Mic D4 Mini with a mono recorder or a cell phone.
  • Compact design
  • 20mph Wind Rating
  • Automatic extra track assignment when a secondary source is plugged in (Right Channel)
  • No Batteries Required " runs off 1-5V from cameras, phones, and audio recorders

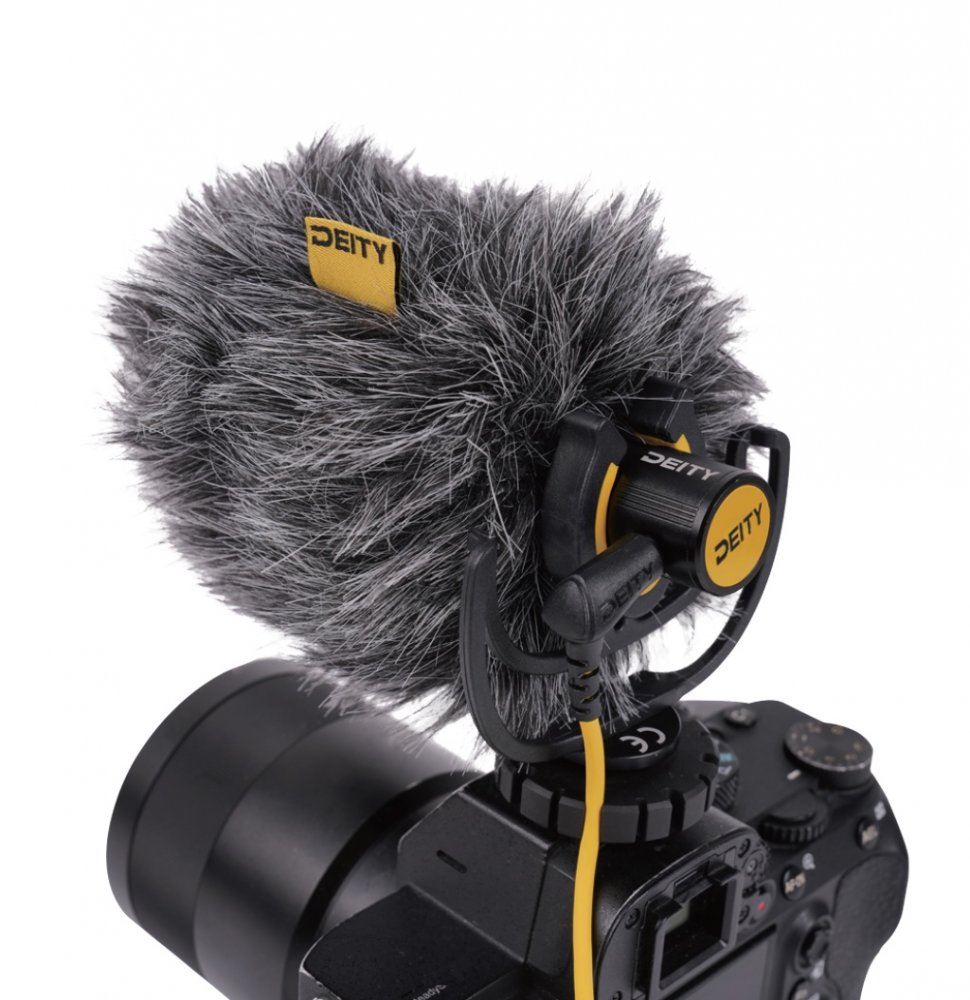

  • Includes: Microphone, Faux Fur Windshield, TRS Camera Cable, TRRS Phone Cable, Shockmount
  • Transducer Principle : Pre-Polarized Condensor
    Polar Pattern: Supercardioid
    Frequency Response : 20Hz " 20KHz
    Sensitivity : -38±2dB re 1V/Pa @1KHz
    Signal-to-Noise Ratio: 74 dB
    Maximum SPL : 134 dB SPL(@1KHZ,1%THD into 1k?)
    THD : ?1%
    Dynamic Range : 114dB
    Operating Voltage : 1.0 to 5V (Plug-In Power)
    Input Connection : 3.5mm TRS (1.0 to 5V Plug-In Power)
    Output Connection : 3.5mm TRS (Left - Mic Signal / Right - Mic Signal or Input)
    Windscreen : Include
    Cable : TRS to TRS & TRS to TRRS
    Color : Black
    Mounting : Deity Shockmount
    Dimensions : ?19*78mm
    Weight : 28g(Mic) / 61.5g(Fully rigged)
    Temperature Range : -10~45?

    In the box:
  • 1x V-Mic D4 Mini
  • 1x Faux Fur Windscreens
  • 1x Yellow 3.5mm TRS to TRS cable
  • 1x Yellow 3.5mm TRRS to TRS cable
