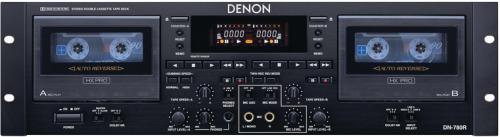

The DN-780R delivers all the benefits of a high-end, professional cassette deck along with the unique advantage of RS232 control. RS232 enables cascade or continuous recording, allowing users to make uninterrupted recordings utilizing both sides of the tape on the A and B wells. External synchronization capabilities extend this feature even further, enabling contiguous recording on other DN-780R units without manual intervention. Users will also enjoy the versatility provided by the DN-780R's microphone inputs as well as its simultaneous, independent playback and recording capabilities.

Highlights

Variety of Wired Remote Control Terminals

T/S Mic Jacks on Front Panel (2)

Cascade Connection In/Out (RCA)

Mono Output switch (Output Level, L: +4dBm R: -10dBv)

Headphone output (Selectable for Deck A, B or Mix)

Features

In/Out Terminals

Variety of Wired Remote Control Terminals

External Synchronized In/Out (RCA): You can synchronize with other the DN-780Rs

Serial D-Sub 9 pin (RS-232C)

Parallel D-Sub 25 pin

Mini TRS: Six basic functions can be controlled: PLAY, FF, REW, STOP, PAUSE and REC/REC MUTE.

T/S Mic Jacks on Front Panel (2)

Cascade Connection In/Out (RCA)

Optional XLR Input/Output Board(*1)

Mono Output switch (Output Level, L: +4dBm R: -10dBv)

Headphone output (Selectable for Deck A, B or Mix)

IR Remote Sensor

Playback/Recording Functions

Twin Output

Simultaneously Playback of two different cassettes at the same time.

Playback on Deck A while recording on Deck B or vice/versa

Relay Play will play back both sides of the tape in Deck A, then both sides of Deck B.

Variety of Recording Modes

Deck A/B Independent Recordings

Recording simultaneously on both decks. (Twin Rec)

Relay Record records on both sides of Deck A, then both sides of Deck B.

Cascade Recording

Multiple Synchronized Recordings

Mic Mixing Recording

Mic Rec mode Select switch: OFF/LINE (You can monitor Mic sound without recording)/REC (Recording Mic Sound)

Manual/Auto Gain Control

Other Features

Normal/Double Speed Dubbing

Cascade Playback

Memory rewind (Return-to-Zero)

Music Search

Power On Playback

Dolby B and C Noise Reduction System

Dolby HX-Pro Headroom Extension System

Independent FL Peak Hold Level Meter

Independent Tape Counter

MPX Filter

Mechanical Features

Quick Auto Reverse

Independent Tape Speed Control of ±12%

Non-Slip Reel Drive

Auto Tape Selector (Normal, CrO2, Metal)

General Features

Standard 19 inch, 3RU Aluminum Front Panel

Options

RC-U620: Hand Held IR remote

RC-41: Wristwatch IR remote

RC-770TW: Wired remote
