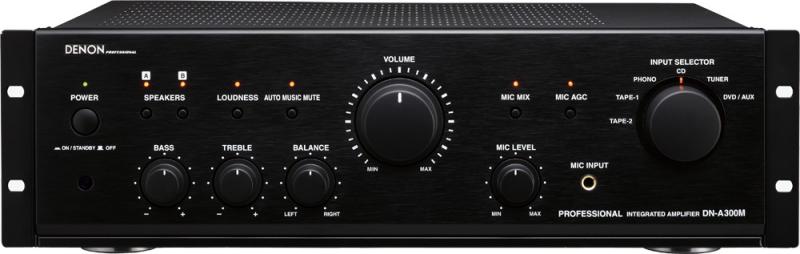

The Denon DN-A300M Professional Integrated Amplifier is the ideal solution for any sound reinforcement installation or application needing an affordable compact PA system. Complete with 2 - 100 Watt switchable power amps and a front-panel microphone input with auto-sensing music ducking, the DN-A300M allows a user the ability to broadcast a message over any of the 6 audio source inputs; a function highly desired in many small restaurant, bar and retail environments.

Application Example : BGM (Background Music)
The Denon Pro DN-A300M is an ideal front-end component for Background Music Systems in small restaurant, bar and retail environments. Controllable via IR, the DN-A300M can be installed into a manager's office or behind (or in) a host's / hostesses station and power two stereo areas such as the bar and dining room, for example. Complete with 6 audio inputs and 3 AC outlets, the user can connect standard BGM equipment (iPod dock and/or CD Changer) and then utilize the front-panel mounted microphone input to page notifications over the entire system; perfect for announcing "your table is ready" or other messages.

2 x 100w Power Amplifiers

A/B Speaker On/Off buttons

6 - unbalanced RCA audio inputs with grounded phono inlet

2 - unbalanced record outputs

1 - unbalanced Pre-out for connection to external amplification

Front-panel mounted 1/4" MIC jack allows for paging and announcements

3 back-panel mounted AC inlets for powering additional equipment like a CD player / changer or AM / FM / Satellite Radio Tuner (1-unswitched, 2-switched)

Multiple MIC mixing options including Auto Music Mute and MIC mix

Fully Adjustable MIC level or automate the MIC level with the DNA300M's internal AGC MIC circuit

Bass and Treble adjustments with Loudness switch

Control all features of the product (and other Denon Pro products) with the included IR remote

3U Rack kit included

Power Amplifier Section



Rated Power Output 2-channel driving(CD --> SP Out)
70W + 70W
8 ohms, 20Hz - 20kHz, THD 0.07%)
110W + 110W
4 ohms, DIN, 1kHz, THD 0.7%)


High Frequency Distortion
0.01% (Rated Output: -3dB), 8 ohms, 1kHz


Output Terminals Speaker
A or B: 4 ~ 16 ohms
A + B: 8 ~ 16 ohms


Pre-amplifier Section



Input Sensitivity



Phono (MM)
2.5mV


CD, Tuner, DVD/AUX,Tape-1, Tape-2
150mV


MIC
0.6mV


Input Impedance



Phono (MM)
32 kohms


CD, Tuner, DVD/AUX, Tape-1, Tape-2
33 kohms


MIC
4 kohms


RIAA Deviation



PHONO (MM):
20Hz - 20kHz + 0.5dB


Overall Performance



Signal to Noise Ratio (A Network)



Phono (MM):
76dB


CD, Tuner, DVD/AUX, Tape-1, Tape-2
105dB


MIC
60dB


Tone Control



Bass
100Hz, + 8dB


Treble
10 kHz + 8dB


Loudness
100Hz +6dB, 10kHz +4dB


General



Power Outlets
1 unswitched / 2 switched


Total Capacity
120W (1A)


Power Supply
AC 120V, 60Hz


Power Consumption
3.3A


Dimensions
483(W) x 140(H) x 372(D) mm
19"(W) x 5 1/2"(H) x 14 21/32"(D)


Net Weight
10.3 kg (22lbs 11.3 oz)


Operational Temperature
5° to 35°C (41° to 95°F)


Storage Temperature
-20° to 60°C (4° to 140°F)


Remote Control Unit (RC-1101)



Remote Control Type
Infrared Pulse


Power Supply
R03/AAA type (2 batteries)


External Dimensions
50(W) x 200(H) x 27(D)mm
2"(W) x 7 55/64"(H) x 1" (D)


Weight
128g (~ 4.5oz)(including batteries)
