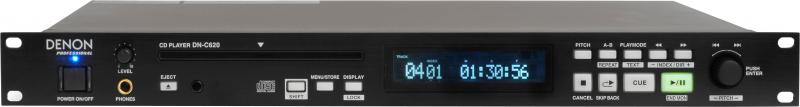

The Denon DN-C620 is, at the heart of it, a full-featured, rack-mounted CD player. But note the word "Professional" in the brand name. With a combination of flexible file formats and comprehensive inputs and outputs, this machine takes the "CD player" concept to new heights.

Reads CD-DA, CD-R/RW data discs
Beyond its professional playback capabilities of commercial CDs, the new Denon Professional DN-C620 possesses the ability to read and playback audio from CD-R and CD-RW data discs, a practice common in today's applications.

WAV and MP3 playback
Not only can the DN-C620 playback MP3 files from CD-R/RW DATA discs, but it is also capable of decoding uncompressed digital PCM (WAV) files from those same discs.

Controllability for Every Application
The new Denon Professional DN-C620 comes with a host of control options, suitable for every application and every installation.

25-pin Contact Closure (GPIO)
Denon CD players have been used for years in the broadcast market and the DN-C620 is no exception. A 25-pin GPIO port allows for easy integration and full-featured usability in every broadcast studio or station installation.

9-pin RS-232C Control
The DN-C620 easily integrates into any new or existing installation using third-party serial control systems like Crestron® or AMX®. Additionally, the DN-C620 has the ability to output POS and ISRC data strings as well as ID3 tag and CD-TEXT information via the serial port. Stations that broadcast HD-radio or RDS can use this metadata to transmit "Now Playing" information.

IR Control with included IR Remote Control
Like most CD players, the DN-C620 is controllable by its included IR commander. Perfect for Health and Fitness centers or small installations not utilizing serial control solutions, the IR controllability of the DN-C620 allows command of every feature from playback to the +/-12% pitch to be activated/adjusted.

1 RU Rackmount Size with slot-in CD mechanism

Supports CD-DA (.cda), WAVE (.wav), MPEG-1/2 Layer III (.mp3)

+/- 12% Pitch Control

User-programmable Quick Replay Feature (Skip back)

End Monitor and User-selectable Finish Mode Features

Cue to Music (with dedicated button)

Program / Random Play Modes

Repeat One, All, A-B Modes

Balanced Audio Output (XLR)

Digital Audio Output with S/PDIF and AES/EBU Connectors

Fixed and Variable Level Unbalanced Audio Outputs (RCA x 2)

Reads, Displays, and Generates CD-Text and ID3 Tag Information

IR, RS-232c (9-pin D-sub), and GPIO (25-pin D-sub) controllable

---

Applications

Broadcast

Corporate Installation

BGM (Background Music)

Front-of-house

Theatre / Performance

Health / Fitness Centers

House of Worship

Specifications



General



Disc type:
Standard compact discs (12 cm and 8 cm) CD-R, CD-RW






Audio Section



Audio channel:
2 channel stereo


Frequency response:
10 to 20,000Hz ± 1.0 dB


Dynamic range:
98 dB


Signal-to-noise Ratio:
100 dB (1kHz, 0 dB playback, A filter)


Channel separation:
96 dB (1kHz, 0 dB playback, A filter)


Total Harmonic Distortion:
0.004 % (1kHz, 0 dB playback, A filter)


Analog output:



Unbalanced output (RCA):
2.0 Vrms at 0 dB disc, 10 kohms


Variable range(VARIABLE):
4.0 Vrms at 0dB disc, volume max.


Balanced output (XLR):
+18 dBu at 0 dB disc, 600 ohms


Variable range:
+24 dBu to +0 dBu at 0 dB disc


Digital output:



Unbalanced output (RCA):
0.5 Vp-p, 75 ohms


Balanced output (XLR):
3.5 Vp-p, 110 ohms


Signal Format:
SPDIF or IEC-958 Type II


Headphone Output:
20 mW, 33 ohms


Variable Pitch Control:
±12 % max.


Frame Search Accuracy:
1/75 second






Signal System



Sampling Frequency:
44.1 kHz at Normal Pitch


Quantization:
16-bit Linear






Remote Control



Serial remote:
RS232C, D-Sub 9-pin


Parallel remote:
D-Sub 25-pin


IR control input:
IR sensor


IR FLASH:
RC In Control Jack
(1/8"stereo mini Jack)






Power Supply



U.S.A. & Canada models:
120 V AC ±10 %, 60 Hz


Power Consumption:
14 W (U.S.A. & Canada models)






Cabinet, etc.



Installation:
19-inch 1U rack space


Maximum Dimensions:
482.6 (W) x 44 (H) x 325 (D)mm
19" (W) x 1.7" (H) x 12.8" (D)


Weight:
4.3 kg, 9.5 lbs






Environmental Conditions



Operating temperature:
+5°C to +35°C


Operating humidity:
25% to 85%, non condensing


Storage temperature:
-20°C to +60°C


Storage humidity:
25% to 85%, non condensing



In the Box:

Remote Control Unit x 1

AAA batteries x 2

Audio Cord (Stereo) x 1

AC Power Cord x 1

Operating Instructions x 1

CD-ROM x 1

Warranty Card x 1
