DPA 4060-OL-C-W10
MPN #4060-OL-C-W10

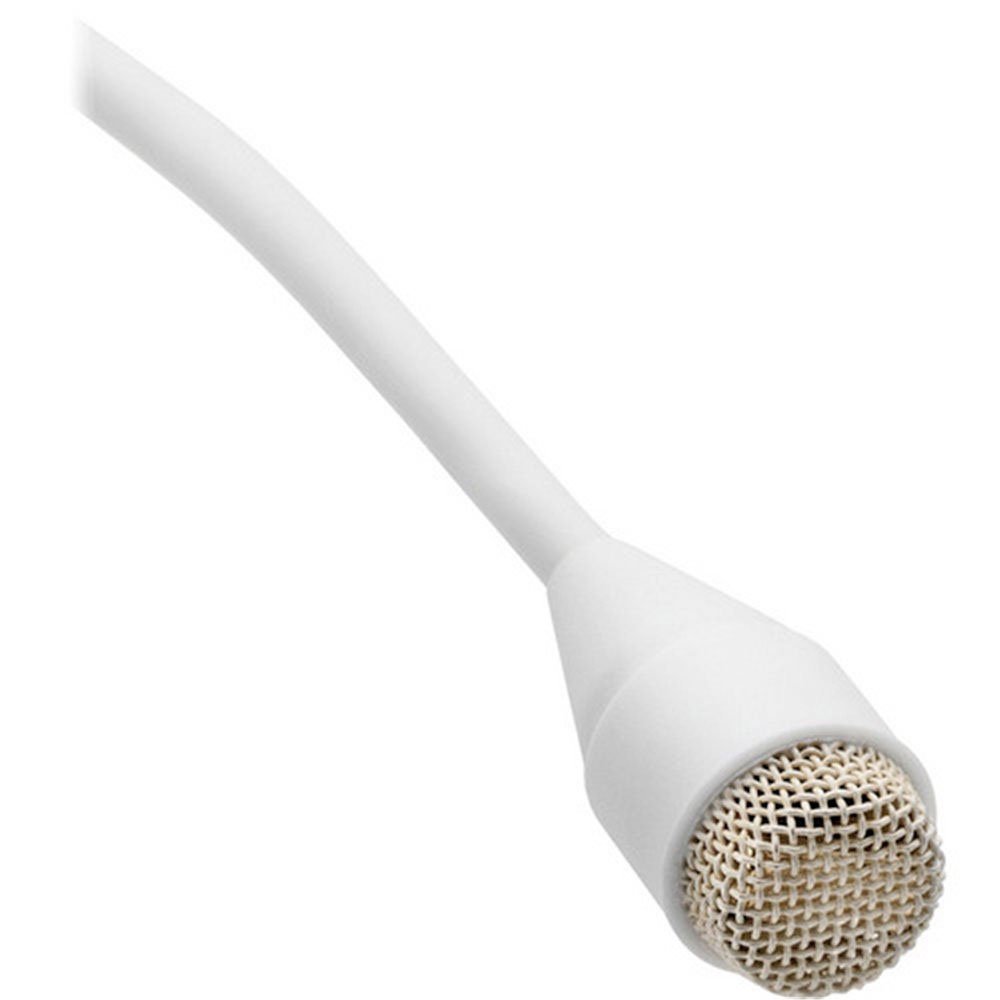

The d:screet 4060 Omnidirectional Microphone, Hi-Sens offers a very clean, detailed and natural sound quality. White, TA4F Mini-XLR connector included.
Originally designed for use with wireless systems in theater, television and close-miked instrument applications, the d:screet 4060 Miniature Omnidirectional Microphone, Hi-Sens is highly unobtrusive. Because of its small size, it exhibits an exceedingly accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.
The d:screet 4060 Miniature Omnidirectional Microphone, Hi-Sens is available in four colors: black, brown, beige and white.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine, d:screet and d:vote series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Includes an adapter for: TA4F Mini-XLR - Shure U1 / UR1 / UT1 / SC1 / SLX1 / ULX1
Features
Extremely rugged and reliableExceptional audio qualityLow noise and high sensitivityLarge selection of accessoriesModular adapter system fits most professional wireless systems
Specifications
Directional characteristics: OmnidirectionalPrinciple of operation: PressureCartridge type: Pre-polarized condenser element with vertical diaphragmFrequency range, ± 2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz.Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/PaEquivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))Equiv. noise level ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 71 dB(A)Total harmonic distortion (THD): < 1 % THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sineDynamic range: Typ. 100 dBMax. SPL, peak before clipping: 134 dBOutput impedance: 30 - 40 ohmCable drive capability: Up to 300 m (984 ft)Power supply: For wireless For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.Connector: TA4F Mini-XLRColor: WhiteMicrophone weight: 7.5 g (0.26 oz) incl. cable and MicroDot connectorMicrophone diameter: 5.4 mm (0.21 in)Microphone length: 12.7 mm (0.5 in)Cable length: 1.8 m (5.9 ft)Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pinTemperature range: -40 °C to 45 °C (-40 °F to 113 °F)Relative Humidity (RH): Up t 90%
