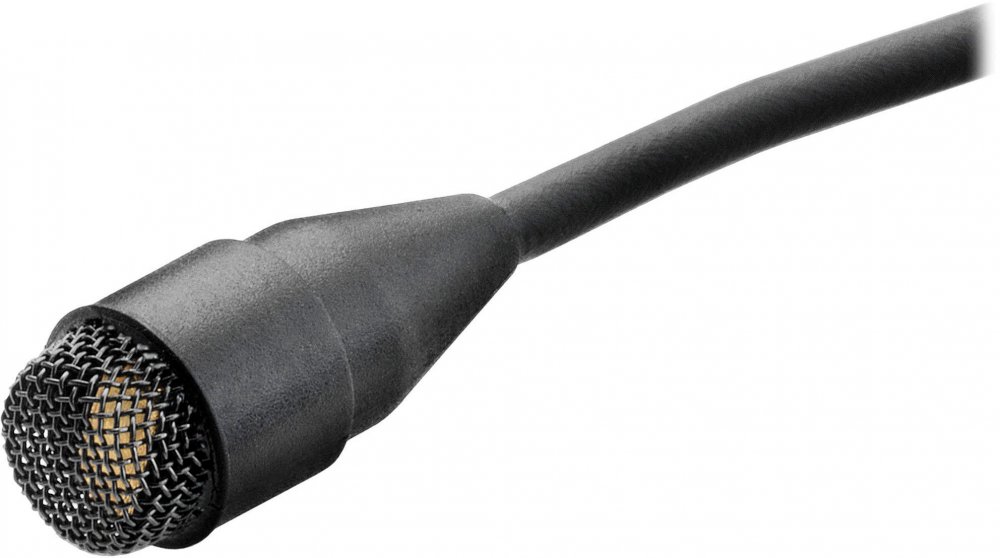

The d:screet 4061 Mini Omni Microphone, High SPL can handle up to 144 dB peak before clipping, ideal for use on very loud sound sources. Black, 3-pin LEMO adapter included.
Each version is tailored towards a specific application based on sensitivity, voltage and placement needs. They are all based on the original d:screet 4060; the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. All of the mics in the series share important basic features, but each is optimized for particular applications.
The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
The acoustic response of the d:screet 4060 Series can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the d:screet 4071, which includes a fixed grid). The pre-fitted Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz. It should be used when the microphone is mounted on the performer's head as well as in most other applications where you need a natural-sounding microphone. When fitted, the High Boost Grid introduces a 10 dB soft boost around 12 kHz for applications where the microphones chest-placement is preferred. Both of these grids are made of anodized stainless steel, giving a tough and scratch resistant surface. They can be detached from the microphone and cleaned of sweat, makeup, etc.
Flexible adapter system
All of DPA's microphones can be configured to run easily and effortlessly with a wireless system. We use a unique MicroDot termination on our microphones together with a changeable adapter to ensure secure configuration. All of the adapters we use are original, developed and manufactured by the wireless system brand you use. This ensures that your mic will work consistently with no connection trouble to your system.
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.
Using an adapter for wireless, our microphones with MicroDot termination are compatible with the professional wireless systems listed below. Many of these brands have several model numbers. To ensure compatibility you should find your particular model number, which in most cases can be found on the transmitter. Other configurations are possible; however, DPA Microphones cannot guarantee full compatibility in these cases.
Wireless brands we work with: AKG, Audio Ltd., Audio-Technica, Beyerdynamic, Electro-Voice, Lectrosonics, Line 6, Micron, Mipro, Pastega, Ramsa, Sabine, Samson, Sennheiser, Shure, Sony, Telex, TOA, Trantec, Vega, Wisycom and Zaxcom.
Hardwired versions without the MicroDot connector are also available for various versions. Popular choices are 3-pin LEMO (Sennheiser), Mini-Jack (Sennheiser) and TA4F Mini-XLR (Shure).
If you prefer to run via a wired system, all of our mics are available with an XLR adapter.
Exceptional audio qualityUniform, consistent sound between DPA micsExtremely rugged and reliableDiminutive size made for flexible and easy concealmentLarge selection of clips, windscreens, grids and other accessoriesModular adapter system fits most professional wireless systems
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHzHigh boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted): re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB(A)
Total harmonic distortion (THD) - Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Total harmonic distortion (THD) - CORE < 1% THD up to 129 dB SPL peak
Dynamic range - Legacy: Typ. 100 dB
Dynamic range - CORE: Typ. 106 dB
Max. SPL, peak before clipping: 134 dB
Output impedance: 30 - 40
Cable drive capability: Up to 300 m (984 ft)
Power supply (for full performance)
For wireless systems: Min. 5 V - max. 50 V through DPA adapter.With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Connector: 3-Pin LEMO
Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Manufacturer Part Number : 4061-OL-C-B03
