DPA 4061-OL-C-F03
MPN #4061-OL-C-F03

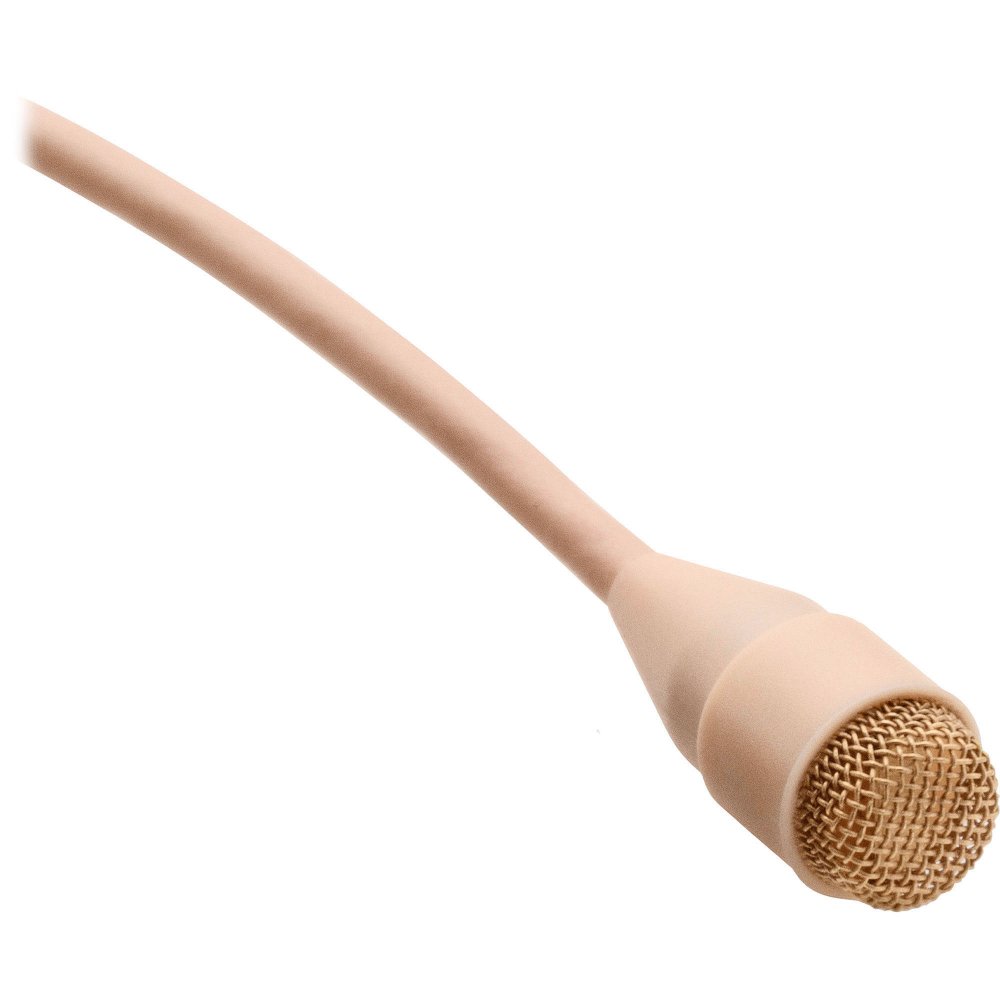

If you need to couple complete invisibility with amazing sound, the d:screet Slim 4061 Omnidirectional Microphone, is what you need. Beige, 3-pin LEMO adapter included.
This mic is perfect for your film assignment or for any other situation where you need a completely hidden microphone. The d:screet Slim 4061 Omnidirectional Microphone is flat and short with a cable that runs perpendicular to the sound inlet, ensuring easy mounting and a tiny footprint. When used with the detachable Button-Hole Mount or Concealer, it becomes completely invisible. With sound on par with DPA's classic d:screet Omnidirectional Miniature Microphones, you can be sure that the d:screet Slim will not disappoint.
The d:screet Slim will be available for delivery from end-2015.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine, d:screet and d:vote series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Includes a choice of adapter for:
3-pin Lemo - Sennheiser SK50 / 250 / 3063 / 5012Locking Mini-Jack - Sennheiser Evolution / G2 / X2 DigitalTA4F Mini-XLR - Shure U1 / UR1 / UT1 / SC1 / SLX1 / ULX1TA5F Mini-XLR - Lectrosonics LM / SM / UM Series (low DC micrphones)
Features
Key features
Extremely rugged and reliableExceptional audio quality with low noise and high sensitivityAdapts to all pro wireless systemsLarge selection of accessories
Specifications
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB Soft boost grid
20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity: nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R: BS.468-4 Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 68 dB(A)
Total harmonic distortion (THD): - Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Total harmonic distortion (THD): - CORE < 1% THD up to 137 dB SPL peak
Dynamic range - Legacy: Typ. 97 dB
Dynamic range - CORE: Typ. 111 dB
Max. SPL, peak before clipping: 144 dB
Output impedance: 30 - 40
Cable drive capability: Up to 300 m (984 ft)
Power supply (for full performance)
For wireless systems: Min. 5 V - max. 50 V through DPA adapter.With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector: 3-pin LEMO
Color: Beige
Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
