DPA 4061-OL-C-F10

$664.00

Free shipping in Canada. Conditions

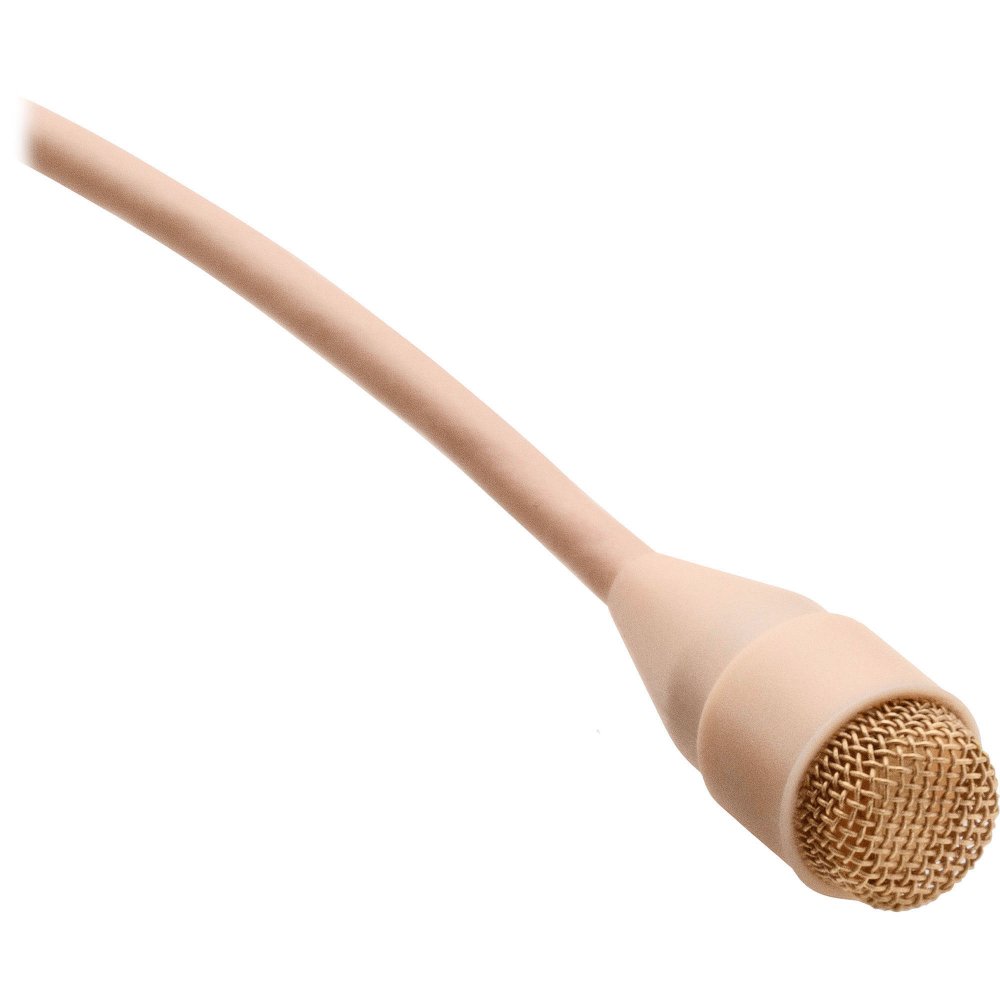

If you need to couple complete invisibility with amazing sound, the d:screet Slim 4061 Omnidirectional Microphone, is what you need. Beige, TA4F Mini-XLR adapter included.



This mic is perfect for your film assignment or for any other situation where you need a completely hidden microphone. The d:screet™ Slim 4061 Omnidirectional Microphone is flat and short with a cable that runs perpendicular to the sound inlet, ensuring easy mounting and a tiny footprint. When used with the detachable Button-Hole Mount or Concealer, it becomes completely invisible. With sound on par with DPA's classic d:screet™ Omnidirectional Miniature Microphones, you can be sure that the d:screet™ Slim will not disappoint.

The d:screet™ Slim will be available for delivery from end-2015.

Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.

The d:fine™, d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

Includes a choice of adapter for:
  • 3-pin Lemo - Sennheiser SK50 / 250 / 3063 / 5012
  • Locking Mini-Jack - Sennheiser Evolution / G2 / X2 Digital
  • TA4F Mini-XLR - Shure U1 / UR1 / UT1 / SC1 / SLX1 / ULX1
  • TA5F Mini-XLR - Lectrosonics LM / SM / UM Series (low DC micrphones)
  • Features

    Key features
  • Extremely rugged and reliable
  • Exceptional audio quality with low noise and high sensitivity
  • Adapts to all pro wireless systems
  • Large selection of accessories
  • Specifications

    Directional pattern: Omnidirectional
    Principle of operation: Pressure
    Cartridge type: Pre-polarized condenser
    Frequency range: 20 Hz - 20 kHz

    Frequency range, ±2 dB Soft boost grid
  • 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
  • High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity: nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    Equivalent noise level, ITU-R: BS.468-4 Typ. 38 dB (max. 40 dB)
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 68 dB(A)
    Total harmonic distortion (THD): - Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
    Total harmonic distortion (THD): - CORE < 1% THD up to 137 dB SPL peak
    Dynamic range - Legacy: Typ. 97 dB
    Dynamic range - CORE: Typ. 111 dB
    Max. SPL, peak before clipping: 144 dB
    Output impedance: 30 - 40
    Cable drive capability: Up to 300 m (984 ft)

    Power supply (for full performance)
  • For wireless systems: Min. 5 V - max. 50 V through DPA adapter.
  • With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance

  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    Connector: TA4F Mini-XLR
    Color: Beige
    Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
    Microphone diameter: 5.4 mm (0.21 in)
    Microphone length: 12.7 mm (0.5 in)
    Cable length: 1.8 m (5.9 ft)
    Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH): Up to 90%
    Manufacturer Part Number : 4061-OL-C-F10
