MPN #4061-OC-C-B34
DPA 4062-OC-C-B34

$659.00

Financing available
Free shipping in Canada. Conditions

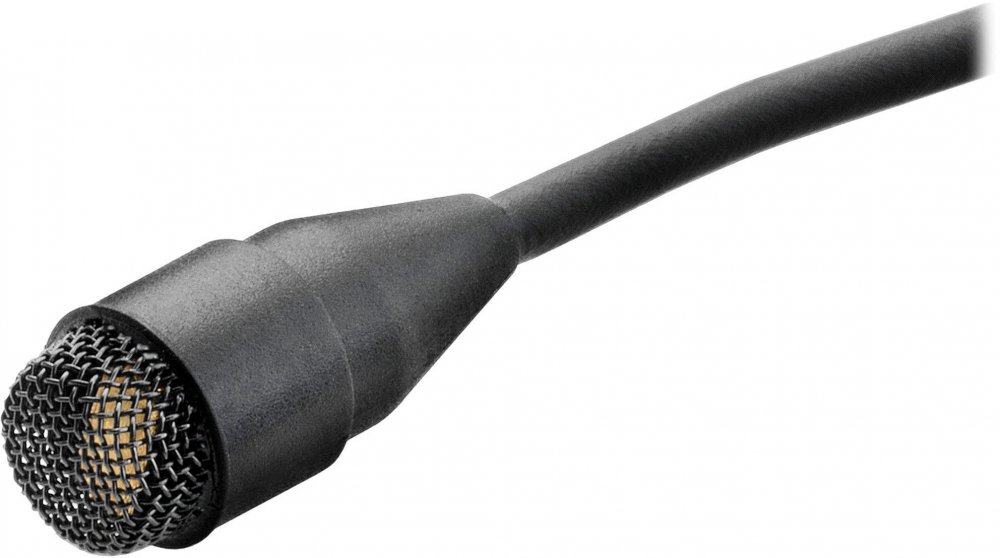

d:screet Core 4062 Miniature Omnidirectional Microphone with Mini Jack Connector, Extreme SPL, Black



The 4062-OC-C-B34 is designed for use with wireless systems in performance and theatrical presentations. The Core 4062 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4062 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.
  • Rugged and reliable
  • Natural audio quality
  • Low-noise
  • Large selection of accessories
  • Directional pattern: Omnidirectional
    Principle of operation: Pressure
    Cartridge type: Pre-polarized condenser
    Frequency range: 20 Hz - 20 kHz
    Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
    Sensitivity, nominal, ±3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A))
    Equivalent noise level, ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)
    Total harmonic distortion (THD) - CORE < 1% THD: 136 dB SPL RMS, 139 dB SPL peak
    Dynamic range - CORE: Typ. 106 dB
    Max. SPL, peak before clipping: 154 dB
    Output impedance: 30 - 40
    Cable drive capability: Up to 300 m (984 ft)
    Power supply (for full performance) For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
    Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    Connector: Mini Jack
    Color: Black
    Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
    Microphone diameter: 5.4 mm (0.21 in)
    Microphone length: 12.7 mm (0.5 in)
    Cable length: 1.8 m (5.9 ft)
    Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH): Up to 90%

    In the Box:
  • DPA Microphones d:screet Core 4062 Miniature Omnidirectional Microphone with Mini Jack Connector (Extreme SPL, Black)
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
