DPA 4062-OC-C-F00
MPN #4062-OC-C-F00

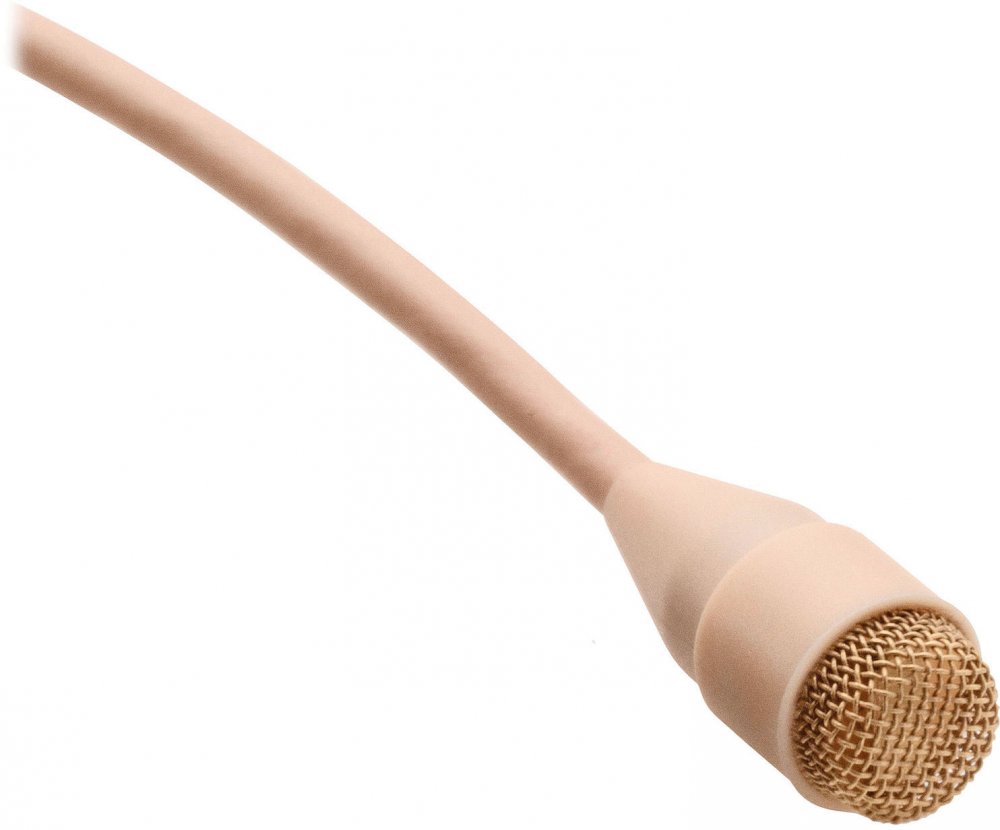

d:screet Core 4062 Miniature Omnidirectional Microphone with MicroDot Connector (Extreme SPL, Beige), no adapter included
The 4062-OC-C-B00 is designed for use with wireless systems in performance and theatrical presentations. The Core 4062 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4062 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.
Features
Rugged and reliableNatural audio qualityLow-noiseLarge selection of accessories
Specifications
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)
Total harmonic distortion (THD) - CORE < 1% THD: 136 dB SPL RMS, 139 dB SPL peak
Dynamic range - CORE: Typ. 106 dB
Max. SPL, peak before clipping: 154 dB
Output impedance: 30 - 40
Cable drive capability: Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

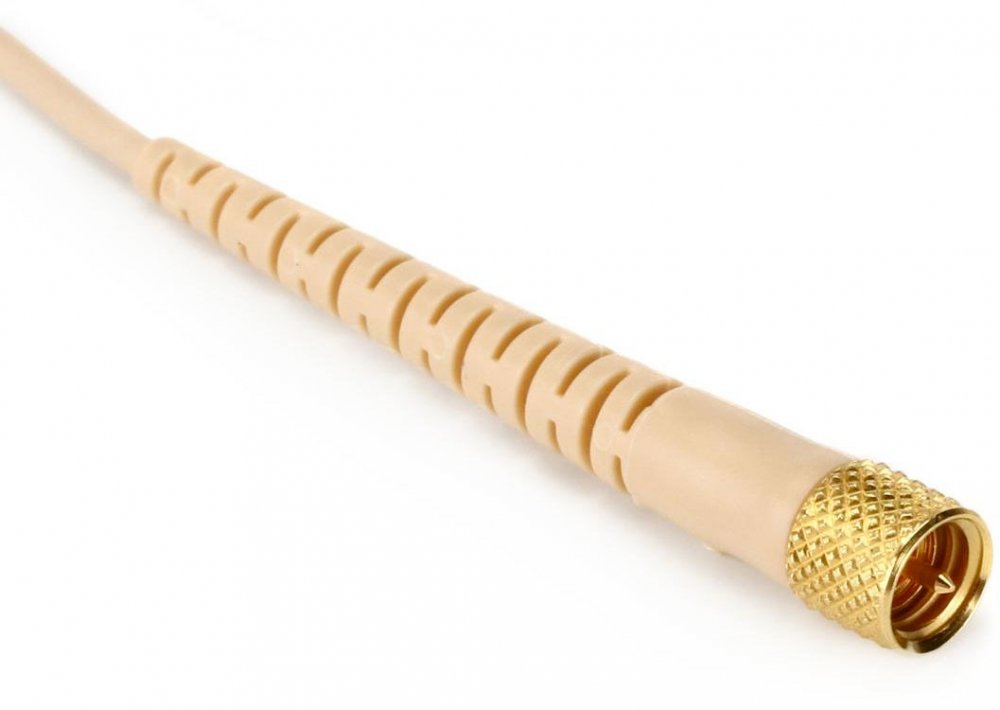

Connector: MicroDot
Color: Beige
Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
In the Box:
DPA Microphones d:screet Core 4062 Miniature Omnidirectional Microphone with MicroDot Connector (Extreme SPL, Beige)High-Boost Protection GridSoft-Boost Protection Grid
