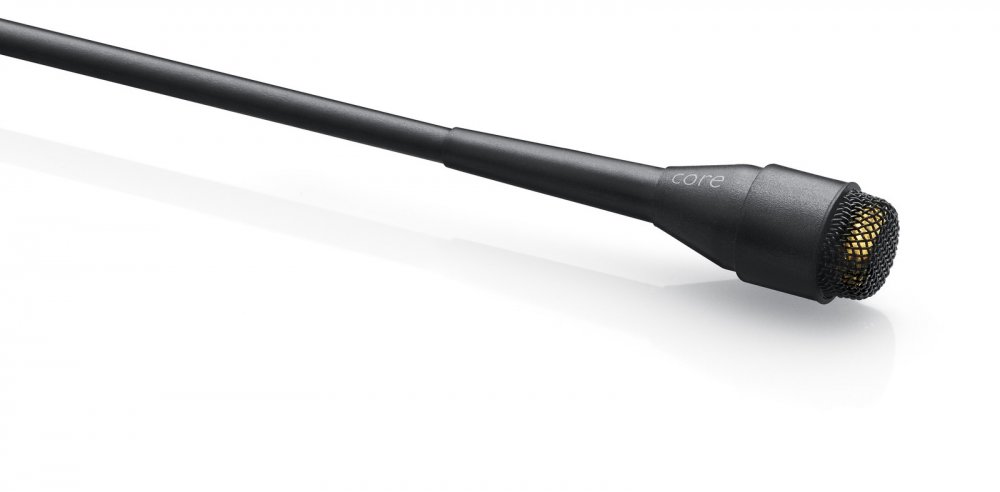

d:screet Core 4063 Miniature Omnidirectional Microphone with Mini Jack Connector, Loud SPL & Low DC, Black

The 4063-OC-C-B00 is designed to capture loud sound sources and for use with transmitters giving only 3V bias voltage. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage and instrument applications as well.

The d:screet Core 4063 includes interchangeable capsule protection grids that alter the signal character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence.

With an SPL rating of 138 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4063 can be powered via +48V phantom power and features a Mini Jack output connector, compatible with various wireless microphone transmitters, adapters or power supplies with standard XLR outputs.

Features

  • For Stage and Television
  • Hardwired MicroDot Connector
  • Loud SPL and Low DC
  • Core Increases Mic Performance by 12 dB
  • Rugged and reliable
  • Natural audio quality
  • Low-noise and high sensitivity
  • Large selection of accessories
  • Specifications

    Directional pattern: Omnidirectional
    Principle of operation: Pressure
    Cartridge type: Pre-polarized condenser
    Frequency range: 20 Hz - 20 kHz
    Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
    Sensitivity, nominal, ±3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A))
    Equivalent noise level, ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)
    Total harmonic distortion (THD) - CORE < 1% THD: 136 dB SPL RMS, 139 dB SPL peak
    Dynamic range - CORE: Typ. 106 dB
    Max. SPL, peak before clipping: 154 dB
    Output impedance: 30 - 40
    Cable drive capability: Up to 300 m (984 ft)
    Power supply (for full performance) For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
    Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    Connector: Mini Jack
    Color: Black
    Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
    Microphone diameter: 5.4 mm (0.21 in)
    Microphone length: 12.7 mm (0.5 in)
    Cable length: 1.8 m (5.9 ft)
    Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH): Up to 90%

    In the Box:
  • DPA Microphones d:screet Core 4063 Miniature Omni Microphone with Mini Jack Connector, Loud SPL and Low DC, Black
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
