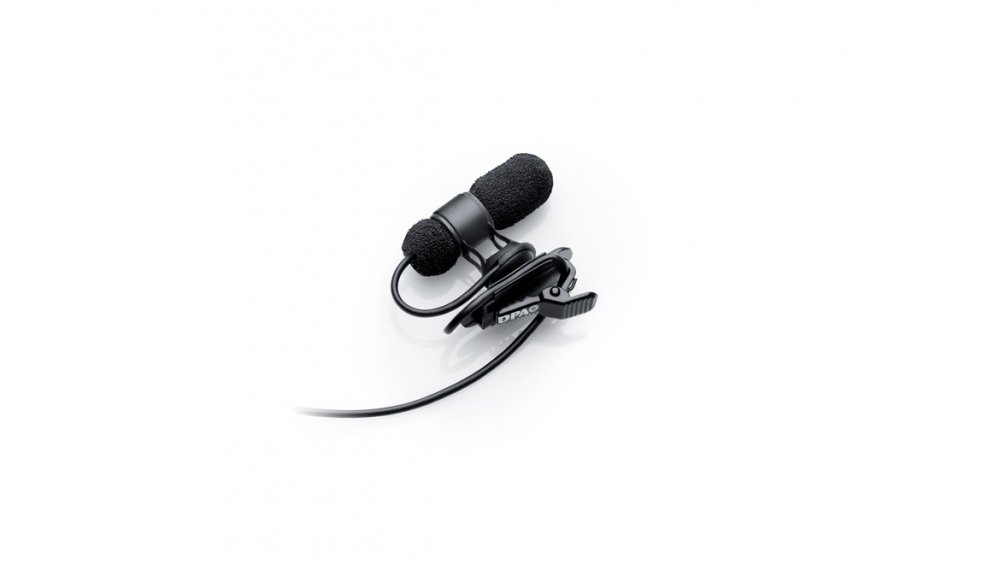

DPA Microphones d:screet mini 4080 Miniature Cardioid Lavalier Microphone with a Hardwired 3-Pin LEMO Connector for Sennheiser Wireless Systems (Black)
The 4080-DL-D-B03 Miniature Cardioid Lavalier Microphone with a Hardwired 3-Pin LEMO Connector for Sennheiser Wireless Systems from DPA Microphones is designed for speech reproduction in broadcast, conference, and live applications in the studio or the field. It features a pre-EQ'd 4dB presence boost to help accentuate vocals and the speaking range. The 4080 can be clipped to both left- and right-buttoned shirts and includes black and white pop filters.
Excellent speech reproductionDiscreet, compact designFits both left and right buttoned shirtsDelivered with both black and white pop filtersModular adapter system fits most professional wireless systemsPre-EQ'd 4dB Presence Boost
Directional characteristics: CardioidPrinciple of operation: Pressure gradientCartridge type: Pre-polarized condenser element with vertical diaphragmFrequency range, ± 2 dB: 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)Sensitivity, nominal, ±3 dB at 1 kHz:: 20 mV/Pa; -34 dB re. 1 V/PaEquivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)Total harmonic distortion (THD): < 1 % up to 123 dB SPL peak, < 1 % up to 120 dB SPL RMS sineDynamic range: Typ. 100 dBMax. SPL, peak before clipping: 134 dBOutput impedance: 30 - 40 ohmPower supply: For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.Connector: Hardwired 3-Pin LemoColor: BlackMicrophone weight: 15 g (0.5 oz) incl. cable and MicroDot connectorMicrophone diameter: 10 mm (0.4 in)Capsule diameter: 5.4 mm (0.2 in)Microphone length: 30 mm (1.2 in)Cable length: 1.2 m (4 ft)Cable color: BlackCable diameter: 1.6 mm (0.06 in)Cable drive capability: Up to 300 m (984 ft)Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
In the Box
DPA Microphones d:screet mini 4080 Miniature Cardioid Lavalier Microphone with a Hardwired 3-Pin LEMO Connector for Sennheiser Wireless Systems, Black colorBlack Pop FilterWhite Pop Filter
