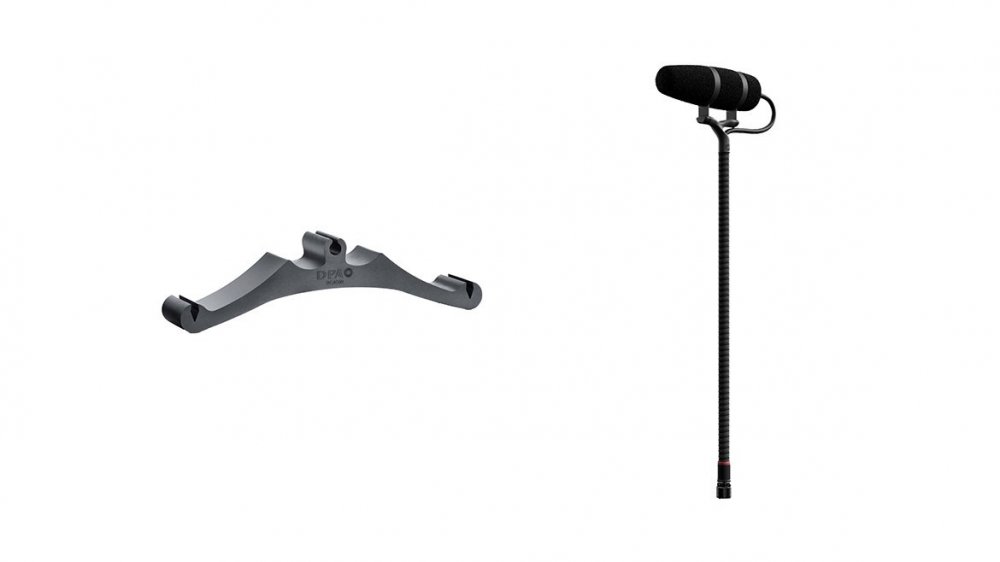

Next-generation, high-performance instrument microphone featuring CORE+ technology, delivering
pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live
or studio setting. Fitted with MicroLock and a series of upgraded instrument clips for even better
stability and flexibility on any type of instrument.
Caractéristiques
CORE+ technology
High SPL handling
Wide dynamic range
Supercardioid pick up pattern
Superior gain before feedback
MicroLock connector
IP58 certified
Advanced, flexible clip program
Spécifications
General Specifications
? Directional pattern: Supercardioid
? Principle of operation: Pressure gradient
? Cartridge type: Pre-polarized condenser
? Colors: Black
Frequency Response
? Frequency response: 20 Hz " 20 kHz
? Effective frequency range (±2 dB at 20 cm / 7.9 in): 80 Hz " 17 kHz with 2 dB soft boost at 10"12 kHz
Distortion & Sound Pressure Level
? Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
? Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
? Max. SPL, THD 10%: 145 dB SPL peak
? Dynamic range: Typ. 118 dB
Electrical Specifications
? Rated output impedance: 30 " 40 ? (MicroLock), 100 ? (DAD9099 or DAD9001)
? Cable drive capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
? Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter
? Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR
Adapter
? Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
Power Requirements
? Power supply (for full performance): 5 V " 10 V through DPA adapter (wireless), P48 or 12 V via DAD9001 or DAD9099
? Current consumption: Typ. 1.5 mA (microphone), 3.5 mA with DAD9099 or DAD9001 XLR Adapter
Mechanical Specifications
? Connector: MicroLock
? Microphone diameter: 5.7 mm (0.22 in)
? Microphone length: 50 mm (1.97 in)
? Cable length: 1.8 m (5.9 ft) (not included with 4099-DP-1 and 4099-DP-2)
? Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
? Gooseneck length: 140 mm (5.5 in)
Environmental Specifications
? Operating temperature range: -40C to 45C (-40F to 113F)
? Relative humidity (RH): Up to 90%
Weight
? Microphone: 18 g (0.63 oz)
? Microphone Clip for Accordion (A-CLIP): 5 g (0.18 oz)
? Clamp Mount Microphone Clip (CM-CLIP): 16 g (0.56 oz)
? Microphone Stand Clip (MS-CLIP): 24 g (0.85 oz)
? Microphone Clip for Piano (P-CLIP): 20 g (0.71 oz)
? Universal Microphone Clip (U-CLIP): 15 g (0.53 oz)
? Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz)
? Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz)
? Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)
? Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)
? Microphone Clip for Cello (C-CLIP): 18 g (0.63 oz)
