DPA 4099-DP-2-201-D
MPN #4099-DP-2-201-D

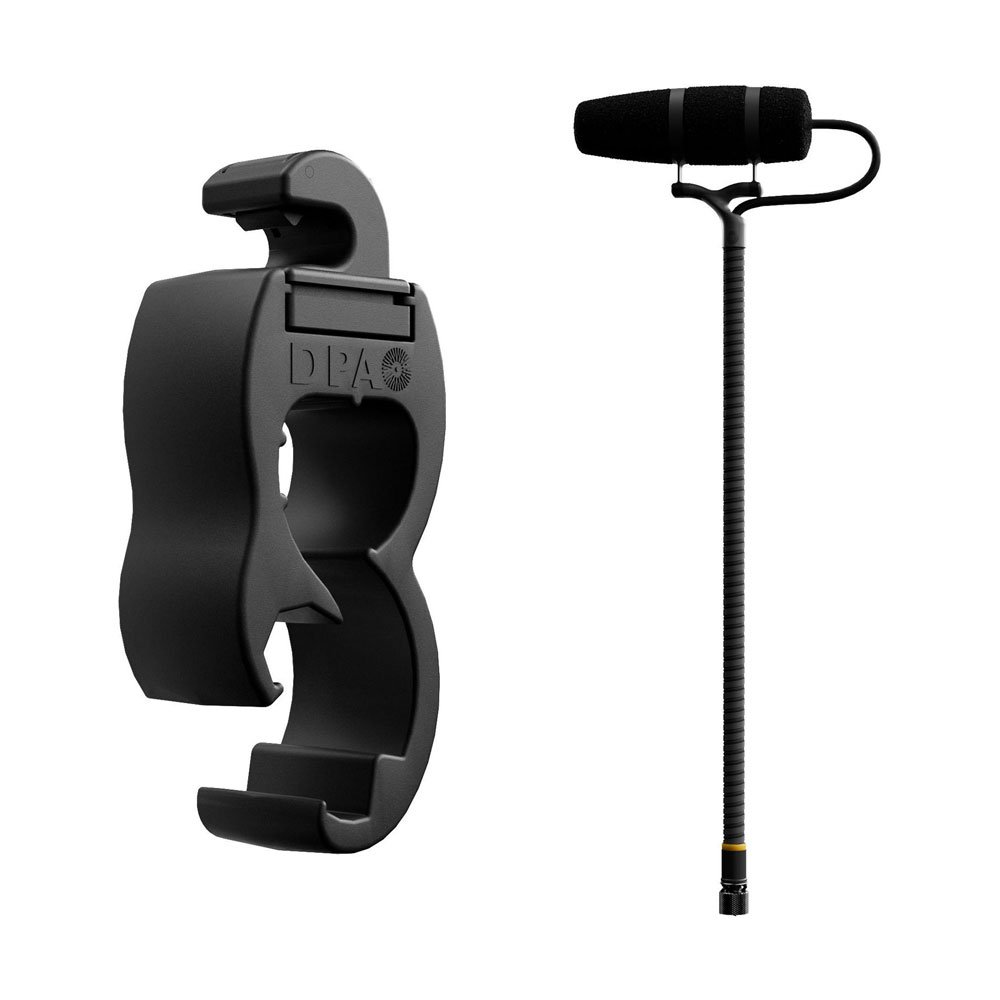

CORE plus mic for drums, extreme SPL handling up to 152 dB peak, supercardioid pickup, MicroLock connector, shock mount, clip for drum mounting, black finish.
The DPA 4099-DP-2-201-D CORE+ Microphone for drums is designed to capture the full power and nuance of percussion instruments with clarity and precision. Tailored for extreme SPL handling, it delivers distortion-free performance even at very high volume levels, making it ideal for close-miking snare drums, toms, and other percussive elements in live or studio settings.
Outfitted with DPA's advanced CORE+ technology, this microphone ensures a wide dynamic range and natural sound reproduction, while its supercardioid polar pattern offers excellent isolation from nearby instruments. The included drum clip and flexible gooseneck allow for secure, precise placement on a variety of drums, giving performers and engineers consistent, professional-grade audio with minimal setup effort.
Features
Designed specifically for close-miking drums and loud percussion instruments
Handles extremely high sound levels with clarity (up to 152 dB SPL peak)
CORE+ technology ensures detailed, undistorted sound capture
Supercardioid pickup pattern provides excellent isolation from stage bleed
Comes with a secure, vibration-resistant drum clip for easy and stable mounting
MicroLock connector and rugged gooseneck ensure precise positioning and reliable performance
Ideal for both live sound and studio recording of high-impact instruments
Specifications
Microphone Type
Prepolarized condenserPressure gradient principle
Polar Pattern
Supercardioid
Frequency Response
20 Hz to 20 kHzEffective range +/-2 dB at 20 cm: 80 Hz to 17 kHz with 2 dB soft boost at 10 to 12 kHz
Sensitivity
6 mV per PaMinus 44 dB re 1 V per PaSensitivity selection tolerance +/-1 dB at 1 kHz
Equivalent Noise Level
Typical 23 dBAMaximum 26 dBA
Distortion THD
<0.5 percent: 135 dB SPL RMS, 138 dB SPL peak<1 percent: 138 dB SPL RMS, 141 dB SPL peakMax SPL (THD 10 percent): 145 dB SPL peakMax SPL (peak before clipping): 152 dB SPL
Dynamic Range
Typical 118 dB
Output Impedance
MicroLock: 30 to 40 ohmWith XLR Adapter DAD9099 or DAD9001: 100 ohm
Cable Drive Capability
Up to 300 meters with DAD9001 or DAD9099
Output Balance Principle
Signal balanced with XLR adapter
Common Mode Rejection Ratio
Greater than 60 dB from 50 Hz to 15 kHz
Power Requirements
Wireless: 5 to 10 V via DPA adapterWired: P48 phantom power, will function from 12 V
Current Consumption
1.5 mA for microphone3.5 mA with XLR adapter
Connector
MicroLock
Dimensions
Microphone diameter: 5.7 mmMicrophone length: 50 mmGooseneck length: 140 mmCable length: 1.8 metersCable diameter: 1.6 mm and 2.2 mm
Weight
Microphone: 18 g
Clip Included
Clip for drum (code DP22D)
Environmental Conditions
Temperature range: minus 40 to 45 CelsiusRelative humidity: up to 90 percent
Polarity
Positive voltage at MicroLock pin for positive sound pressure
Technology and Design
CORE Plus technologyYellow marking on gooseneck for Extreme SPLIP58 certifiedEnhanced shock mount and gooseneck mountDetachable cable with MicroLock connectorDesigned specifically for drums and very loud instruments
