d:fine CORE 6066 Omni Headset Mic. Black, MicroDot termination, no adapter included.
The capsule of the d:fine CORE 6066 Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability - three qualities that truly matter. By shrinking our newly introduced CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

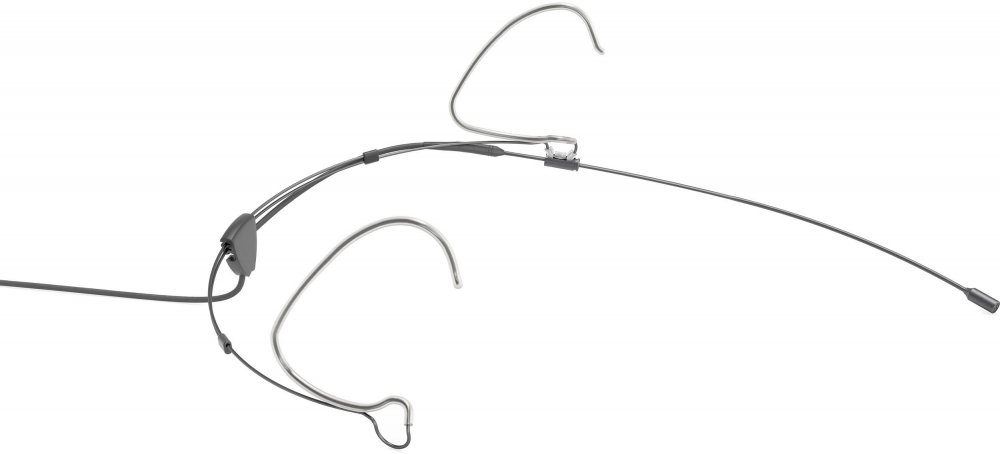

Beyond this minimized size and maximized sound potential, these mics also sport a completely redesigned, lightweight, one-size-fits-all headset that attaches over the ears for maximum comfort. 3-point ear grips with spring mechanisms help grip below the ears and to the side of the head for added security. A 2-way adjustable boom system (length and height) with an anti-rotate mechanism makes this new headset very easy to fit. A new 90° cable management system safeguards the cable and directs it down the wearer's back, where it can't be seen.
Between the sound quality and the comfort, once you try it we're sure you'll never want to wear another headset mic solution.
Amazing 3 mm CORE by DPA capsules technologyRenowned DPA sound in a 60% smaller capsuleOne-size-fits-all, headset fits securely and comfortably2-way adjustable, non-reflective boom with locking systemUnique, comfortable 3-point gripping system above, below and behind the earNew 90° cable management constructed to guide the cable and minimize cable breaks
Directional pattern: Omnidirectional
Principle of operation: Pressure
Principle of operation: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 Pa (max. 28 dB(A))
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
Total harmonic distortion (THD): < 1% up to 128 dB SPL peak
Dynamic range: Typ. 102 dB
Max. SPL, peak before clipping: 144 dB
Output impedance: From MicroDot: 30 - 40 . From DAD6001-BC: 100
Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
Weight: 8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d): 3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter: 3.4 / 14.4 mm (0.13 / 0.57 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Manufacturer Part Number : 6066-OC-R-B00
