DPA SCO60XZZ-S

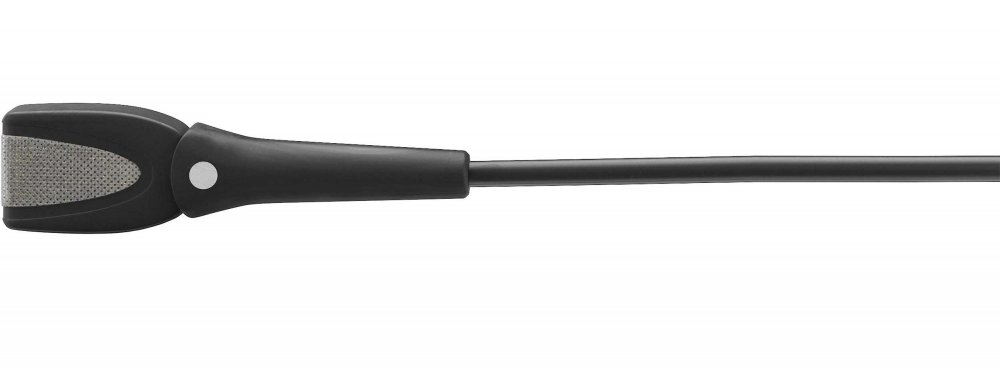

If you need to couple complete invisibility with amazing sound, the d:screet Slim 4060 Omnidirectional Microphone, is exactly what you are looking for. With Termination Plug.
This mic is perfect for your film assignment or for any other situation where you need a completely hidden microphone. The d:screet? Slim 4060 Omnidirectional Microphone is flat and short with a cable that runs perpendicular to the sound inlet, ensuring easy mounting and a tiny footprint. When used with the detachable Button-Hole Mount or Concealer, it becomes completely invisible. With sound on par with DPA's classic d:screet? Omnidirectional Miniature Microphones, you can be sure that the d:screet? Slim will not disappoint.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine?, d:screet? and d:vote? series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Colors:
Black: SCO60B00-SBrown: SCO60C00-SBeige: SCO60F00-SWhite: SCO60W00-S
Terminations:
3-pin Lemo: SCO60X03-STA4F Mini XLR: SCO60X10-SMini-Jack: SCO60X34-S
Features
Pristine audio qualityCompletely invisible when used with Button-Hole Mount or ConcealerAdapts to all pro wireless systems
Specifications
Directional pattern: OmnidirectionalPrinciple of operation: PressureCartridge type: Pre-polarized condenserFrequency range: 20 Hz - 20 kHzFrequency range, ±2 dB: 20 Hz - 20 kHz, 3 dB soft boost at 5 - 20 kHzButton-hole mount: 20 Hz - 18 kHz, 5 dB soft boost at 5 - 18 kHzSensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/PaEquivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)Total harmonic distortion (THD): < 1% up to 123 dB SPL peak, < 1% up to 120 dB SPL RMS sineDynamic range: Typ. 100 dBMax. SPL, peak before clipping: 134 dBOutput impedance: From MicroDot: 30 - 40 . From DAD6001: 100Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR AdapterOutput balance principle: Signal balanced with DAD6001-BC XLR AdapterCommon mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR AdapterPower supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems, 48 V phantom power ±4 V with DAD6001 XLR adapterCurrent consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR AdapterConnector: MicroDotColor: Black, beige, brown or whiteWeight: 8.5 g (0.3 oz) incl. Cable and MicroDot connectorCable length: 1.8 m (5.9 ft)Cable color: Black, beige or brownCable diameter: 1.6 mm (0.06 in)Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)Temperature range: -40°C to 45°C (-40°F to 113°F)Relative humidity (RH): Up to 90%
