HomepageMicrophonesLavaliers & Headsets › DPA SMK-SC4060

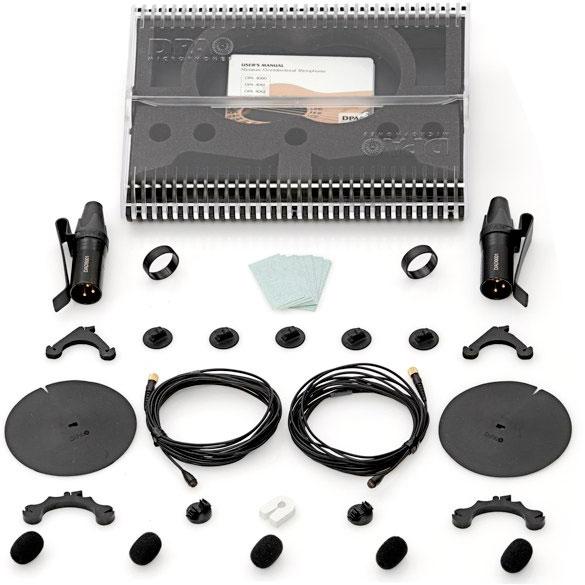

This d:screet™ Stereo Microphone Kit is a cost-effective and flexible stereo recording solution aimed at project studios and for discreet mic setup on stage.

It combines two d:screet™ SC4060 Omnidirectional Miniature Microphones, Hi-Sens, with a variety of mounting accessories. These include the BLM6000 Boundary Layer Mount, which can be used in conjunction with our d:screet™ 4060, 4061, 4062 and 4063 Miniature Microphones to place on a reflective boundary such as a floor, wall, ceiling, piano lid etc. This enables the mics to capture the ambient sound of the area. The sound captured from this "pressure zone" has higher sensitivity, clarity and intelligibility compared to the sound captured from the "free air". This solution serves as a kind of acoustical zoom.

There are many accessories included in the kit. One of them is the DMM0007 Universal Surface Mount. This mount allows all kinds of instruments, from acoustic guitar through grand piano and drums, to be mounted in the best-sounding position. The mount uses special non-marking adhesive discs for attachment.

The d:screet™ Stereo Microphone Kit is also available with d:screet™ SC4061 Miniature Omnidirectional Microphones, Lo-Sens.

Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.

The d:fine™, d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ± 2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz, High boost grid: 20 Hz - 20 kHz ±2 dB, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • Equiv. noise level ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 71 dB(A
  • Total harmonic distortion (THD): <1% THD up to 123 dB SPL peak
  • Dynamic range: Typ. 100 dB
  • Max. SPL, peak before clipping: 134 dB
  • Output impedance: 30 - 40 Ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Power supply: For wireless systems: Min. 5 V - max. 50 V through DPA adapter; with DAD6001: 48 V phantom power ±4 V.
  • Connector: MicroDot
  • Weight: 7.5 g (0.26 oz) incl. cable and MicroDot connector
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 3 m (9.4 ft)
  • Sensitivity selection tolerance (at 1 kHz): ± 1.5 dB
  • Reviews
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the SMK-SC4060, please visit the website of DPA
