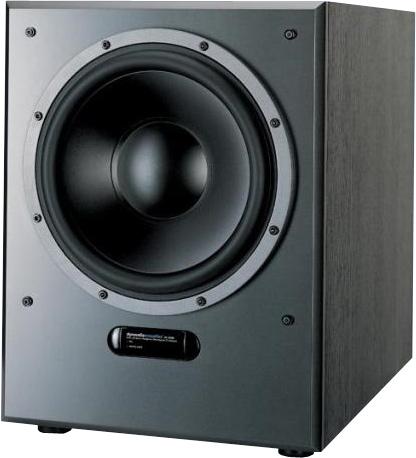

The Dynaudio AIR Base 12 is a recent addition to the AIR series, and with a total frequency response of 22 Hz - 200 Hz and 500 watts of amplification, this subwoofer delivers a clear and crisp punch to the bottom.

The subwoofer sports a new class D amp developed at the TC Electronic laboratories, which will assure "top of the line" quality and an abundance of power and reliability. On top of that the AIR Base 12 comes with a new 12" woofer that was specifically designed for low frequency reproduction and extremely tight impulse response.

AIR Base 12 is a compact and dedicated AIR series active subwoofer. Intended for smaller and medium size rooms, AIR Base 12 offers the high performance that has become the trademark of Dynaudio Acoustics' AIR Series. Use one AIR Base 12 with e.g. AIR 6 or 15 in smaller rooms, or link several Base 12's in bigger rooms with e.g. AIR 20 or 25 and increase the acoustic output with each additional unit.

Through the TC Link (proprietary AIR network) AIR Base 12 integrates with AIR series monitors and delivers unique features such as advanced bass management and a wealth of other tweaking possibilities. This subwoofer will be an ideal complement for both stereo and multichannel setups like:

Editing suites.

Post Production facilities.

Music recording and mixing studios.

Larger OB vans.

DVD authoring and mastering.

Stereo and Multichannel production.

Combining technology from Dynaudio and TC, AIR Base 12 offers ultimate precision and total integration with AIR Series. AIR Base subwoofers can be used only with AIR Series monitors.

New class D amp with TC technology

New 12" woofers specially designed for AIR Base 12 & 24

192 kHz support via Dual Wire

Networking in-between all AIR components

Central and remote control of system and parameters

Acoustic placement compensation

Preset storage and recall, and programmable reference levels

Integrated parametric EQs and delay in each monitor (PC-IP only)

Advanced Bass Management

Level alignment in 0,1dB steps

All monitors aligned within +/- 0.2dB precision

Direct Digital inputs and Analog inputs (optional)

500-watt amp package

Supporting multichannel setups

Model
AIR Base 12


Model:
AIR Base 12




System:
Active Subwoofer



Total frequency response:

22 Hz - 200 Hz +/- 3 dB, dep. on setting



Max. SPL 1m, one (IEC Short Term)
123dB peak




Max. SPL 2m, 5.1 (IEC Short Term)
117 dB peak



Precision of monitor matching:
+/- 0.2 dB




Port tuning frequency:
24 Hz



Internal cabinet volume:

41 liters



Bass principle:
Bass reflex. Downfiring port




Woofer:
1 pcs. 300 mm/12", two-piece molded polyprop cone, 75 mm/3" pure copper voice coil



Mains voltage:
100 to 240 VAC, 50 to 60 Hz (select)




Power consumption:
Idle: 50 W/Max: 375 W



Finish





Amp:
Black painted metal back plate




Cabinet:
Black ash with dark gray MDF baffle



Dimensions (H x W x D):
460 x 360 x 502mm (18.1 x 14.2 x 19.7)
Depth incl. amp and driver: 550 mm (not moving)
Height incl. "feet": 738




Weight:
38 kg (83.8 lbs)



Amplifier:

500 W amp



Room & Distance
-




Typical room size
50-125 m3 / 1600-4400 ft3



System sample rates

-



Internal sample rate
192 and 176.4 via Dual Wire (optional Digital Card required) and 96, 88.2, 64, 48, 44.1 or 32 kHz




AIR Masters only
-



I/O Connectors
XLR (2 channels AES/EBU in) 3 x RJ 45 proprietary TC Link




Formats
AES/EBU (24 bit)



Word clock input

BNC, 75ohm, 0.6-10 Vpp



Display
2 x 16 character dot matrix




Operation
Menu system / Four buttons



Analog Input options
-




Input connectors
XLR balanced (pin 2+, pin 3-)



Impedance

10/3 k ohm (Balanced/unbalanced)



Selectable Full scale Input level
+9, +15, +21, +27 dBu




Dynamic range
> 113 dB typ. (unweighted), BW: 20-20 kHz



THD+N
