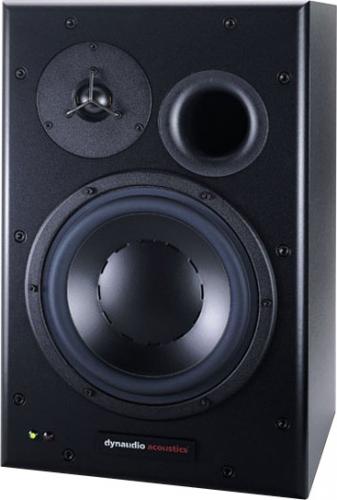

The BM15A monitor is front ported for powerful and extended low frequency response and the elegant matte cabinet has radius edges on the front baffle to reduce boundary effects.
The BM15A is a relatively large 2-way active system comprising of a large 240mm (10") woofer, a special version of the Dynaudio ESOTEC soft dome tweeter and an electronic phase-aligned crossover, which feeds the build-in dual, high performance discrete MOSFET amplifiers.
The ESOTEC HF has a dynamic headroom of 1000W, and the 240mm (10") bass driver is world-renowned for its 100mm (4") aluminium alloy voice coil.
The BM15A monitor is front ported for powerful and extended low frequency response, and the elegant matte cabinet has radius edges on the front baffle to reduce boundary effects and improve the overall sound quality.
Dual, high performance discrete MOSFET amplifiersPhase-aligned crossoverHandcrafted drivers with aluminum voice coilsMade in Denmark
High-resolution 1.1" soft dome tweeter, pure aluminum voice coil10" woofer, 4" pure aluminum voice coil2 channel high grade 100/200Watt RMS amplifiers124dB max. SPLFrequency response of 40Hz to 22kHzHF & LF analog trim filters
2-way Active Nearfield Monitor
Frequency Response ( /- 3 dB) :
30 Hz - 21 kHz
Max SPL 1m, pair (IEC Long Term) :
124 dB RMS
Max SPL 2m, 5.1 (IEC Long Term) :
125,5 dB RMS
Input level for 85 dB SPL @ 1m ( 4/-10) :
-18 dBu RMS / -34 dBu RMS
Input level for max peak SPL ( 4/-10) :
16 dBu peak / -1 dBu peak
Power consumption :
Idle: 40 W / Max: 300 W
Amplifier power :
Tweeter: 100 W / Woofer: 200 W
Resonance Frequency :
Internal Cabinet Volume :
Bass Principle :
Crossover Frequencies :
Crossover Slope :
Esotec 28 mm soft dome, rear chamber, Magnetic fluid. 4 mm die-cast alu front,
24 cm, One-piece molded polypropylene cone, 100 mm pure alu wire voice coil
Dimensions (WxHxL) :
290 x 454 x 388 mm
August 31, 2017
Just a classic (amazing) Nearfield monitor, nothing more to say!
