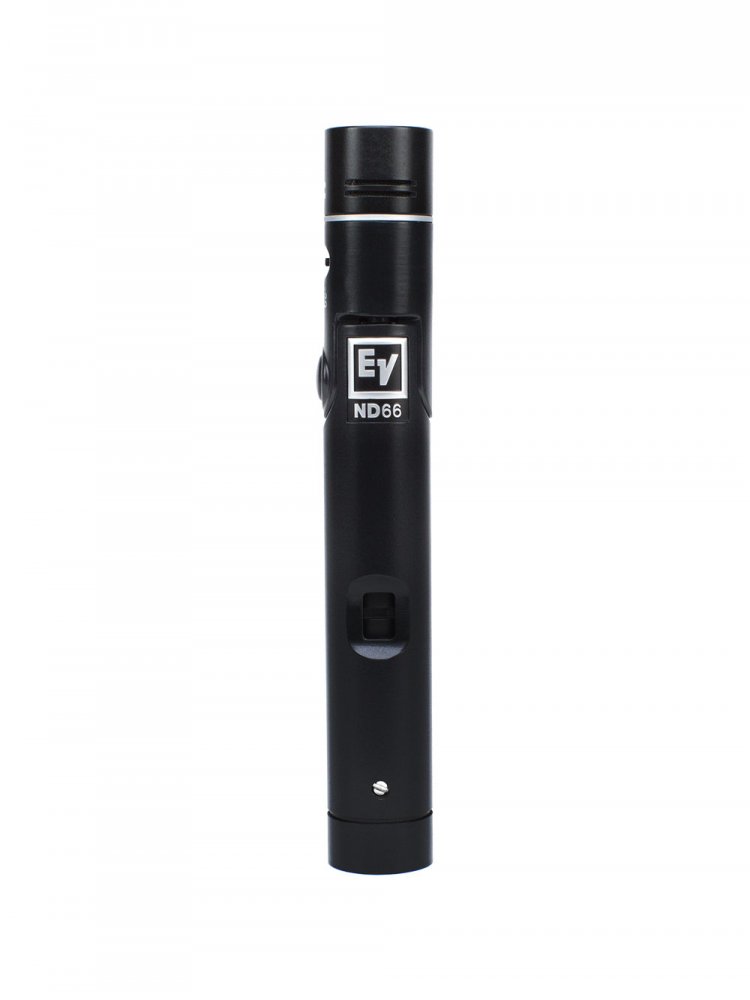

Electro Voice ND66
MPN #ND66
$299.00
Save 15.8%, MSRP $355.00
Cardioid condenser, 50-20 kHz, pivoting head, -10/-20 dB pads, 75/150 Hz HPF, 146dB SPL, crisp detail for strings and percussion, 48V phantom
The ND66 is a premium small-diaphragm condenser microphone designed for capturing the intricate details of percussive and stringed instruments. Its self-biased condenser element delivers a clean, crisp, and highly responsive sound, ideal for instruments requiring fast transient capture and fine articulation.
Built for precise mic placement, the ND66 features a locking pivoting head-just push, rotate, and release to lock it in position. It also includes -10 dB and -20 dB pads to prevent overload on high-volume sources, and selectable high-pass filters at 75 Hz and 150 Hz to eliminate unwanted low-frequency rumble. Housed in a durable die-cast zinc body, this microphone balances studio-level performance with rugged field reliability.
Features
Crisp, Detailed Condenser Sound: Ideal for percussive and stringed instruments, delivering clean, accurate audio with high transient detail.Premium Small-Diaphragm Condenser Element: Vividly responsive to subtle and dynamic nuances in complex sound sources.Locking Pivoting Head: Push-button design allows for fast and secure mic placement in any orientation.Selectable Pad Settings: Switchable -10 dB and -20 dB pads prevent overload from high-volume sources.Dual High-Pass Filters: Selectable 75 Hz and 150 Hz filters remove unwanted low-frequency noise and rumble.Cardioid Polar Pattern: Focuses on the sound source while reducing off-axis background noise.Handles High SPL (146 dB): Perfect for drums and loud instruments without distortion.Compact and Lightweight: Slim profile and light weight for easy mounting and positioning.Rugged Build Quality: Die-cast zinc construction with a durable black polyurethane finish.
Specifications
General Specifications
Microphone Type: CondenserApplication: Instrument (percussive and stringed instruments)Polar Pattern: CardioidWired/Wireless: WiredSeries: ND SeriesConnector Type: 3-pin XLRPower Requirement: 48 VDC phantom power
Acoustic & Electrical Performance
Frequency Response: 50 Hz - 20,000 HzMaximum SPL: 146 dBOpen Circuit Voltage: 10 mV/PaImpedance: 200 ohms (Low-Z balanced)Element Type: Self-biased small-diaphragm condenser
Features
Pads: Selectable -10 dB and -20 dB attenuation padsHigh-Pass Filters: Selectable 75 Hz and 150 Hz HPFPivoting Head: Locking rotating head for precise mic positioning
Design & Construction
Housing Material: Die-cast zincFinish: Black polyurethane paint
Physical Dimensions
Height: 5.63 in (143 mm)Diameter: 0.83 in (21 mm)Net Weight: 6.31 oz (179 g)Shipping Weight: 16.4 oz (465 g)
