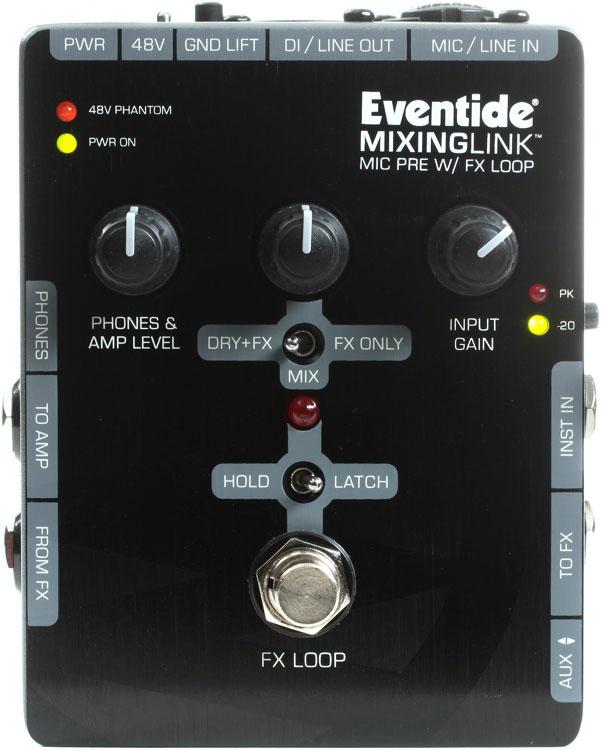

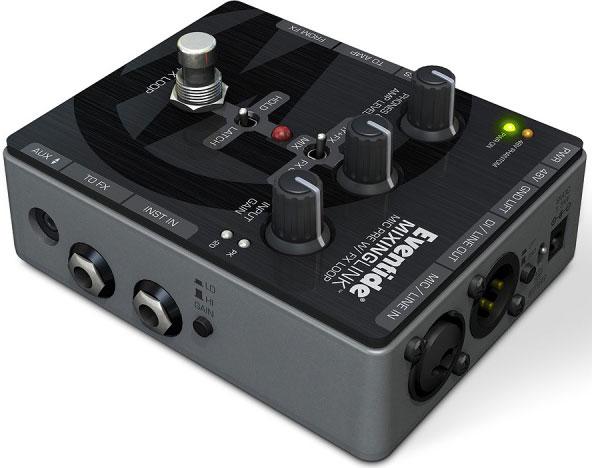

Eventide MixingLink

Eventide's high quality mic pre with FX loop in a compact form factor.

A stompbox size audio toolkit for on stage, in studio and everywhere in between. Includes a quiet high gain mic-pre, 48V phantom power and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc) , signal splitting and combining, complete re-amp setup, impedance and gain matching, mixing and more.
Features
  • FX loop send and return supports balanced and unbalanced signals - interfaces with consoles or guitar pedals easily
  • Latching or momentary footswitch control of FX loop for performance effects
  • Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
  • Aux I/O connection supporting stereo input and send
  • Guitar amp output and headphone monitor output with separate master volume control
  • International universal power supply included
  • Operates on 9V battery (no phantom power when operating on a battery)
  • 48V phantom power for condenser mics
  • Balanced XLR output which supports DI and line levels
  • Instrument and balanced line level inputs

  • Versatile mix control supports 3 modes
  • 100% Dry w/FX blended in
  • Mic/FX balance control
  • 100% FX (no Dry)
  • Specifications
    Analog Input (MAX Input Levels, Input Impedance)
    INST IN: +10dBu, 500k
    1/4" Line IN: +24dBu, 22k
    XLR Mic IN: +4dBu, 2k
    FROM FX: +10dB, 200k
    AUX IN: +4dBu, 5.0k

    Analog Output (MAX Output Levels, Output Impedance)
    TO FX: +10dBu, 400
    TO AMP: +10dBu, 250
    PHONES: 150mW per channel, min Load = 8 Ohms
    DI/LINE OUT: (DI) -10dBu, (LINE) +18dBu, 200
    AUX OUT: 18mV, 200 (mobile mic level)

    Physical
    Power Supply
  • 9 VDC, 500 ma, center pin (-)
  • Min. required current at 9VDC = 200mA

  • Dimensions
  • English: 3.6" (H) x 2.65" (W) x 1.5" (D)
  • Metric: 91(H) x 67(W) x 38(D) mm

  • Weight .96 lb / .43 kg
    Reviews
    Price

    $399.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the MixingLink, please visit the website of Eventide
