Grace Design m102

The Grace Design m102 Optical Compressor takes the sonic performance characteristics from the compressor section of the Grace Design m103 Channel Strip.

The unit is based on an optical attenuator, the purest high fidelity gain control mechanism available, and provides gentle limiting to fairly aggressive compression while remaining neutral and transparent.

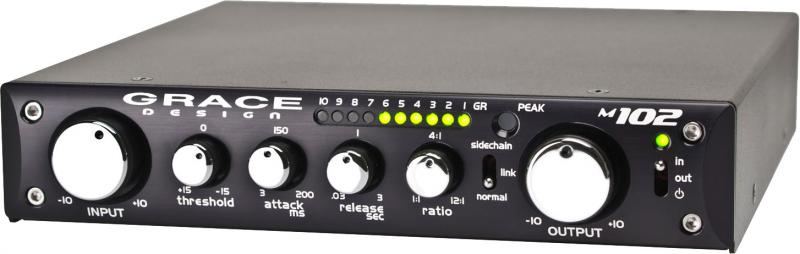

Housed in a 1U, half-rack enclosure, the single channel m102 sports a familiar and elegant industrial design that was derived from the Grace Design m101 Microphone Preamp. Front panel controls include +/- 10dB of input and output level on rotary pots that allows for fine tuning of gain settings. Four additional pots allow the user to control Threshold, Attack, Release and Ratio settings. A three position switch selects Normal operation and the added ability to Link two m102 units for stereo compression or to select a Sidechain input for frequency dependent compression. A 10 segment LED array displays gain reduction levels, and a bi-color LED is provided for signal presence and peak detection. The rear panel includes an AC inlet for the built in universal power supply, XLR and ¼" TRS balanced input and output connections, and a ¼" jack used for linking two m102's or for use as a side-chain input.
Features
  • Elegantly simple, purist feedback design optical compressor, optimized for signal leveling with a minimum of sonic artifacts
  • From subtle dynamic control to heavy compression, the sonic character of the source remains intact
  • Comprehensive control set includes input level, threshhold, attack, release, ratio and makeup gain
  • Bright, easy to read 10 segment LED gain reduction meters
  • Bi-color output peak LED lights green with signal present and red 8dB before clipping
  • (m102) dual balanced inputs and outputs on XLR and 1/4" TRS
  • Precision audio path with 0.5% precision metal film resistors
  • Bombproof laser-etched black anodized frontpanel
  • (m102) Built in universal power supply
  • Specifications
    GAIN RANGE
    Input Trim : -10 - +10dB
    Output Trim : -10 - +10dB

    Compression
    Threshold Range : -15 - +15 dBu
    Attack Range : 3 - 200 ms
    Release Range : 0.03 - 3 s
    Ratio Range : 1:1 - 12:1
    Gain Reduction : 0 - 20dB

    THD+N 1kHz, 22Hz-22kHz BW
    @ 0dB Gain +10dBu out : <0.002%

    INTERMODULATION DISTORTION
    @ 0dB Gain +20dBu out:
    SMPTE/DIN 4:1 7kHz/50Hz : <0.002%

    OUTPUT NOISE 22Hz-22kHz BW
    @0dB Gain : <-78dB

    CMRR @0dB Gain, 3.5Vcm
    100Hz : >75dB
    1kHz : >75dB
    10kHz : >75dB

    FREQUENCY RESPONSE
    @0dB Gain -3dB : 0.016Hz-150kHz

    IMPEDANCE
    Line In : 24k
    Main Out balanced : 350
    Main Out unbalanced : 150
    Link In - sidechain mode : 100k

    LEVEL METERS
    Output Peak Indicator : Green: -15dBu; Red: +20dBu
    Gain Reduction Meter : 0-10dB Gain Reduction

    MAXIMUM OUTPUT LEVEL
    (m102) 100k Ohm load, 0.1% THD : +28dBu
    (m502) 100k Ohm load, 0.1% THD , 1kHz, API Lunchbox : +27dBu

    WEIGHT and DIMENSIONS
    (m102) 2.4 lbs : H1.7" x W8.5" x D9.0"

    POWER CONSUMPTION
    (m102) 100-240VAC : 5 Watts Max
    (m502) Current required from +16V and -16V power supplies : 120mA Max
    Reviews
    Price *

    $1090.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the m102, please visit the website of Grace Design
