MPN #Bison 500

$1158.00

Financing available
Free shipping in Canada. Conditions

Mid/side processor with a dry/wet mixer in a 500-series module



This machine will turn your favourite dual mono compressor into a parallel, Mid/Side compressor.

Overview

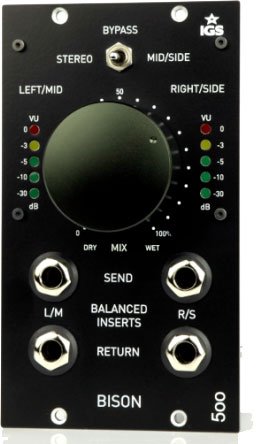

The IGS Bison 500 is a simple mid/side processor with a dry/wet mixer. It can be plugged into any 500 series rack equipped with a standard power supply. It has two stereo jack connectors (2 sends and 2 returns) on the front panel of the device used for plugging in your favorite dual mono or two mono compressors.

Mid/Side
With a flick of the switch your compressor(s) start working in Mid/Side mode, where the left channel controls the common/Mid section of the two channels and the right channel controls the difference between the channels referred to as Side. Adding more sides or compressing them differently can increase your stereo image significantly.

Parallel
The dry/wet knob can be very useful for parallel mixing. It is great for situations, where you want to pump up the sound without losing the natural dynamics of the dry mix.
INPUT & OUTPUT
Input Impedance (balanced) : 10k Ohm
Output Impedance (balanced) : 50 Ohm

LEVELS
Operating Level : +4 dBu
Max input level : +18 dBu
Max output level : +22 dBu
Dynamic Range : 98 dBA (@ 1 kHz, +18 dBu)

BANDWIDTH
Frequency response : 10 Hz to 30 kHz (+0.1 dB / -0.2 dB)

DISTORTION (@ 20 HZ - 20 KHZ)
Signal to Noise Ratio : 81 dBA (@ 20 Hz - 20 kHz)
THD+N : 0.003% @ (@ 20 Hz - 20 kHz)
IMD (SMPTE) : 0.005 % (@ 20 Hz - 20 kHz)
Crosstalk : 78 dB (@ 20 Hz - 20 kHz)

FRONT PANEL
VU Meters : Yes, 5 LED Bar Display

POWER
Power consumption : 8W

PACKING BOX
Shipping weight : 3 kg
