MPN #ONELA500

$1042.00

Financing available
Free shipping in Canada. Conditions

Classic LA2A in your 500 series rack



Two knobs of happiness

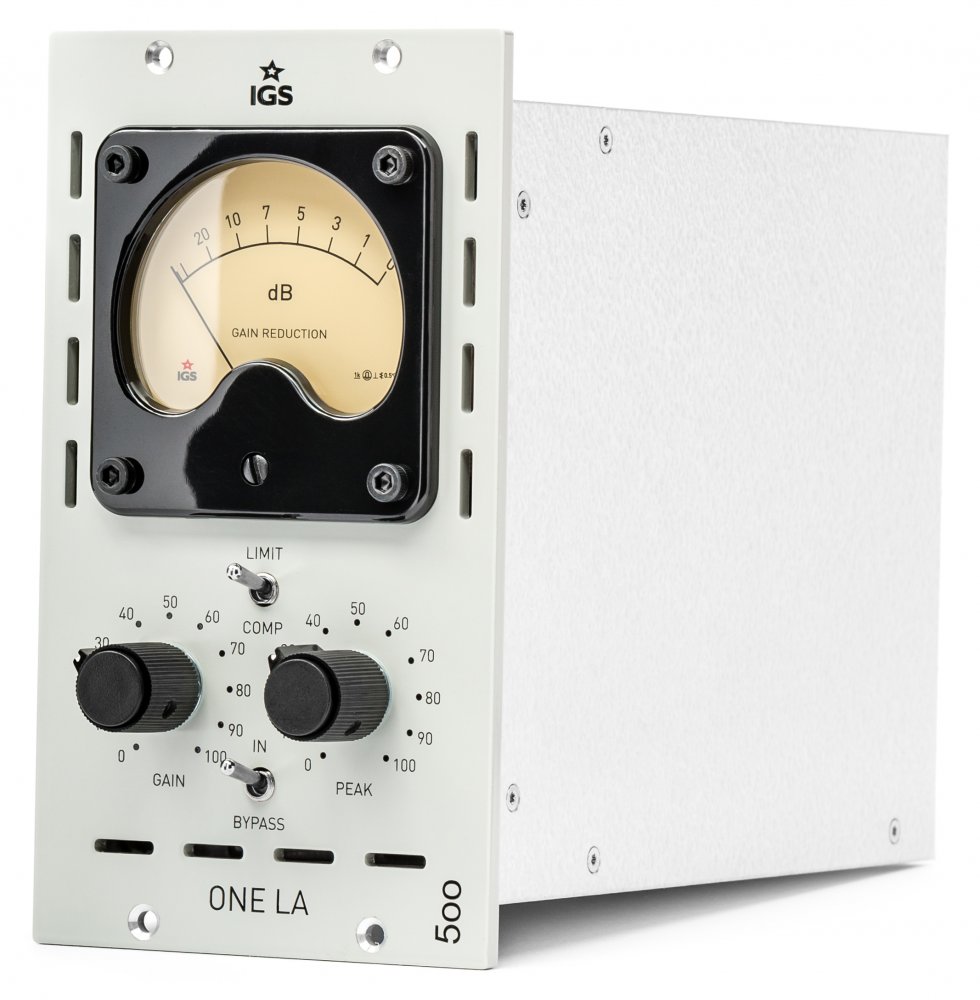

The IGS ONE LA 500 is an opto-compressor built for the 500 series format. This is the first high voltage vacuum tube 500 series module that is offered by IGS. It is powered with 250V DC from an on-board voltage converter, so it can be plugged into any 500 series rack equipped with a standard power supply.

Every single ONE LA is hand made with high quality, matched components (1% metal film resistors, Wima caps). It is equipped with JJ tubes and individually calibrated to give you the unique and unspoiled experience of one of the best opto-compressors in the history - the Teletronix '68 LA-2A. We have spent hundreds of hours designing the ONE LA, to make sure that it is as simple to use as it is versatile. Not only for harmonically rich vocals and strings, but also for huge and beefy drums and bass instruments.

Using two ONE LA 500 as a stereo pair will allow you to use it as an excellent bus compressor!

There is something else

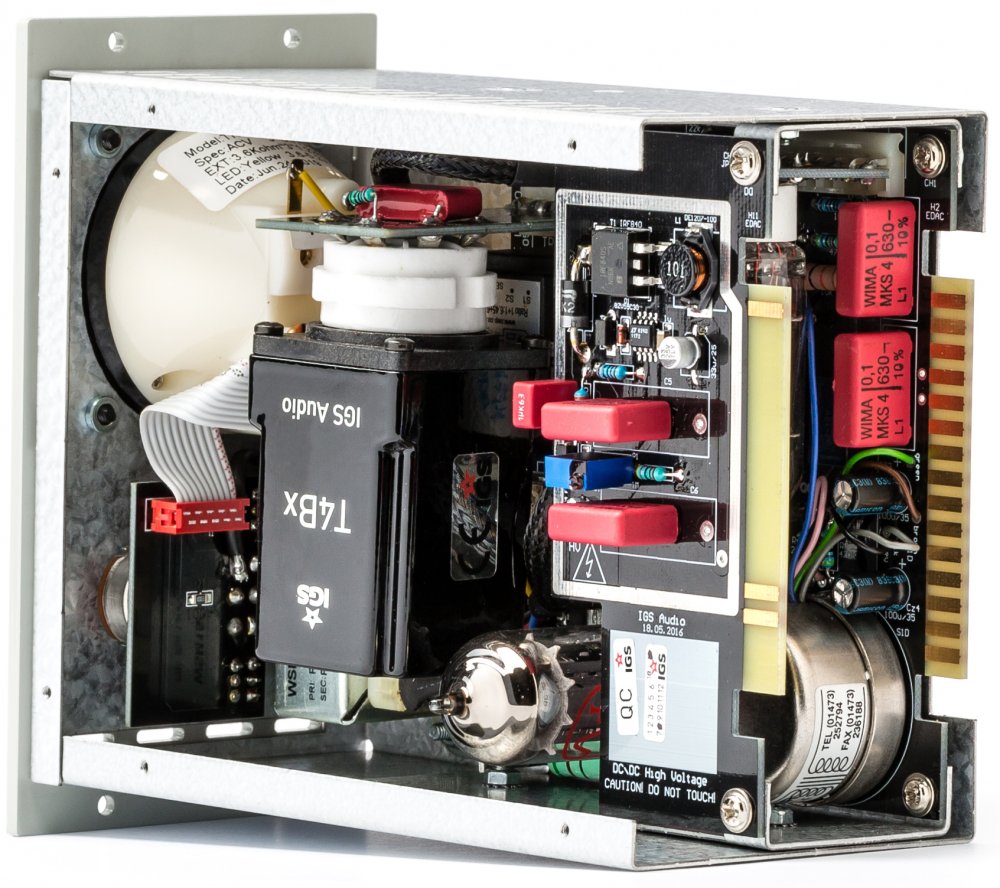

Three audio transformers (Sowter and Edcor in audio path and OEP in sidechain) have been used to provide excellent performance and with only two knobs and a single compressor/limiter switch, there is nothing that could go wrong. Additionally, you can replace the photocell easily (special version available)
DEVICE TYPE
Optical Compressor: Yes

BASIC FEATURES
Stereo Link: Yes, for a custom order
Hard wire bypass: Yes

INPUT & OUTPUT
Input Impedance (balanced): 600 ohm, Sowter transformer
Output Impedance (balanced): 600 ohm, Edcor (USA) transformer
Audio transformers: Yes, Sowter, Edcor, Carnhill (sidechain)

LEVELS
Operating Level: +4 dBu
Max input level: +20 dBu
Max output level: +21 dBu
Dynamic Range: 100 dB
Noise Level: -99 dBA
Max. gain: 32 dB
Max Gain Reduction: 32d

TIME CONSTANTS
Ratio: 4:1 in COMP mode, 100:1 in LIM mode
Attack: 10ms
Release: 0.5 - 5s (50% @ 60ms)

BANDWIDTH
Frequency response: 8 Hz - 20k Hz, +/- 1 dB

DISTORTION (@ 20 HZ - 20 KHZ)
THD+N: 0.002% @ 0dBu

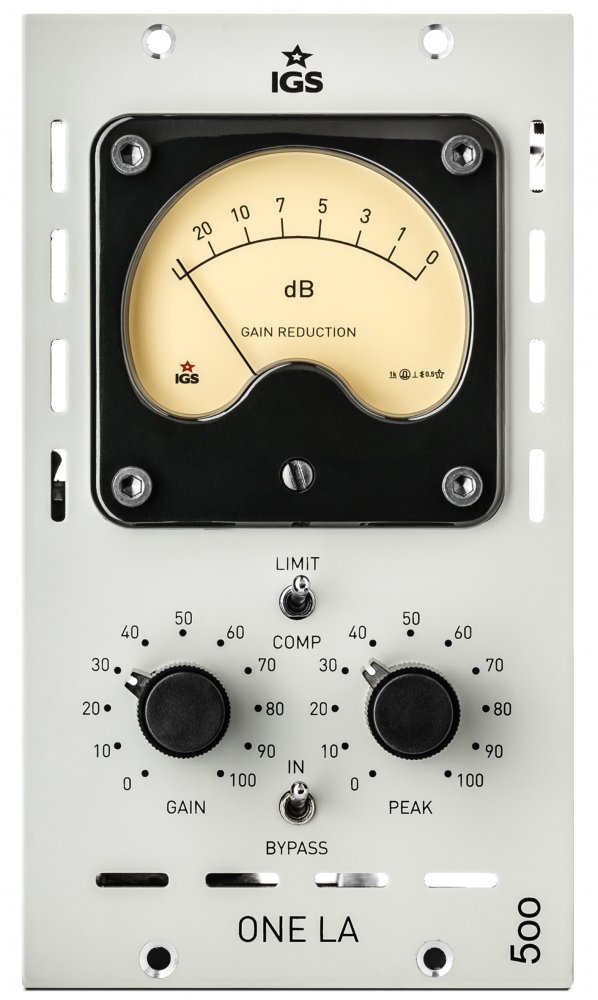

FRONT PANEL
VU Meters Yes, GR (backlit)

POWER
Voltage: API Standard, internal DC-DC conversion for powering tubes (250V DC)
Power consumption: 8W

PACKING BOX
Shipping weight: 3 kg

OTHERS
Tube set: ECC802, ECC803
