MPN #PHOTON 500

$987.00

Financing available
Free shipping in Canada. Conditions

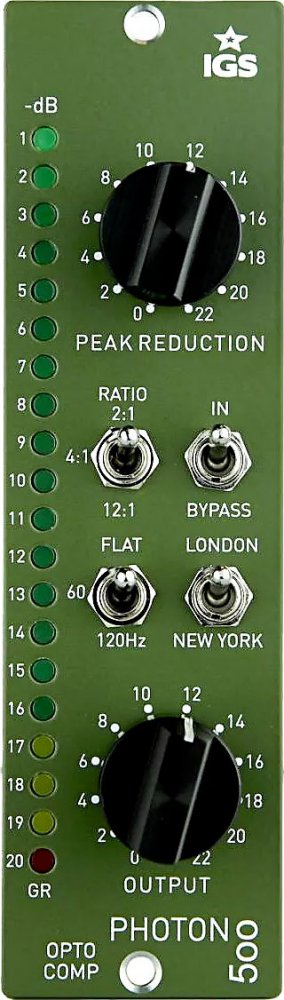

Optical compressor in a 500-series module, output balanced by a Carnhill transformer



Sweet and classy

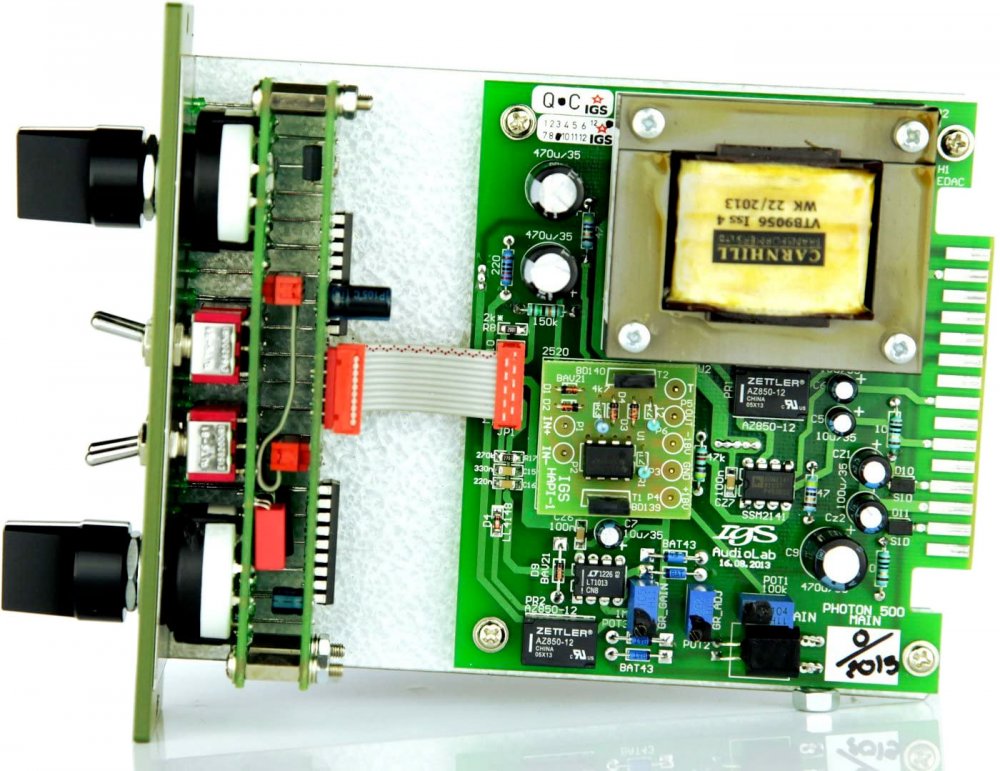

The PHOTON 500 is an optical compressor, based on technology from the 60's, first used in the early LA-2A limiters and later in the LA4. As an homage to these legendary products, we packed this technology in a 500-series module. The PHOTON 500 uses an opto-coupler, which introduces negative feedback in the audio path, taking care of gain reduction, being the basics of all compression. The PHOTON 500 has an electronically balanced input with 2520 compatible op-amp in the gain stage. The output is balanced by a Carnhill transformer.
DEVICE TYPE
Optical Compressor : Yes

BASIC FEATURES
All stepped manipulators : Yes
Sidechain HPF : OFF, 60Hz, 120Hz

INPUT & OUTPUT
Input Impedance (balanced) : 10k ohm
Output Impedance (balanced) : 600 ohm, Carnhill transformer
Audio transformers : Yes, Carnhill

LEVELS
Operating Level : +4 dBu
Max input level : +20 dBu
Max output level : +22 dBu
Noise Level : -99 dBA
Max. gain : 30 dB
Max Gain Reduction : 20 dB

TIME CONSTANTS
Ratio : 2:1, 4:1, 12:1

BANDWIDTH
Frequency response : 8 Hz to 20 kHz, +/- 0.1dB

DISTORTION (@ 20 HZ - 20 KHZ)
THD+N : 0.012%

POWER
Power consumption : 2.5W

PACKING BOX
Shipping weight : 1kg
