$927.00

Financing available
Free shipping in Canada. Conditions

Pultec style EQ in a 500-series module, Carnhill transformer balancing on input and output, passive filtering section

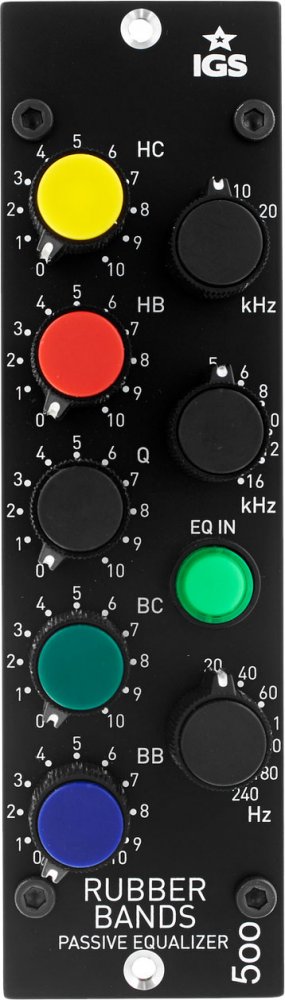

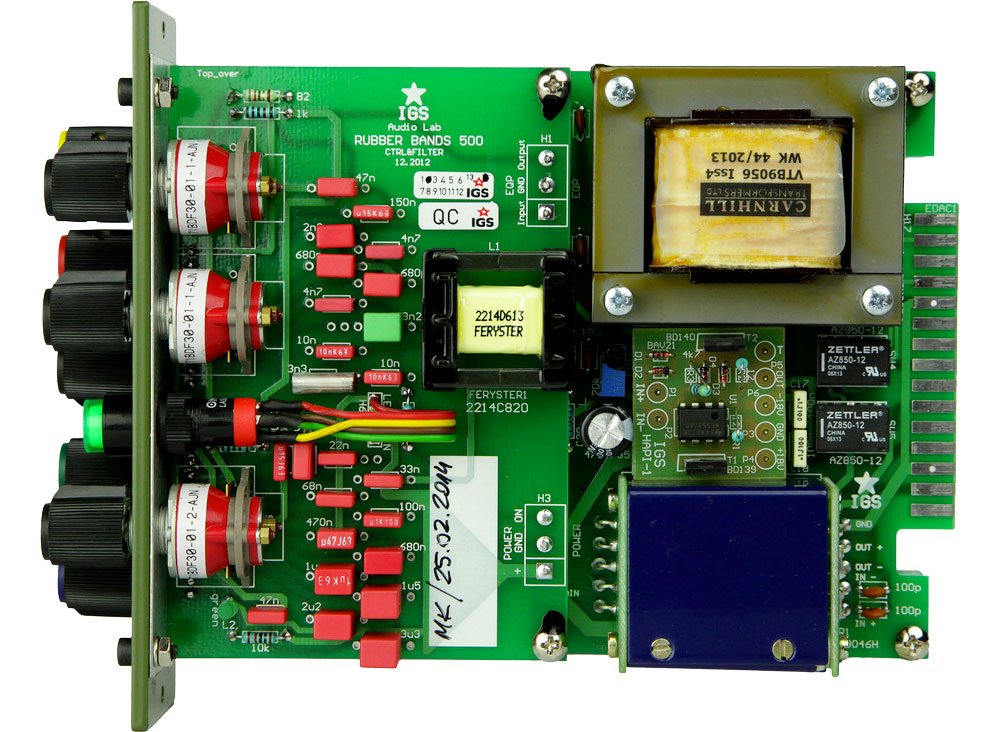

Rubber Bands 500 is a passive equalizer absurdly reduced in size. This tiny module is equipped with transformer balancing on input and output (Carnhill) as well as a discrete driver circuit. Of course the entire filtering section is passive and mirrors analogue equalizers from the 60s. There is separate frequency selector for low boost/cut sections. And you get the true bypass switch as a bonus!

It is all about these bands.
BASIC FEATURES
Q factor : 0.5 - 4
Hard wire bypass : Yes
Boost/Cut Range : +/- 15 dB
All stepped manipulators : Yes, Frequency selectors

INPUT & OUTPUT
Input Impedance (balanced) : 1k ohm
Output Impedance (balanced) : 600 ohm, Carnhill transformer
Audio transformers : Yes, Carnhill

LEVELS
Operating Level : +4 dBu
Max input level : +20 dBu
Max output level : +22 dBu
Noise Level : -99 dBA

BANDWIDTH
Frequency response : 5 Hz to 20k Hz, +/- 0.1 dB

DISTORTION (@ 20 HZ - 20 KHZ)
THD+N : 0.012%

POWER
Power consumption : 3.5W

PACKING BOX
Shipping weight : 1kg
