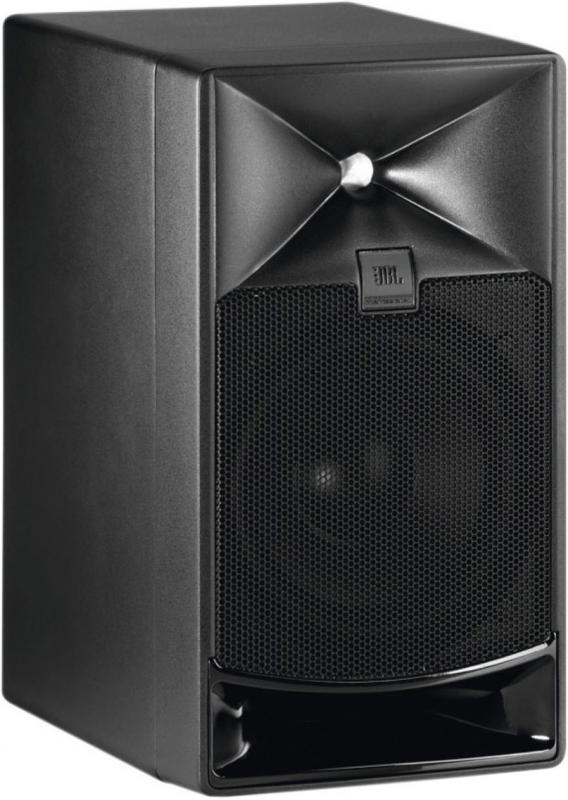

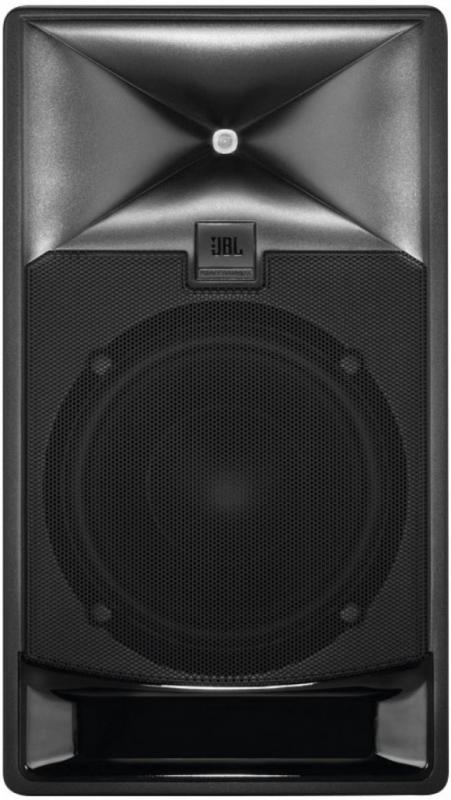

JBL LSR705i

5" Master Reference Monitor. Next Generation Systems for Post and Broadcast Production in Control Rooms and Trucks.

The first in JBL's new 7 Series line, the 705i and 708i models answer the call for next generation multi-channel monitoring in post rooms, broadcast facilities and trucks. Leveraging patented technologies developed for our flagship M2 Master Reference Monitor, 7 Series Studio Monitors deliver detailed imaging, extended frequency response and remarkable output from compact enclosures. Centrally amplified and tuned, and easily installed, 705i and 708i Studio Monitors are the heart of an elegant, scalable system for broadcast and post facilities working in immersive audio formats.
Features
  • Next Generation Systems for Post and Broadcast Production in Control Rooms and Trucks
  • Next Generation Driver Technology
  • Patent Pending Image Control Waveguide
  • Compact, Install Friendly Enclosures
  • Specifications
  • Frequency Response : -1.5 dB @ 48Hz - 23kHz
  • Frequency Range : 39Hz - 36 kHz
  • Max SPL : (80 Hz - 20 kHz) >101 dB SPL / 1m
  • Maximum Peak SPL : (80 Hz - 20 kHz) >107 dB SPL / 1m

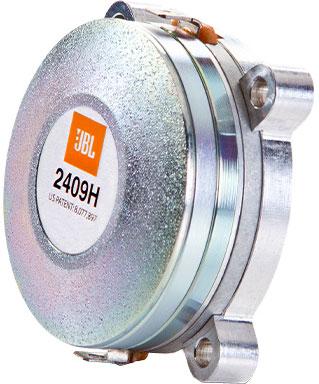

  • HF Driver : 2409H

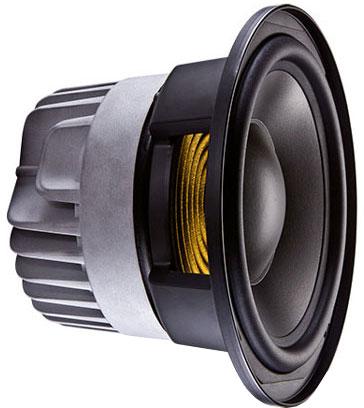

  • LF Driver : 725G
  • Dividing Network
  • Transition Frequency : 1.9 kHz
  • Input Types : Phoenix Terminals accept 12 gauge speaker wire
  • Dimensions (HxWxD) : 10.5 x 5.875 x 8.125 in (267 x 149 x 206 mm)
  • Weight Each : 9.0 lb (4.08 kg)
  • Enclosure : Birch plywood reinforced for mounting
  • Mounting : Top, bottom and rear mounting points. 2-hole mounting pattern
  • Reviews
    Price

    $999.00
    Additional information
    For more information about the LSR705i, please visit the website of JBL
