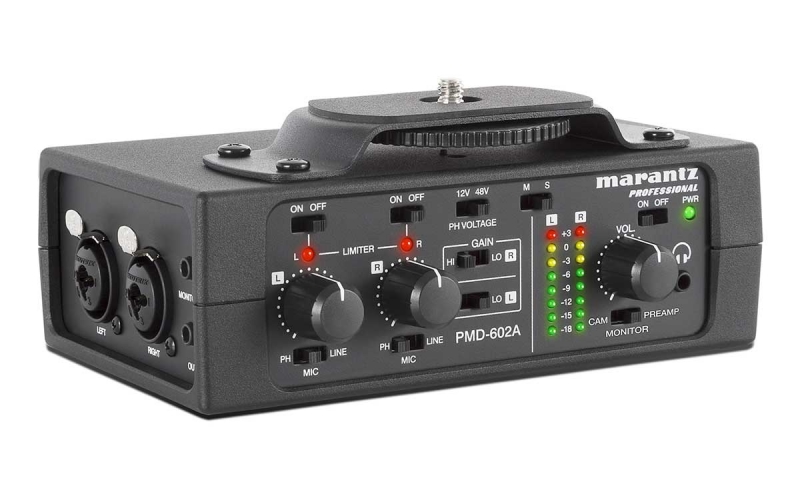

The PMD-602A is a two-channel battery-operated interface which enables the use of microphones or line-level audio devices with DSLR cameras or field recording equipment.
Professional features incude XLR combo inputs with selectable 12V or 48V phantom power for condenser microphones, mic or line-level input sensitivity with two-stage gain control, a 3.5mm stereo line input, and limiting to ensure gain matching. The line output master makes it possible to correctly feed any camera or recorder line input while monitoring through the headphone output. The PMD-602A also has a 1/4" x 20 mounting bracket on the top for the attachment of a camera, and a tripod socket on the bottom of the unit for added flexibilty.
Two XLR Combo inputs - selectable MIC or LINE level12V or 48V phantom power for use with condenser microphones3.5mm stereo LINE inputLimiter functionLINE output with level controlHeadphone output for monitoringCamera mount and tripod socket(4) AA battery operation
Frequency Response: 20 Hz-20 kHz, +1 dBSignal-to-Noise Ratio: > 94 dBMax Mic Input Level: -20 dBu (high gain), +10 dB (low gain)Mic Input Sensitivity: -40 dBuMic Input Impedance: 2 kMax Line Input Level: +24 dBLine Input Impedance: 10 kMaximum Voltage Gain: -24 dBPhantom Power: 12V and 48V (switchable)
(2) XLR-1/4" (3.5 mm) TRS stereo inputs(1) 1/8" (3.5 mm) TRS stereo output(1) 1/8" (3.5 mm) stereo headphone output
Operating Temperature: 41-140°F / 5-60°COperating Humidity: 25-85%, non-condensing
Power Requirement: 4 AA batteriesBattery Life (phantom power OFF: 15 hoursBattery Life (phantom power ON): 12 hoursPower Consumption: < 5 WDimensions (HWD): 1.5 x 2.5 x 6" (38 x 64 x 152mm)Weight: 1.4 lbs. (0.63kg)
