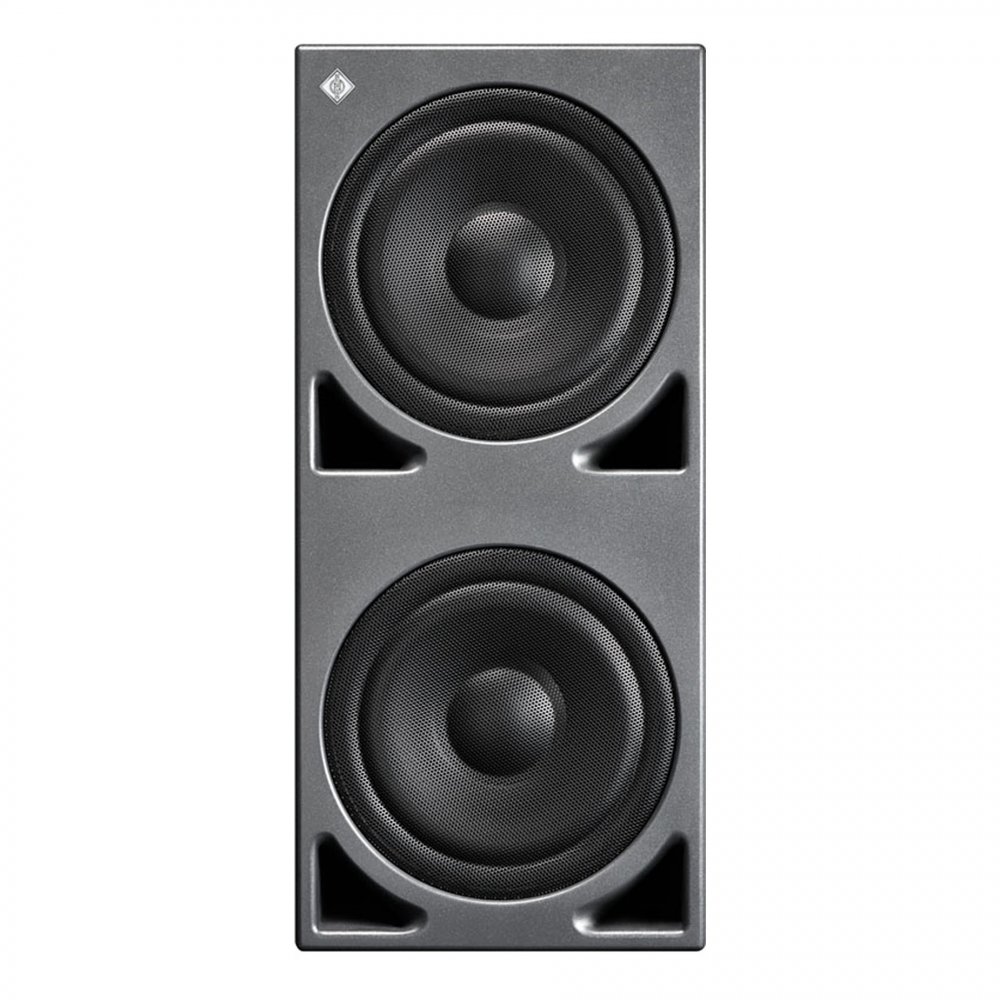

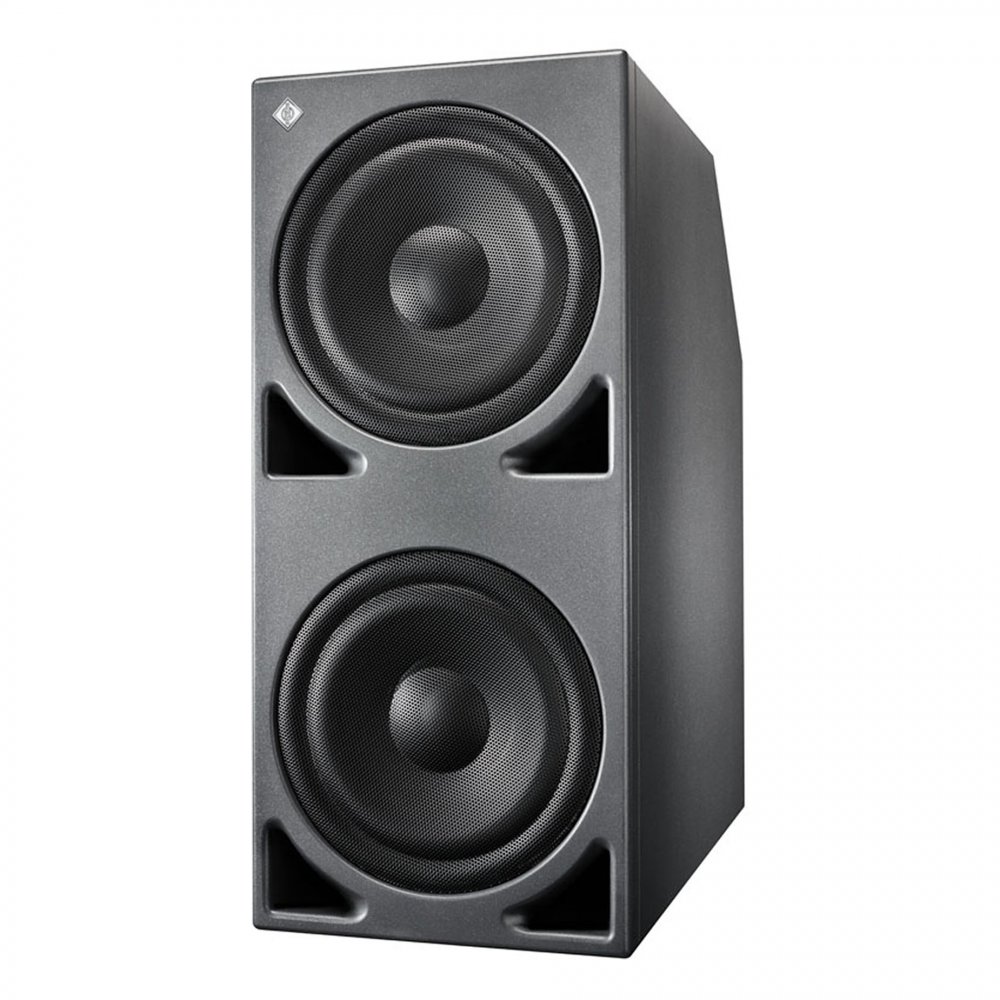

Neumann KH 870

The KH 870 is an active studio subwoofer that can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.

As consumer technology advances at ever faster rates, professional technology increasingly finds itself trying to keep up. An example of this is the advent of the Blu-ray and other high definition formats that have increased the audio channel count to 7.1.

The KH 870 is an answer to these new demands by offering a new 7.1 High Definition Bass Manager™ This is compatible with all standard consumer formats from mono through to the latest 7.1 HD systems. Eight channels of analog inputs ensures flexible interconnectivity for modern studios. Four-mode LFE-channel processing guarantees compatibility across all formats and industries. Forth-order crossovers and flexible acoustical controls allow for seamless system integration. Built-in volume control and a hardware remote control allows for centralized system control independent of the source, and the electronics can be remote located to reduce cabling

The latest amplifier technology and acoustical components have been used to ensure the most accurate sound reproduction possible. Robust drivers, a rock-solid cabinet, and carefully designed ports guarantee a tight, articulate, and distortion-free low frequency reproduction, even at high replay levels. Using the sum output, Plane Wave Bass Array™ (PWBA™) techniques acoustically improves lateral consistency in the listening area. The bass extends down to 18 Hz.

The KH 870 subwoofer is designed to complement our extensive range of monitors, and can be used on its own, or daisy-chained to make larger systems capable of higher SPL. The cabinet can be positioned next to a wall or flush mounted into a wall due to the front mounted port, and can be mixed freely in multichannel systems with other loudspeakers from our range.
Flexible electronics
  • 7.1 Channel High Definition Bass Management™ compatible with all formats from mono to 7.1
  • Bypassable 4th order 80 Hz active crossover for maximum compatibility with consumer reproduction
  • 0 and +10 dB LFE gain and 4-mode LFE processing:
  • -LFE to subwoofer and left/right
    -LFE to subwoofer only up to 80 Hz
    -LFE to subwoofer only up to 120 Hz
    -LFE to subwoofer with no filtering - for daisy chaining subwoofers and external signal processing systems
  • Independent control of bass management for front and back channels
  • System wide volume control via optional hardware remote controls or RS-232
  • Acoustical controls adapt the subwoofer's response to the environment
  • -Output level
    -Low cut
    -Parametric equalizer
    -45° step phase control with a built-in test signal
  • Larger systems and Plane Wave Bass Arrays™ maybe constructed using the Sum output
  • Remoteable electronics (REK 3 and an SC nn) for installation convenience, less cabling, and convenience of use
  • Integrated electronic limiter for amplifier and driver protection
  • Low heat dissipation amplifiers
  • Electronics can be remotely powered on with two modes of operation (0 V and 12 V trigger)

  • Robust drivers and cabinet
  • Low frequency extension for main loudspeakers down to 18 Hz
  • Low distortion magnetically shielded long-throw drivers
  • Reduced bass compression at high SPL from generously proportioned bass reflex ports
  • Large system with 6 dB higher output than KH 810
  • A main loudspeaker can be mounted onto an KH 870 to make a large 4-way column system
  • Allows main loudspeakers to play louder and with lower distortion
  • Wooden cabinet with a tough painted finish (anthracite or silver) and high density rubber isolating feet
  • Excellent self-damping properties leading to minimal cabinet resonances
  • Cabinet look conforms to the family design
  • Specifications
    3 dB free field frequency response: 18 - 300 Hz, ± 3 dB
    Pass band free field frequency response: 19 - 300 Hz, ± 2 dB
    Self-generated noise level at 10 cm: < 20 dB(A)
    Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m: > 40 Hz
    Max. SPL In half space at 3% THD: 116.7 dB SPL
    Max. SPL with pink noise in half space at 1 m: 118 dB SPL
    Averaged between: 40 and 90 Hz

    Amplifier, cont. (peak) output power (THD < 0,1 %): 320 W (400 W)
    Controller design: Analog, active
    Main channel crossover frequency: 80 Hz
    Crossover slope: 24 dB/oct
    Equalization - Low cut : 30 Hz, 0 ... 12 dB
    Parametric Equalizer: Bypassable
    Parametric Equalizer - Gain: +4 ... 12 dB
    Parametric Equalizer - Frequency: 20 ... 120 Hz
    Parametric Equalizer - Q: 1 ... 8
    Time of Flight adjustment delay: 0 … 4.69 ms @ 80 Hz (4-step 0, 45, 90, 135), - 180° Switch
    Volume Control: Hardware remote or RS-232
    Calibration Tools: Internal signal generator
    Protection circuitry: Peak and Thermo Limiters
    Infrasonic filter frequency; slope: 6.5 Hz; 12 dB/oct.
    Remote control : On a CAT-5

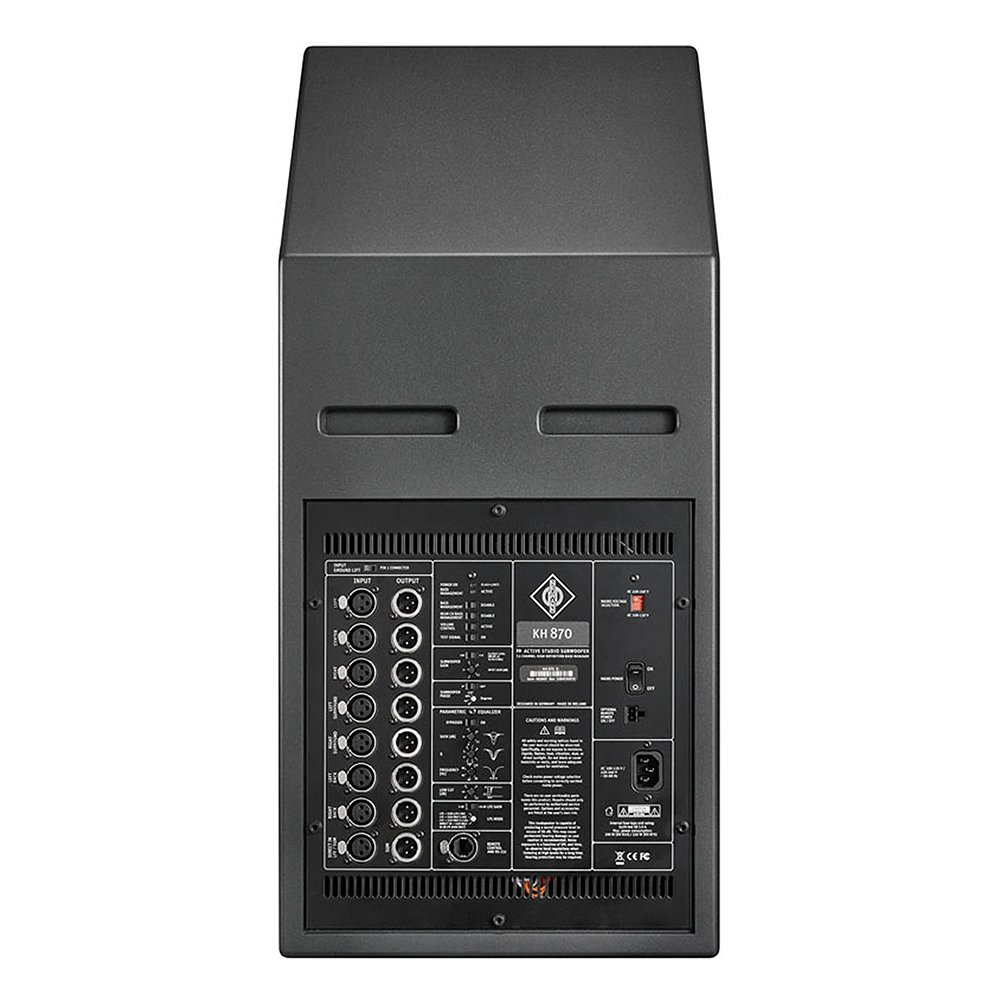

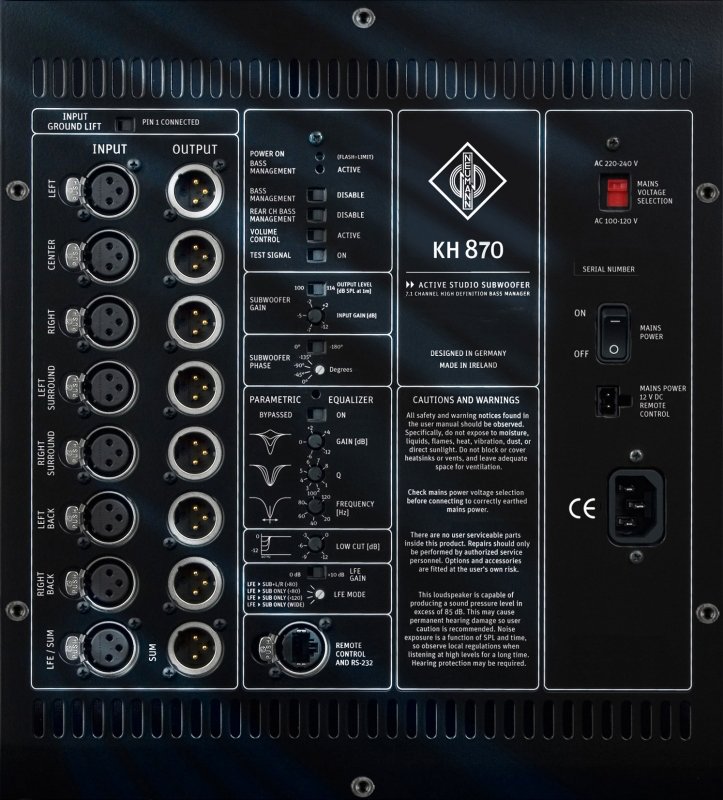

    Analog Inputs and Outputs
    Input/Output channels : 7.1 / 7+Sum
    Impedanz electrically balanced: XLR, 13 k
    Input sensitivity: 8 and +6 dBu
    Max. input level: +19 dBu (6.9 Vrms) / per channel
    CMRR: > 60 dB @ 15 kHz
    Interchannel isolation (1 kHz), level matching: 95 dB, ±0.1 dB
    Volume control range, resolution: 118 dB, 0.25 dB
    Dynamic range, THD+N : 119 dB(A), <0. 001% (100 dB)
    LFE Modes: 80+re-routing, 80, 120, wide
    LFE Gain: 0 / +10 dB
    Gain Control: +2 … 12 dB
    Displays and indicators: power on: Red LED
    - limit/clip: Red LED "Flashing"
    - bass management active: Green LED
    Mains power: 220 - 240 / 100 - 120 V AC (switchable)
    Power consumption - Idle : 25 W
    Power consumption - Full output : 550 W

    Cabinet surface finish: Painted
    Color: standard: Anthracite (RAL 7021)
    Baffle cover: Included metal grille
    Drivers: Magnetically shielded
    Woofer: 2 x 265 mm (10")
    Product dimensions:
    (height x width x depth), mm (inches)
    735 x 330 x 645 mm, (28.9" x 13" x 25.4")
    Packed dimensions:
    (height x width x depth), mm (inches) 860 x 470 x 770 mm, (33 7/8" x 18 1/2" x 30 3/8")
    Internal net volume: 86 l
    External volume: 156 l
    Weight : 47,1 kg (103.6 lbs)
    Delivery includes:
    1x KH 870
    3x Power cables (Euro, UK, USA)
    1x Operating manual
    1x Supplement "Getting Started Quickly"
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the KH 870, please visit the website of Neumann
