| Purple Audio Tav Inductor EQ |
|
Purple Audio Tav Inductor EQ

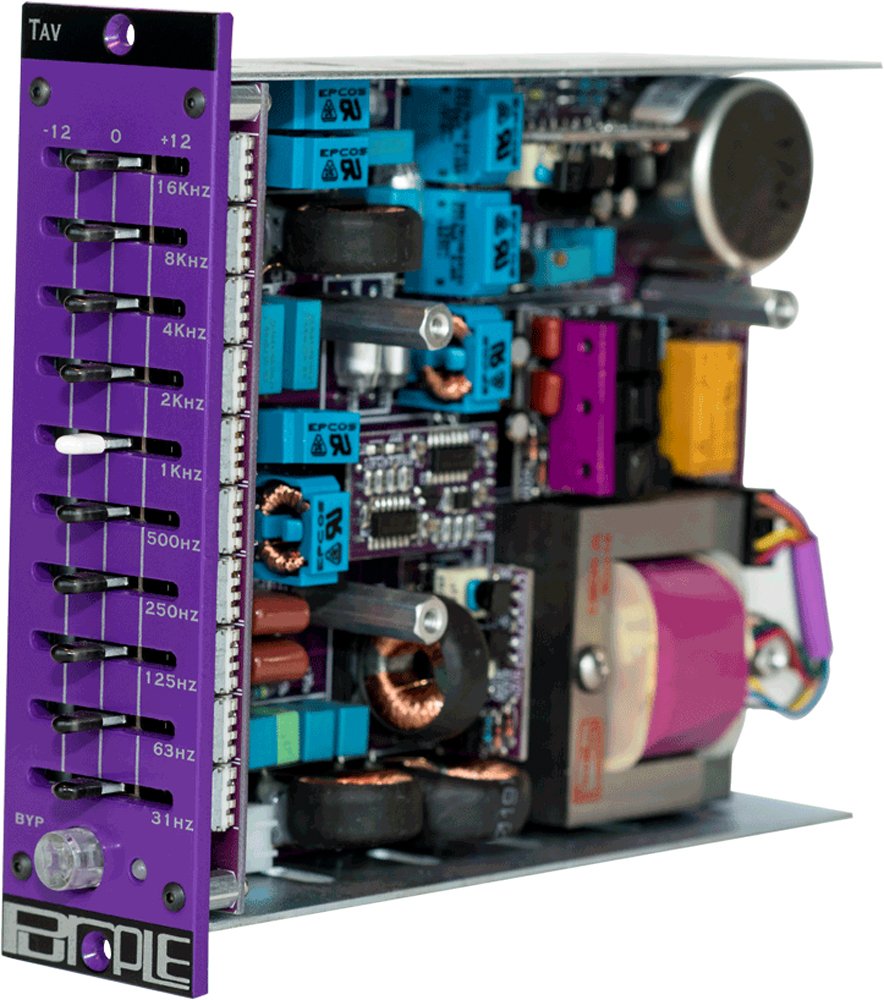

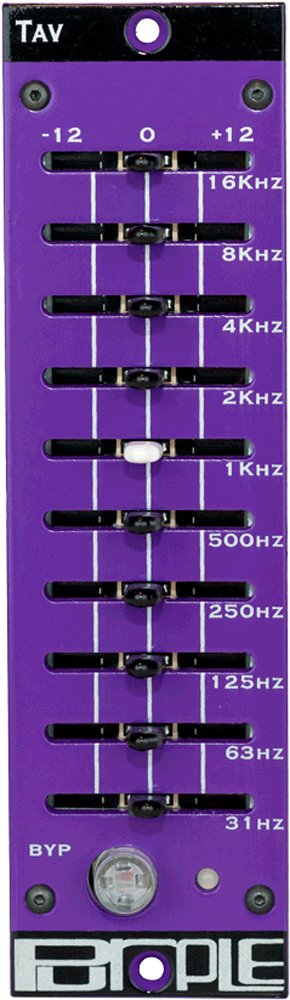

The Purple Audio Tav Inductor EQ is a ten-band inductor-based graphic EQ. Designed to work in standard "500" racks.
A new take on the console graphic, with ten easy to use bands. Each band uses a high quality inductor and carefully selected caps to set the center frequency. At full boost and full cut the bands are narrow enough to still be useful individually, but at lower settings the bands widen out for more gentle shaping. Even at full boost and cut, the filters are shaped to be musical and useful.
An illuminated pushbutton for relay true bypass (green) allows for easy comparison with unprocessed source material. A Tricolor LED meters the signal. With the low and high cut switched out, and all four bands set to 0, the frequency response is +/- 0.25dB from 15Hz to 25kHz, and -3dB at 60kHz.

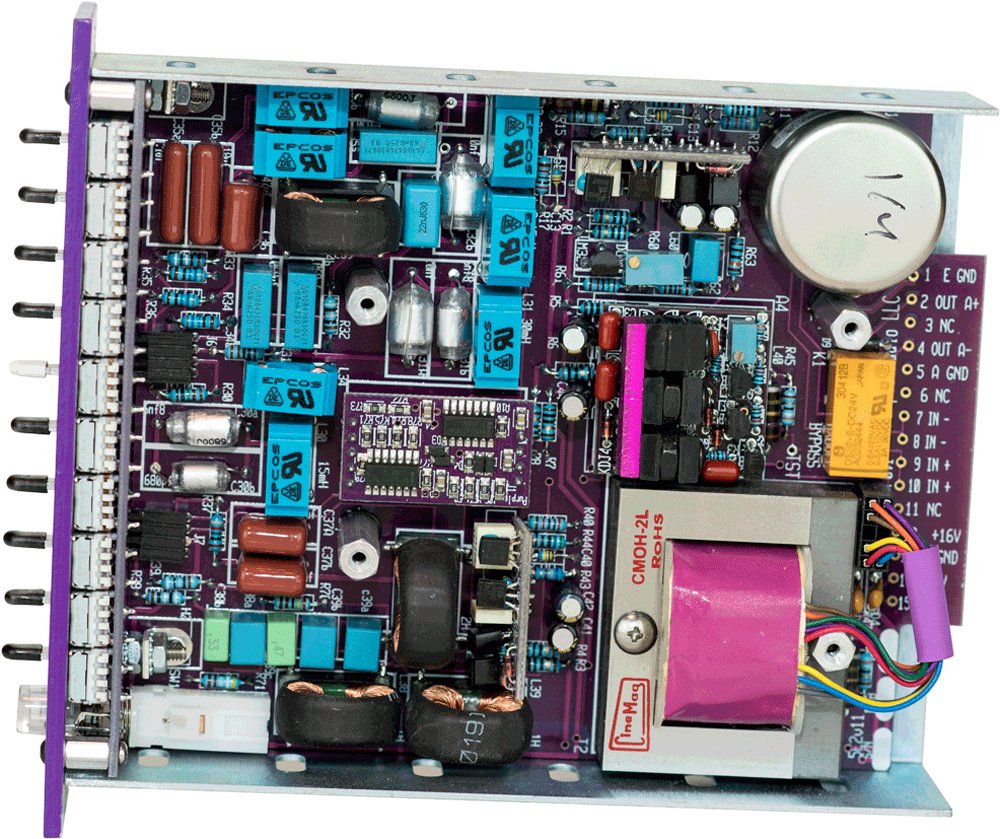

With specialized input and output transformers, the Purple Audio Tav Inductor EQ has plenty of headroom, even at full boost. The entire circuit is discrete, with no electrolytic capacitors in the signal path, and no servo amps. With only two active stages, the current draw is low enough to work in any rack, and leave plenty of juice for other modules.
Purple Audio Tav Inductor EQ's features Each band boost or cut by 12dB
Relay True Bypass
Tricolor LED level meter
Transformer balanced in and out
Discrete signal path
No electrolytic caps in signal path
Current consumption: 60mA
Over Current Resettable Fused (prevents any module problem from affecting your rack)
ROHS - Lead Free
For easy serviceability and tweaking, the Purple discrete opamps can be replaced with any standard discrete opamp or a DIP-8 IC.
Purple Audio Tav Inductor EQ Pinout
Pin 1: Chassis Ground
Pin 2: Output A +
Pin 3: NC
Pin 4: Output A -
Pin 5: Audio Ground
Pin 6: NC
Pin 7: Input -
Pin 8: Input -
Pin 9: Input +
Pin 10: Input +
Pin 11: NC
Pin 12: +15 or 16VDC 60ma
Pin 13: Audio Ground
Pin 14: -15 or 16VDC 60ma
Pin 15: NC (+48VDC)
|
