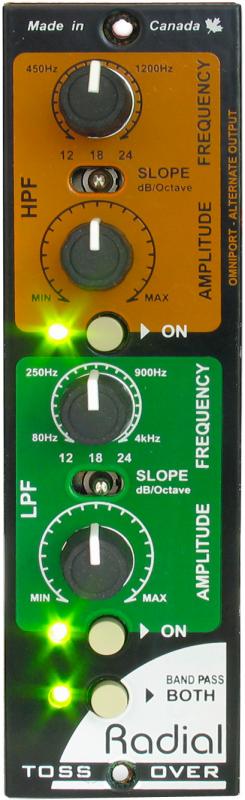

The Radial Tossover is a 500 series frequency divider that lets you separate and process low and high frequencies separately via fully variable controls and slopes.
The Tossover is a unique 500 series module that enables you to frequency-divide the audio signal path into two stems and process the high and low frequencies separately. This enables parallel processing whereby one could, for instance, process a vocal track by adding distortion and presence to the high-end while leaving the low frequencies unaffected.
The design begins with separate low-pass and high-pass filters with variable frequency and amplitude controls for each range. These are connected in series and can be used separately to split off either the bass or treble regions or used together to create a band-pass filter to enhance the mid range. This is augmented with a choice of 12dB, 18dB or 24dB per octave slopes that let you apply subtle filtering on instruments to gently smooth things out or apply a more radical filter at the cut-off frequency for more intense effects.
Either filter may be accessed via the 500 series power rack's XLR output by assigning a rear-mounted slider switch. Using the Omniport on a Radial Workhorse lets you take things a step further by allowing each frequency range to be processed separately and auditioned simultaneously. This, for instance enables you to split a bass track and process the low frequency stem using a compressor while processing the high frequencies with an effect like a tube distortion pedal. You would then mix the two stems together to create new and exciting effects.
The Radial Tossover is an innovative module that opens the door to creative options never before realizable in the 500 series world.
Divide signal for frequency specific processing
Produce exciting effects by parallel processing
Create low-pass, high-pass and band-pass filters
Choice of 12, 18 and 24 dB per octave slopes
Maximum input : +12dBu
Maximum output : +20dBu
Frequency response : <20Hz to >20KHz
Filter frequency range - low pass : 85 Hz to 4000 Hz
Filter frequency range - high pass : 130 Hz to 5000 Hz
Filter slope : 12, 18 or 24 dB per octave
Equavalent input noise : -95dBu
Intermodulation distortion : 0.002%
Omniport function : Alternate Output fro XLR Output
Input impedance : 20K Ohms
Controls : 4 individual output controls
Connectors : 4 balanced TRS outputs
Indicators : Power status LED
Omniport : Alternate output for XLR output
Power requirement : 85mA maximum
Shipping size (L x W x H) : 9 x 6.5 x 2 (inches) 229mm x 165mm x 51mm
Weight : 1.5lbs (0.7Kg)
Conditions : For use in dry locations only between 5°C and 40°C
