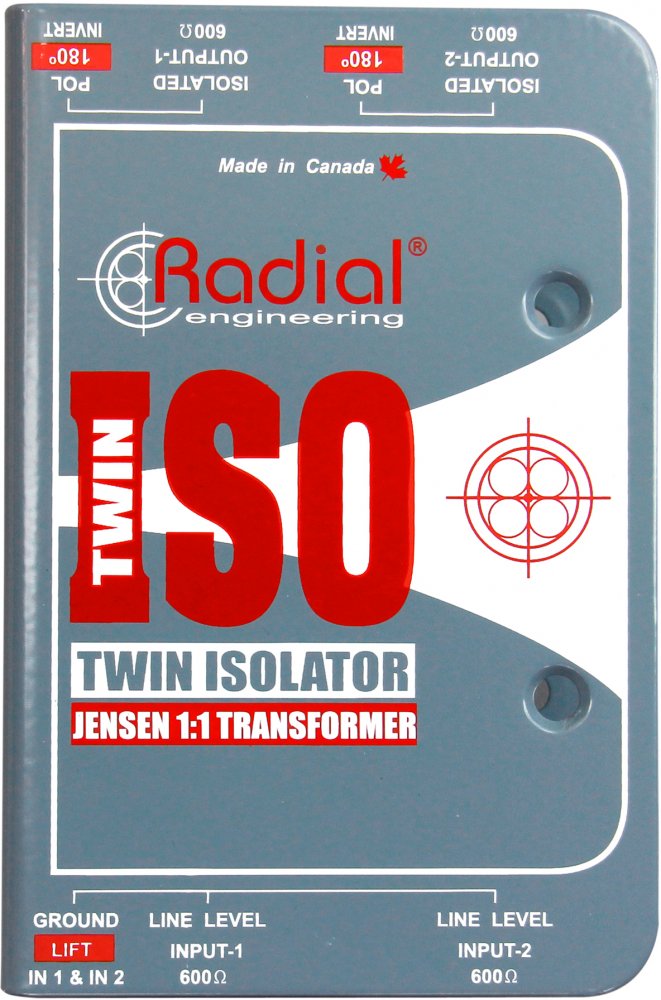

Radial Engineering Twin Iso

The Radial Twin-Iso is a two channel balanced line-level isolator that eliminates the hum and buzz caused by ground loops that is often encountered in audio systems.

The Radial Twin-Iso is a high performance two channel balanced line-level isolator for professional touring, sound installation, broadcast and studio that provides isolation between various pieces of audio equipment such as consoles, amp racks, remote towers and recorders as a means of eliminating hum and buzz caused by ground loops.

Central to the Twin-Iso are two high performance Eclipse transformers. These stellar audio engines are modelled after Deane Jensen's original designs to deliver an exceptionally linear response at all frequencies and are capable of handling as much as +21dB without distortion. Placed in between the audio source and destination, they assure absolute signal integrity is retained no matter what the program material.

As with all Radial products, the Twin-Iso is road-ready to handle the most abusive environments. It features 14 gauge steel I-beam construction and an innovative book-end design that creates a protective zone around switches and connectors. A full bottom no-slip pad provides mechanical isolation from vibrations while adding electrical insulation between electrically charged devices. When combined with the J-Rak or J-Clamp, the Twin-Iso easily integrates into 19" rack systems or may be permanently mounted inside racks or under podiums.

The Twin-Iso solves noise problems with plug & play simplicity while delivering exceptional audio signal integrity.
Features
  • Stereo isolator, withstands up to +21dB without distortion
  • Eliminates hum and buzz caused by ground loops
  • Suitable for balanced & unbalanced signals
  • Exceptionally linear response from 20Hz to 20kHz
  • Specifications
  • Audio circuit type : Passive line-level isolation, transformer based
  • Number of channels : Stereo (dual mono)
  • Frequency response : 10Hz ~ 50KHz (± 1dB)
  • Dynamic range : 135dB
  • Maximum input : +21dBu @ 1kHz, 1% THD+N
  • Total harmonic distortion : 0.001% @ 1kHz, +4dBu output
  • Phase deviation : 0.5° @ 100Hz; 3° @ 20Hz
  • Input impedance : 600 Ohms, balanced
  • Output impedance : 600 Ohms, balanced

  • Features
  • Transformer : Custom wound Eclipse ET-LD2
  • High pass filter : -3dB @ 100Hz (12dB.Oct.)

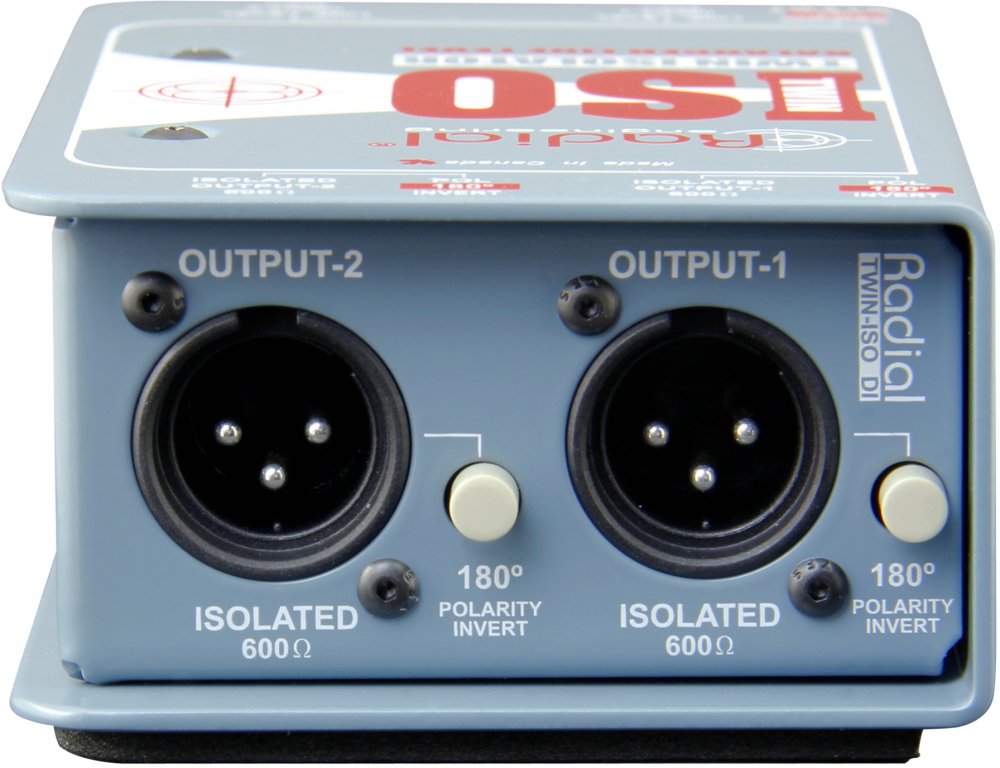

  • Ground lift : Disconnects XLR pin-1 at isolated output
  • XLR configuration : AES standard (pin-2 hot)

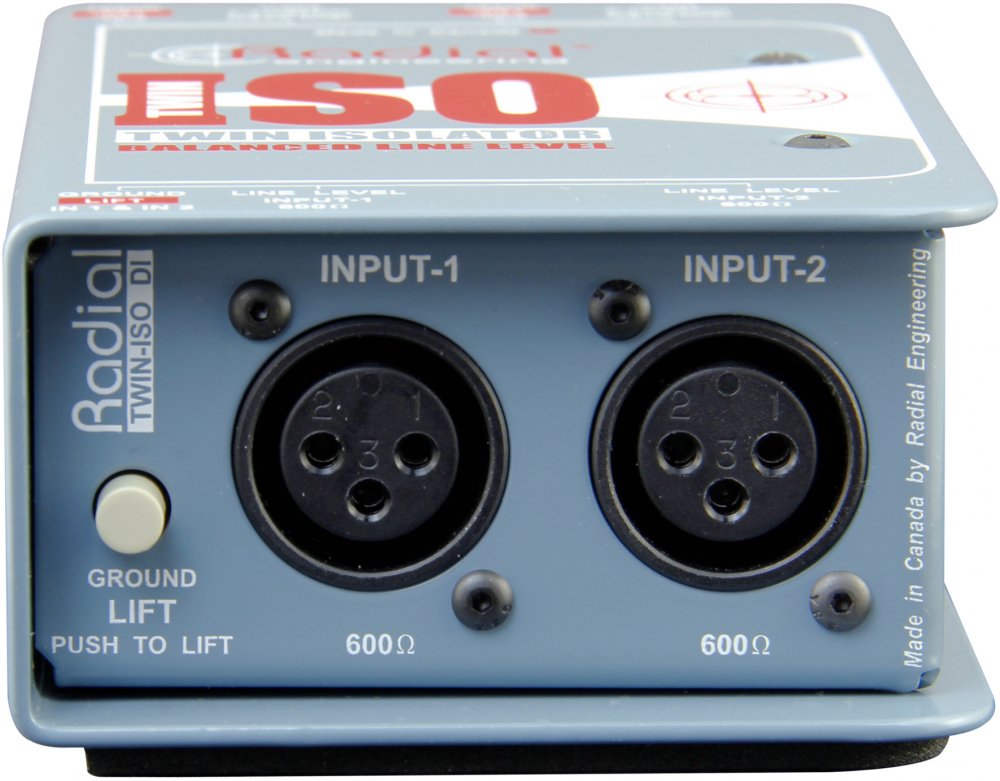

  • Connectors : XLR-F inputs; XLR-M outputs

  • General
  • Construction : 14 gauge steel chassis & outer shell
  • Finish : Durable powder coat
  • Size: (W x H x D) 84 x 127 x 48mm (3.3" x 5.0" x 2")
  • Weight : 0.70 kg (1.55 lbs)
  • Shipping size : W x H x D: 102 x 76 x 165mm (4" x 3" x 6.5")
  • Shipping weight : .87 kg (1.92 lbs)
  • Power : Passive, no power required
  • Conditions : For use in dry locations only between 5°C and 40°C
  • Reviews
    Price *
    $325.00
    $279.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Twin Iso, please visit the website of Radial Engineering
