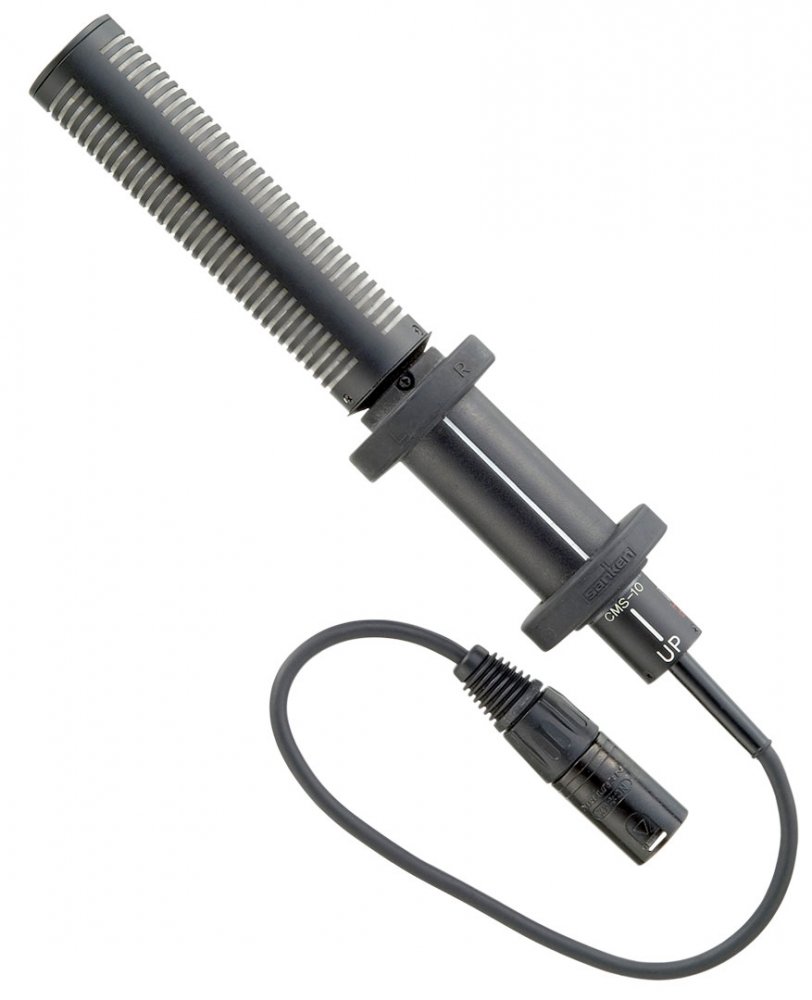

Sanken CMS-10

The Sanken CMS-10 uses an MS design to provide stereo or mono audio signals. The Mono/Stereo switch allows output of a mono signal to both L/R channels or a L/R stereo signal

The CMS-10 provides extremely high-resolution audio to match today's advanced picture quality. This versatile microphone is switchable between a very sharp directional Mono and rich Stereo in environmental imaging. Stereo angle is 127°.

Unlike conventional shotgun microphones, the CMS-10 uses a unique second-order pressure gradient design, enabling precision directional response through multiple cardioid elements in a front-back array. The capsules combine line microphone performance and second-order gradient response in a single compact system.

Stereophonic localization depends primarily on signal accuracy and channel separation in the 400Hz to 3kHz range. Pattern control of the CMS-10 has been optimized in this range. Very low and very high frequency response has been optimized along the frontal axis so that the "target" on-axis sounds are clearly delineated.
  • Lightweight, camera-mountable
  • Switchable very sharp mono-shotgun and stereo mic
  • Very short length (210.5mm) and light weight (170g)
  • Using PPS diaphragm, it maintains high durability and quality even in high humidity environments
  • By use of a specially designed suspension holder, it can isolate camera motor noise in camera mount use
  • Basic design is M-S, but it includes M-S to L-R circuitry, and allows a direct L-R signal
  • Incuded accessories: WSJ-10 Softie windjammer, SH-10 Suspension mount, rubber plate X 2
  • Specifications
    Directivity: Mono=Super Cardioid / lobar Stereo=Hyper Cardioid
    Transducer: DC biased condenser
    Frequency range: 150Hz - 20kHz
    Sensitivity (nominal at 1kHz): STEREO 50mV/Pa (-26dB,0dB=1V/Pa), MONO 32mV/Pa (-30dB,0dB=1V/Pa)
    Equivalent noise level (A-weighted): STEREO 20dB-A , MONO 22dB-A
    Max SPL (1% THD): 120dB SPL
    Output impedance at 1KHz: 240 ohms
    Powering: +48±4V phantom X 2ch
    Current consumption: less than 2.5mA/ch
    Weight: 170g
    Dimensions: 211mm X 27.8mm (mesh part diameter), 26.5mm (suspension cylinder diameter), 19mm (grip diameter)
    Surface finish: matte black
    Connector: Cable direct out from the microphone, 30cm, XLR-5M
    Free shipping in Canada. Conditions
    Additional information
    For more information about the CMS-10, please visit the website of Sanken
