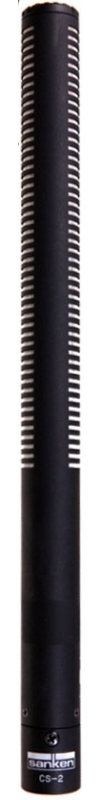

Sanken CSR-2

The Sanken CSR-2 Long Reach Shotgun Microphone offering a sharp directivity over a wide frequency range

Suppressing back ground sensitivity at wide frequency range by narrow-angle directivity with line microphone method at mid-high frequency range and by cancelling back ground sensitivity with two capsules at low-mid frequncy range.

Easy to handle and operate by using general purpose 48V Phantom powering.

Sharper narrow-angle directivity can be gained because of long acoustic tube with square capsule being superior in space efficiency.
  • Super long reach, only 10" in length
  • Suppresses background sensitivity using Sanken's exclusive rear cancellation technology
  • Very Sharp Directivity
  • Proprietary rectangular capsule design for compact, super-sharp directivity
  • Flat frequency response 70Hz to 20kHz
  • Easy to handle and operate using 48V phantom power
  • Quick power-up
  • Standard XLR3 connector
  • Specifications
    Directivity: Mid-High: lobar Mid-Low: Rear rejection by second gradient two capsules
    Transducer: Back electret condenser x 3
    Frequency range: 70Hz - 18kHz
    Sensitivity (nominal at 1kHz): 71mV/Pa (-23dB,0dB=1V/Pa)
    Equivalent noise level (A-weighted): Rear rejection ON: 16dB SPL Rear rejection OFF:15dB SPL
    Max SPL (1% THD): 123dB SPL
    Output impedance at 1KHz: 150 ohms
    Powering: +48±4V phantom
    Current consumption: 4.5mA
    Weight: 170g
    Dimensions: 250mm x 22mm (diameter)
    Surface finish: matte black
    Connector: XLR-3M
    Free shipping in Canada. Conditions
    Additional information
    For more information about the CSR-2, please visit the website of Sanken
