Complete set with windshield COSI and shotgun microphone MiniCMIT

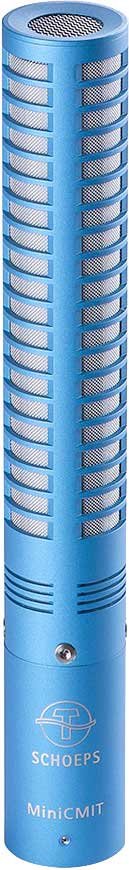

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.

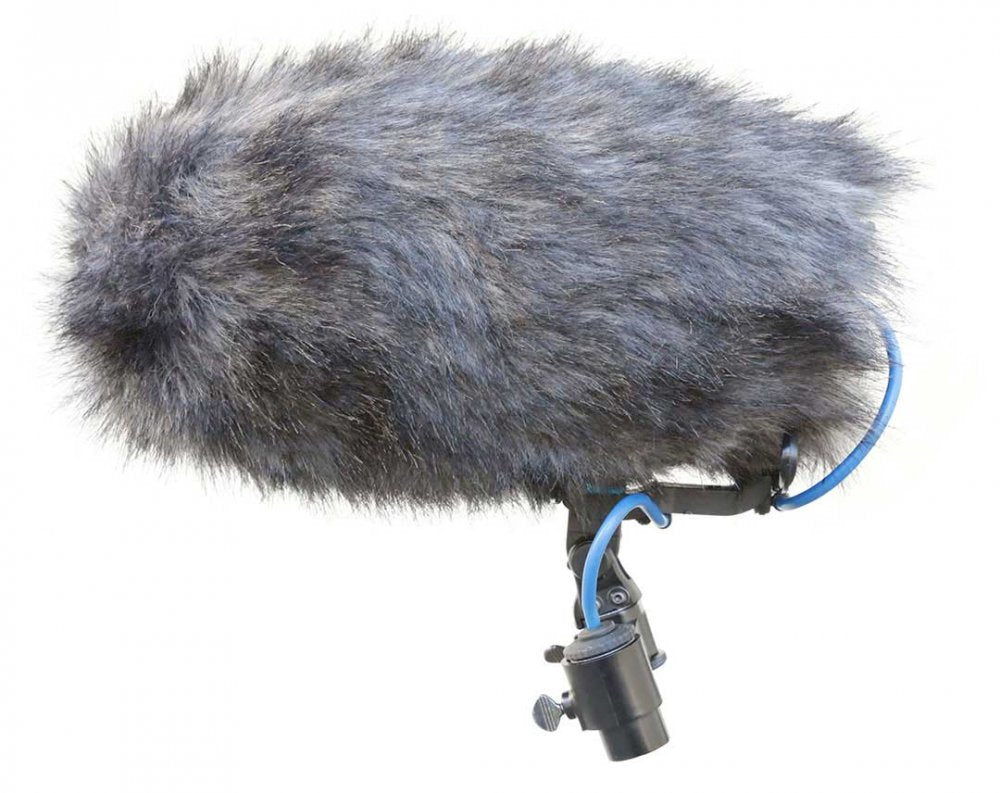

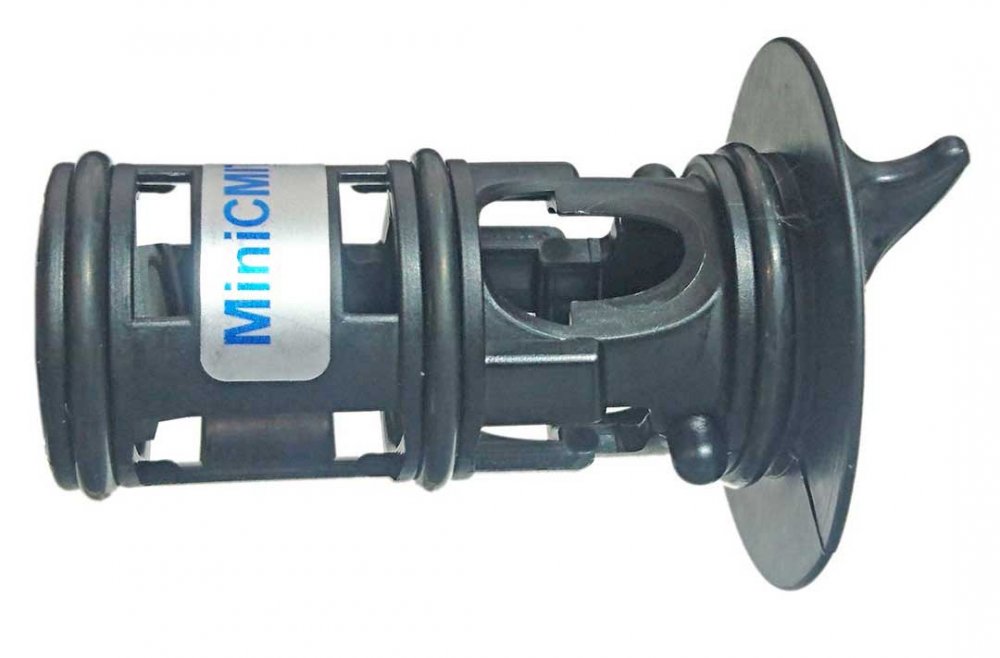

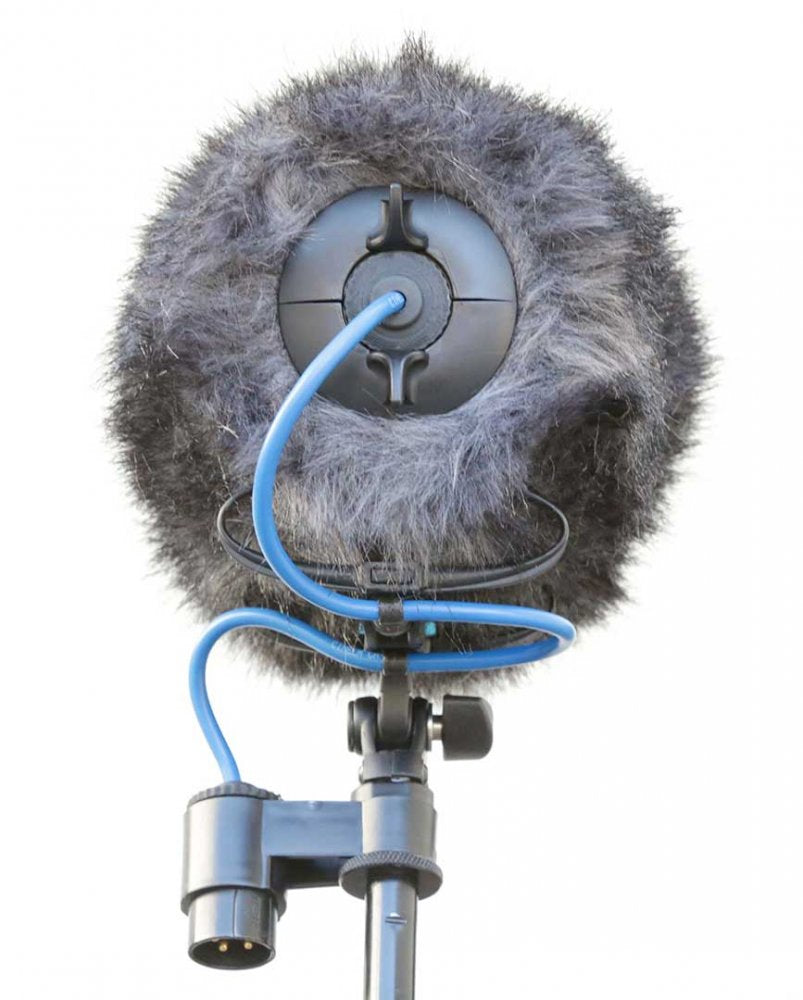

The COSI is a unique, innovative windscreen for short microphones.
The MiniCMIT is protected in an extremely compact form from noise caused by wind and vibration (version L-21).
Miniature Shotgun Microphone
Pickup pattern: Supercardioid / lobe-shaped
Frequency range: 60 Hz - 20 kHz
Sensitivity: -35 dB (V/Pa), 17 mV/Pa
Equivalent noise level (A-weighted): 14 dB
Equivalent noise level (CCIR): 24 dB
Signal-to-noise ratio (A-weighted): 80 dB
Maximum sound pressure level (THD < 0.5 %): 130 dB-SPL (P48), 115 dB-SPL (P12)
Maximum output voltage: 1 V (0 dBV) with 2 k load
Low cut filter: fixed, 70 Hz, 24 dB/oct.
Minimum recommended load impedance: 2 k
Output impedance: 100
Maximum cable length: >100 m
SCHOEPS RFI Shield: Yes
Powering standard / Valid range: P48 / >24 V, P12 / >11 V
Current consumption: 2.3 mA (P48)
Common mode rejection ratio (at 1 kHz): > 55 dB
Output: XLR-3M, analog, 1 channel
Length: 151 mm
Diameter: 21 mm
Weight: 78 g
Surface finish: blue or custom color
1 x MiniCMIT
1 x COSI
Manufacturer Part Number : 178005
