The entire Studio Economik's website is now priced in Canadian Dollars only.

$559.00

Free shipping in Canada. Conditions

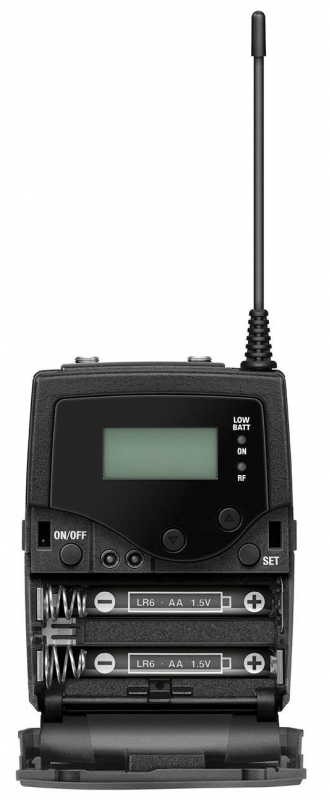

EW 500 G4 is a powerful black camera receiver with increased bandwidth and transmission power for evolution wireless G4 500P Series systems.



For professional film productions, easily mounted on any kind of camera.

Features

  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 meters / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time
  • Specifications

    Frequency range: Aw+: 470-558 MHz
    Dimensions: Approx. 82 x 64 x 24 mm
    Compander: Sennheiser HDX

    What's in the box
  • EK 500 G4 camera receiver
  • 2 AA batteries

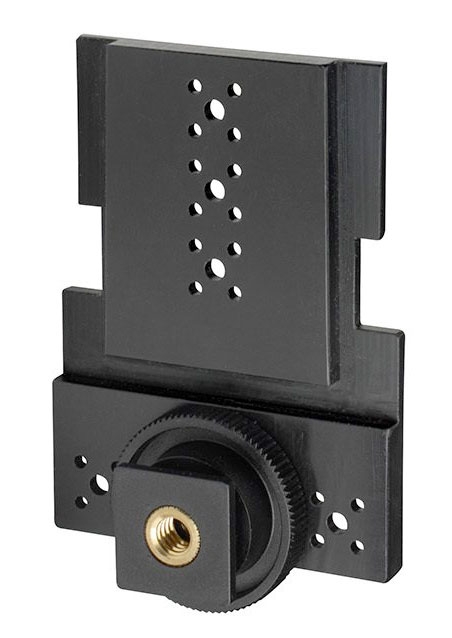

  • CA 2 camera adapter
  • CL 1 3.5 mm jack cable
  • CL 500 XLR to 3.5 mm jack adapter cable
  • quick guide
  • safety guide
  • manufacturer declaration sheet


  • Dimensions: Approx. 82 x 64 x 24 mm
    Compander :Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight (incl. batteries): approx. 130 g
    Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
    Signal-to-noise ratio: Line: 110 dBA, Phones: approx. 90 dBA
    Switching bandwidth: up to 88 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Operating time: Typically 8 h
    Modulation: Wideband FM
    Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

    Current consumption
  • at nominal voltage: typ. 140 mA
  • with receiver switched off: 25 µA

  • Adjacent channel rejection: Typically 65 dB
    Intermodulation attenuation: Typically 65 dB
    Powering: 3 V battery / 2.4 V rechargeable battery

    Receiving frequency
  • Max. 3520 receiving frequencies
  • adjustable in 25 kHz steps
  • 20 frequency banks
  • each with up to 32 factory-preset channels, no intermodulation
  • 6 frequency banks with up to 32 programmable channels

  • RF sensitivity:
