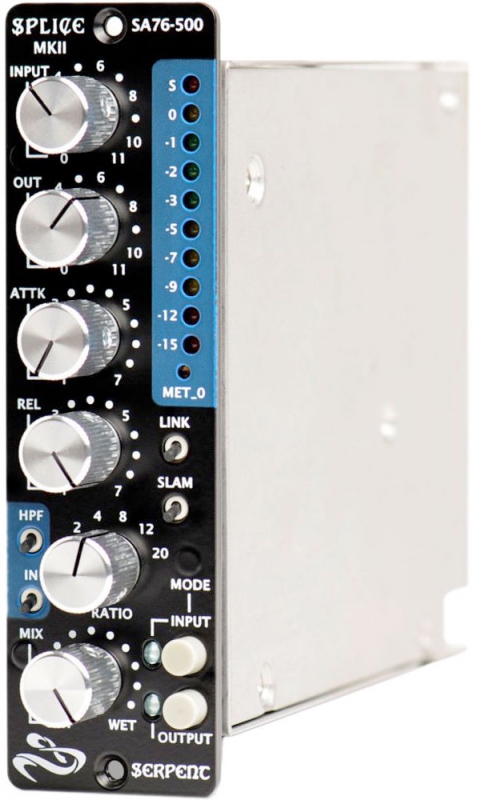

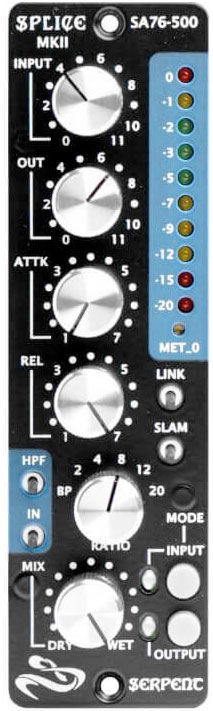

The SPLICE-500™ MKII is a single channel FET based compressor, and can be used for mono applications, or can be paired with a second SPLICE-500™ MKII for stereo applications.



The SPLICE-500™ MKII's unique circuitry mode switching allows the user to configure the input & output audio path circuitry between classic Blackface and Blue Stripe modes, or mix and match the two to create completely new sounds, unique to the SPLICE-500™ MKII.

Size doesn't matter. The Splice-500 packs all of the sound and functionality of the acclaimed Splice MKII rack into a single 500 series module. Faithfully recreating the circuitry and sound of not one, but two classic FET compressors, the Splice-500's unique mode switching allows the user to switch between the classic Blackface or vintage Bluestripe circuits at the push of a button. In addition, the Splice-500 can also mix and match the two for entirely new sounds that can only be found with the Splice (i.e. Blue Input Circuitry + Black Output Circuitry for "Blueface" mode or Black Input Circuitry + Blue Output Circuitry for "Blackstripe" mode.

All units are made in the USA to an exceptional level of craft and workmanship.

Features

Four Compressor circuits in one box
  • Input Circuit Black + Output Circuit Black = "Classic Blackface Mode"
  • Input Blue + Output Blue = "Classic Bluestripe Mode"
  • Input Blue + Output Black = "Blueface Mode" (Unique to the Splice)
  • Input Black + Output Blue = "Blackstripe Mode" (Unique to the Splice)

  • General
  • Stereo Linkable w/ front panel switch
  • "All Buttons In" / Slam Mode front panel switch
  • Integrated Mix/Blend Control w/ switchable bypassing for in-the-box parallel processing
  • Integrated Sidechain High Pass Filter
  • Selectable 600R Output loading allows the user to easily optimize the Splice™ for use with both vintage and modern equipment
  • 45dB of Gain (with no limiting)
  • Attack Time - 20 to 800 Microseconds
  • Release Time - 50 Milliseconds to 1.1 Seconds
  • Compression Ratios - 2:1, 4:1, 8:1, 12:1, 20:1 & Soft Bypass (BP)
  • LED Gain Reduction Meter
  • Backed by a 2 Year Limited Warranty
  • Specifications

  • Maximum Current Consumption: 175mA* @ +/-16V
  • Input: Constant 600R Input Attenuator, Floating Transformer Balanced
  • Output: Floating Transformer Balanced
  • Output (With Mix Enabled): <100 Ohm Output Impedance, Transformer-like
  • Floating Output, Electronically Balanced (Accepts Balanced or Unbalanced Signals)
  • External Send: <100 Ohm Output Impedance, Transformer-like Floating Output,
  • Electronically Balanced (XLR) (Accepts Balanced or Unbalanced Signals)
  • External Return: 22KHz Input Impedance, Electronically Balanced (XLR), (Accepts
  • Balanced or Unbalanced Signals)
  • Maximum Input Level: +30dbu with compression engaged and Input level knob set
  • to max (fully clockwise)
  • Maximum Output Level: +24dbu
  • Output Load: 150 Ohm minimal
  • Gain: 45db (+/-1dbu) with compression disabled (Ratio set to "BP")
  • Gain Reduction Element: FET
  • THD+N: (20Hz-20KHz) Typically 0.5%
  • Signal-To-Noise Ratio: >80dbu
  • Manufacturer Part Number : SPLICE-500MKII
