MPN #SPLDIRECTMK2-RED

$4809.00

Financing available
Free shipping in Canada. Conditions

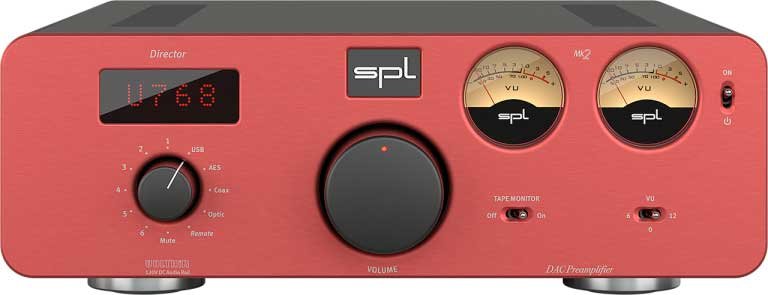

The Director Mk2 is the derivative of our reference preamplifier Director



The all new high voltage digital to analog converter now supports 32 bit and sample rates up to 768kHz as well as DSD4.

Fans of analog tape machines or external audio processing can insert their beloved gear in the Tape Monitor loop.

Now there is a total of six analog inputs. Two of which are balanced with XLR connectors.

The housing has grown in height to provide space for the big aluminum volume control with marker LED and two mechanical VU meters.
  • Director Mk2 (official wording and writing)
  • DA converter and preamplifier
  • 2U housing
  • 120V VOLTAiR DAC filter output and gain staging
  • 6 analog inputs (2x balanced, 4x unbalanced)
  • 4 digital inputs: AES/EBU, USB, COAX, OPTICAL (DAC 32 bit, 768 kHz, DSD4/DSD256)
  • 2 VU meters
  • Rotary switch for input selection
  • Tape Monitor loop
  • Analog Stereo Inputs
    6 analog stereo inputs
    2 x XLR, balanced (10 kOhm)
    4 x RCA, unbalanced (47 kOhm)
    Max. input level: +32,5 dBu

    Digital Inputs
    4 digital inputs
    AES/EBU (XLR), balanced
    Coaxial SPDIF (RCA)
    Optical TOSLINK (F06)
    USB (B)
    0 dBFS = 15 dBu
    Converter Chip AK4490-Velvet Sound

    Sample Rates 32 Bit
    Encoded PCM (kHz): 44.1, 48 , 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768
    DSD: DSD1 (DSD64), DSD2 (DSD128), DSD4 (DSD256)

    Outputs
    2 analog stereo outputs
    Neutrik XLR, balanced, Pin 2 = (+)
    RCA, unbalanced (Direct Out)
    Impedance: 75 ohms (balanced)
    max. output level 32,5 dBu

    Measurements
    Frequency range (analog): 10 Hz (-0.1 dB), 200 kHz (-1.2 dB)
    Crosstalk at 1 kHz: -108 dB (analog); -108 dB (digital)
    THD: 0.00992 % (analog 0 dBu); 0.0014 % (digital -1 dBfs)
    Noise (A-weighted): -102.5 dB (analog); -100.2 dB (digital)
    Dynamic range: 135 dB (analog); 115.2 dB (digital)

    Internal Voltages
    Analog: +/- 60 V
    Digital: + 7 V and + 3.3 V

    Power Supply
    Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz
    Fuses: 230 V: T 500 mA; 115 V: T 1 A
    Power consumption: max. 40 VA
    Standby power consumption: 0.7 W

    Dimensions (incl. feet)
    278 mm W x 100 mm H x 330 mm D
    10.95 in W x 3.94 in H x 13 in D

    Weight
    4.55 kg; 10.03 lbs (unit only)
    5.7 kg; 12.57 lbs (shipping)
