SPL Elector (Red)
UPC/EAN #4260149322173
MPN #1934
The SPL Elector is based on the Director Mk2 and designed as a pure analog preamplifier.

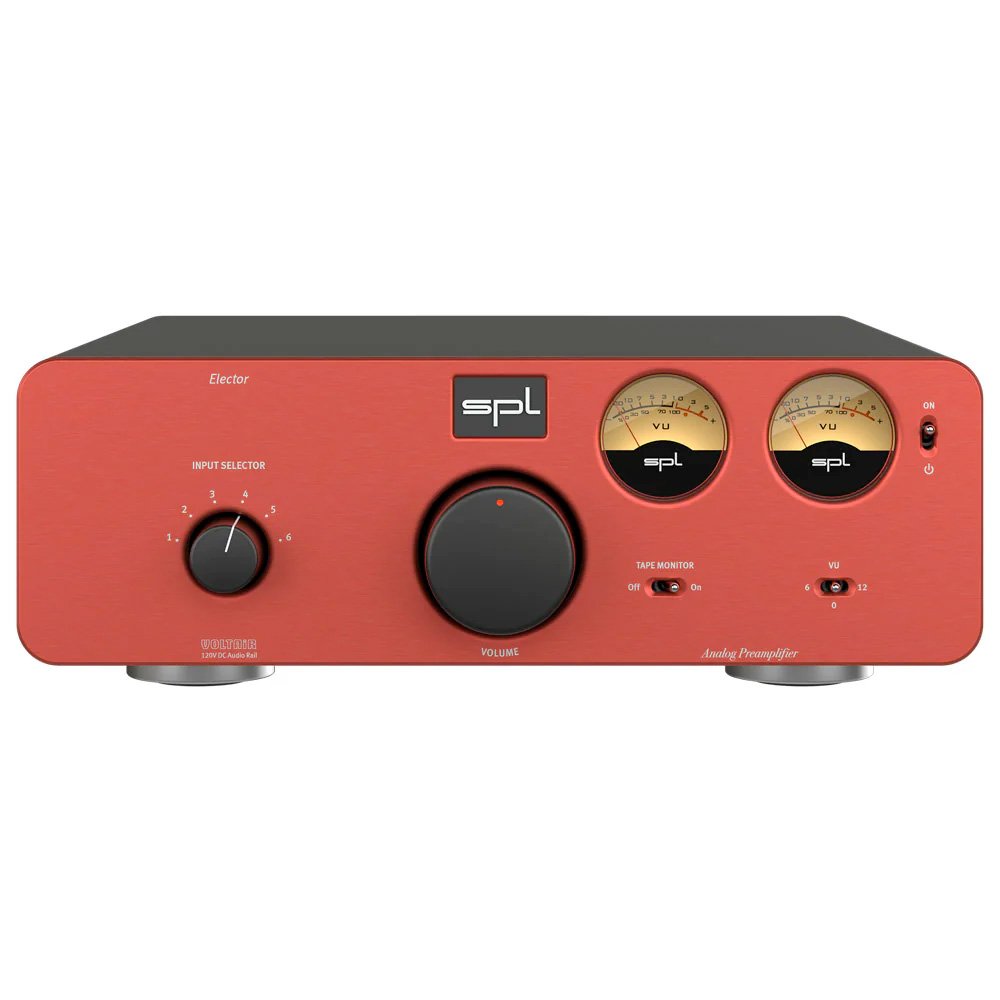

It features a total of six analog inputs. Three of which are balanced with XLR connectors. The Elector is equipped with the big remote controllable aluminum volume control with marker LED and two mechanical VU meters.
External audio processors or analog tape machines can be inserted in the Tape Monitor loop.
Features
The Elector is the pure analog version of the Director Mk2.
In case you have a DA converter for your streamer or computer or you are not a fan of digitally stored music the Elector is the perfect choice for you.
Tape machines and cassette recorders, record and CD players can be connected via standard RCA sockets or via balanced XLR connectors.
The ideal completion to the Elector is the phono preamp Phonos.
A headphone amplifier like the Phonitor xe or the Phonitor e can be connected to the Direct Out.
And power amplifiers like the Performer s800 or Performer m1000 or active loudspeakers are connected to the Preamp Output.
Specifications

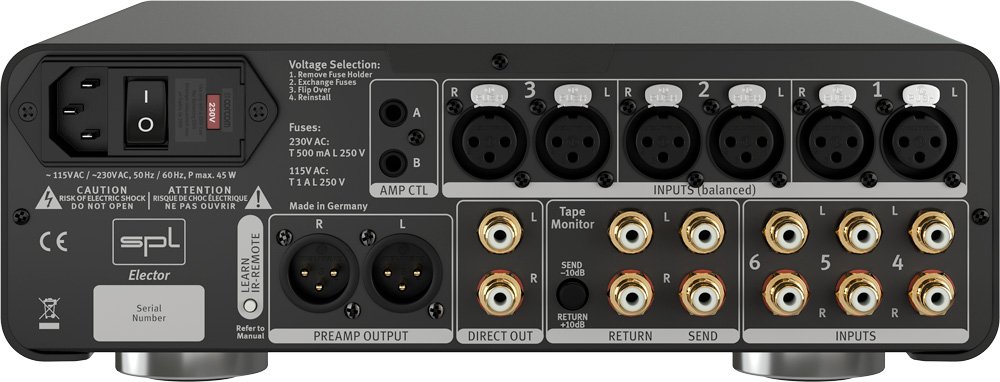

Analog Stereo Inputs
6 analog stereo inputs
3 x XLR, balanced (10 kOhm)
3 x RCA, unbalanced (47 kOhm)
Max. input level: +32,5 dBu
Outputs
2 analog stereo outputs
Neutrik XLR, balanced, Pin 2 = (+)
RCA, unbalanced (Direct Out)
Impedance: 75 ohms (balanced)
max. output level 32,5 dBu
Measurements
Frequency range: 10 Hz (-0.1 dB), 200 kHz (-1.2 dB)
Crosstalk at 1 kHz: -108 dB
THD: 0.00992 %
Noise (A-weighted): -102.5 dB
Dynamic range: 135 dB
Internal Voltages
Analog: +/- 60 V
Power Supply
Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz
Fuses: 230 V: T 500 mA; 115 V: T 1 A
Power consumption: max. 40 VA
Standby power consumption: 0.7 W
Dimensions (incl. feet)
278 mm W x 100 mm H x 337 mm D
10.95 in W x 3.94 in H x 13.27 in D
Weight
4.25 kg; 9.37 lbs (unit only)
5.4 kg; 11.9 lbs (shipping)
