The entire Studio Economik's website is now priced in Canadian Dollars only.

$1792.00

Free shipping in Canada. Conditions

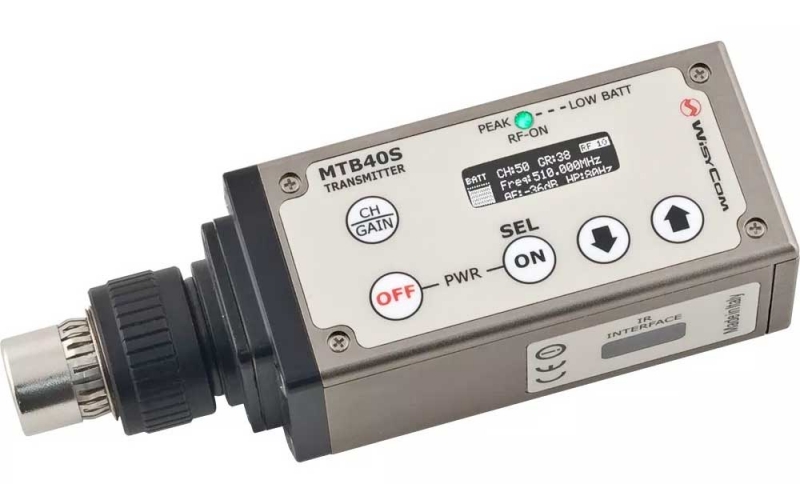

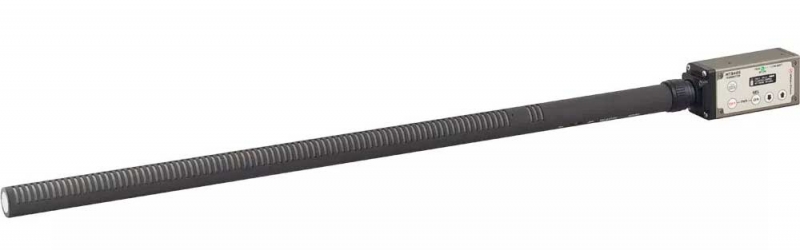

MTB40S is an extremely small and light plug-on transmitter especially designed for professional wireless microphone applications.



MTB40S benefit of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation.

Improved features:
  • New white OLED display
  • New XLR locking system
  • Integrated HW limiter
  • Features

  • Up to 232 MHz bandwidth in 470/798 MHz range
  • Enhanced robustness against self-interferences and antenna performances thru a proprietary "intermodulation cancellation" circuit
  • Miniature design with flexible pcb (no connectors) for extended reliability
  • User selectable companding systems
  • ENR (noise optimized)
  • ENC (voice optimized)
  • Input dynamic extension with an integrated HW limiter (30 dB above peak)
  • P48 phantom power for condenser microphones
  • New white OLED display (128 x 32 pixels)
  • New XLR-3F connector with locking collar to ensuring an extremely tight noiseless fit!
  • Infrared interface for management and firmware update
  • Audio input circuitry with high linearity audio transformer
  • Battery: 2 AA Alkaline or rechargeable NiMH or Lithium
  • Specifications

    Frequency ranges
  • B5 option: 470 ÷ 654 MHz
  • B3 option: 510 ÷ 698 MHz
  • B2 option: 566 ÷ 798 MHz

  • Switchable channels
  • 2400 managed in 40 groups ofr 60 frequencies completely user customizable

  • Switching-window
  • Up to 232 MHz, depending on band (see Variants below)

  • Frequencies
  • Quartz PLL frequency synthesizer circuit (25 kHz step)

  • Frequency error
  • ± 2.5 ppm, in the rated temperature range

  • RF Power
  • switchable typ. 10 mW / 50 mW /100 mW
  • note: in some countries high power can be disabled, for local norm!

    Modulation
  • wideband FM, with pre-emphasis

  • Nominal deviation
  • ±40 kHz

  • Peak deviation
  • ±56 kHz

  • Spurious emissions
  • < 2 nW

  • Telemetry feature
    TX transmits also a digitally modulated sub-carrier, suitable for:
  • tone-squelch operating
  • remote battery monitoring
  • optional PTT (push to talk) operation

  • Noise Reduction system
  • ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise optimized
  • ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice optimized & with reduced pre-emphasys

  • AF bandwidth
  • 45 Hz ÷ 21 KHz (3dB)
  • 55 Hz ÷ 20 KHz (1dB)

  • Distortion
  • < 0.3 % (0.15 % typ.)

  • SND/D ratio (Analogue)
  • typ. 115 dB (A)rms with 40kHz deviation
  • typ. 121 dB (A)rms with 56kHz deviation

  • Audio input connector
  • XLR-3F (transformer isolated) with locking collar and 48V phantom power

  • Audio input level
  • 100 dB adjustable range from -54 dBu (775 uV) to 46 dBu (15.5 V) at peak deviation (1 kHz), adjustable in 1 dB steps

  • Max input level
  • +46 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level

  • LED
    RGB led indication with (red, green and blue):
  • Wireless transmission status: GREEN on/RED off
  • Battery lifetime status: GREEN steady (> 25%), slowly blinking (< 25%), quickly blinking (<12%)
  • Modulation peek (if activated & the limiter is disabled): RED
  • Limiter into action: Blue

  • Battery lifetime indication
    8 steps:
  • 7 bars (100%-87%-75%-63-50%-38%-25%) and "empty bar" quickly blinking (12% remaining)

  • Display
  • High contrast OLED (Organic light-emitting diode) white display (128 x 32 pixels)

  • Power supply
  • 2 AA size cell (Alkaline, rechargeable NiMH or Lithium)

  • Temperature range
  • -10 ÷ +55 °C

  • Dimensions
  • 124 x 40 x 34 mm (HxWxD)

  • Weight
  • Approx. 210 g. without batteries (250g with batt)
  • Reviews

    $1792.00

    Free shipping in Canada. Conditions
