NEUTRIK

NC3FXX-WT

Connecteurs

3-pole female XLR connector, white shell, silver contacts, low resistance cage design, strain relief, latch lock, 16 A rated, IP40, -30 °C to +80 °C.

$10.15 CAD
Frais de livraison calculés lors du paiement.
Parlez à nos experts
Notre équipe d'experts est là pour vous accompagner.

Livraison et expédition

Livraison gratuite au Canada pour les commandes de plus de 200 $. Des conditions s'appliquent. Voir les détails ici .

Financement

Affirm

Divisez votre achat en paiements mensuels faciles, avec une approbation rapide et sans frais cachés.
Cliquez ici pour plus d'informations.

Equilease

Idéal pour les achats plus importants, Equilease propose des solutions de financement personnalisées adaptées aux besoins de votre entreprise.
Cliquez ici pour plus d'informations.

Retours et politique

Vous pouvez consulter nos conditions générales ici

Description

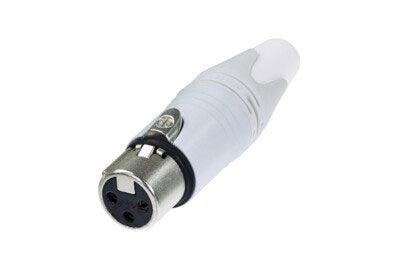

The Neutrik NC3FXX-WT is a 3-pole female XLR cable connector designed for professional audio applications, featuring a white painted housing and silver-plated contacts. As part of Neutrik's next-generation XX series, it builds on the trusted X series with enhanced durability, improved contact integrity, and easier assembly which makes it a dependable choice for stage, studio, and installation use.

Key enhancements include a unique cage contact design for low resistance, an improved solid metal latch for easier handling, and additional ground spring contacts for better shell grounding. Its chuck-type strain relief system ensures secure cable retention, while the polyurethane boot protects against bending stress. With an ergonomic design, rugged zinc diecast shell, and compatibility with cables from 3.5 to 8 mm in diameter, the NC3FXX-WT combines performance and reliability in a sleek, color-coded format.

Caractéristiques

Secure XLR Connection
Reliable 3-pole female connector with latch lock for stable mic and audio cable connections.

Improved Contact Design
Unique cage-style female contact ensures low resistance and strong electrical connection.

Solid Metal Latch
Larger, easy-to-grip latch for improved handling during setup and teardown.

Enhanced Grounding
Additional spring contacts improve shell-to-ground continuity for reduced noise.

High Pull-Out Force
Chuck-style strain relief increases durability and makes assembly faster and easier.

Bend Protection
Polyurethane boot protects the cable against stress and bending.

Durable Construction
White-painted zinc diecast housing is tough, dependable, and easy to identify.

Color Coding Options
Boot and rings are available in different colors for easy channel or application identification.

Safe and Compliant
Rated for up to 16A and <50V, flame-retardant (UL 94 V-0), and compliant with IEC standards.

Temperature Resistant
Performs in harsh conditions with a wide operating range from -30 °C to +80 °C.

Spécifications

General Specifications
Product Name: NC3FXX-WT
Connector Type: 3-Pole Female XLR Cable Connector
Housing Finish: White Painted
Contact Plating: 2 µm Silver (Ag)
Shell Material: Zinc Diecast (ZnAl4Cu1)
Locking Device: Latch Lock
Design Series: Successor to the Neutrik X Series

Key Features
Unique cage contact design for low resistance
Solid metal latch, ergonomic and larger
Solder barrier on female contacts
Ground spring contacts for enhanced shell continuity
Polyurethane boot for cable bend protection
Improved strain relief with higher pull-out force
Internal shell thread protection
Color-coded rings/boots (optional)
Genuine Neutrik hologram branding

Electrical Specifications
Capacitance Between Contacts: ≤ 4 pF
Contact Resistance: ≤ 3 mΩ
Dielectric Strength: 1.5 kV DC
Insulation Resistance: > 10 GΩ
Rated Current per Contact: 16 A
Rated Voltage: < 50 V

Mechanical Specifications
Cable Outer Diameter Compatibility: 3.5 – 8.0 mm
Insertion Force: ≤ 20 N
Withdrawal Force: ≤ 20 N
Mating Cycles: < 1000
Wire Size (Max): 2.5 mm² / 14 AWG

Materials
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA66)
Strain Relief: Polyacetal (POM)
Boot: Polyurethane
Locking Element: Zinc Diecast (ZnAl4Cu1) / Ck 67 Spring
Locking Element Plating: Nickel

Environmental Specifications
Flammability: UL 94 V-0
Standard Compliance: IEC 61076-2-103
Protection Class: IP40
Solderability: IEC 68-2-20 Compliant
Operating Temperature Range: –30 °C to +80 °C
