AUDIO-TECHNICA

ATW-CHG6

Batteries & Power Distribution

Two-bay charging station, handheld and body-pack transmitter support, AC or PoE+ power, linked expansion, network monitoring, flexible mounting

$849.00 CAD
Frais de livraison calculés lors du paiement.
Vous souhaitez être alerté(e) lorsque cet article sera en solde ?

Livraison & Expédition

Livraison gratuite au Canada pour les commandes de plus de 200 $. Des conditions s'appliquent. Voir les détails ici .

Financement

Flexiti

Profitez d'options de financement flexibles, y compris un financement à 0 % sur certains produits. Demande rapide et plans de paiement pratiques disponibles.
Cliquez ici pour plus d'informations.


Affirm

Répartissez votre achat en paiements mensuels faciles, avec une approbation rapide et sans frais cachés.
Cliquez ici pour plus d'informations.


Equilease

Idéal pour les achats importants, Equilease propose des solutions de location personnalisées adaptées aux besoins de votre entreprise.
Cliquez ici pour plus d'informations.

Retours et politique

Vous pouvez consulter nos conditions générales ici

Description

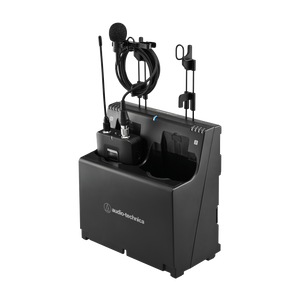

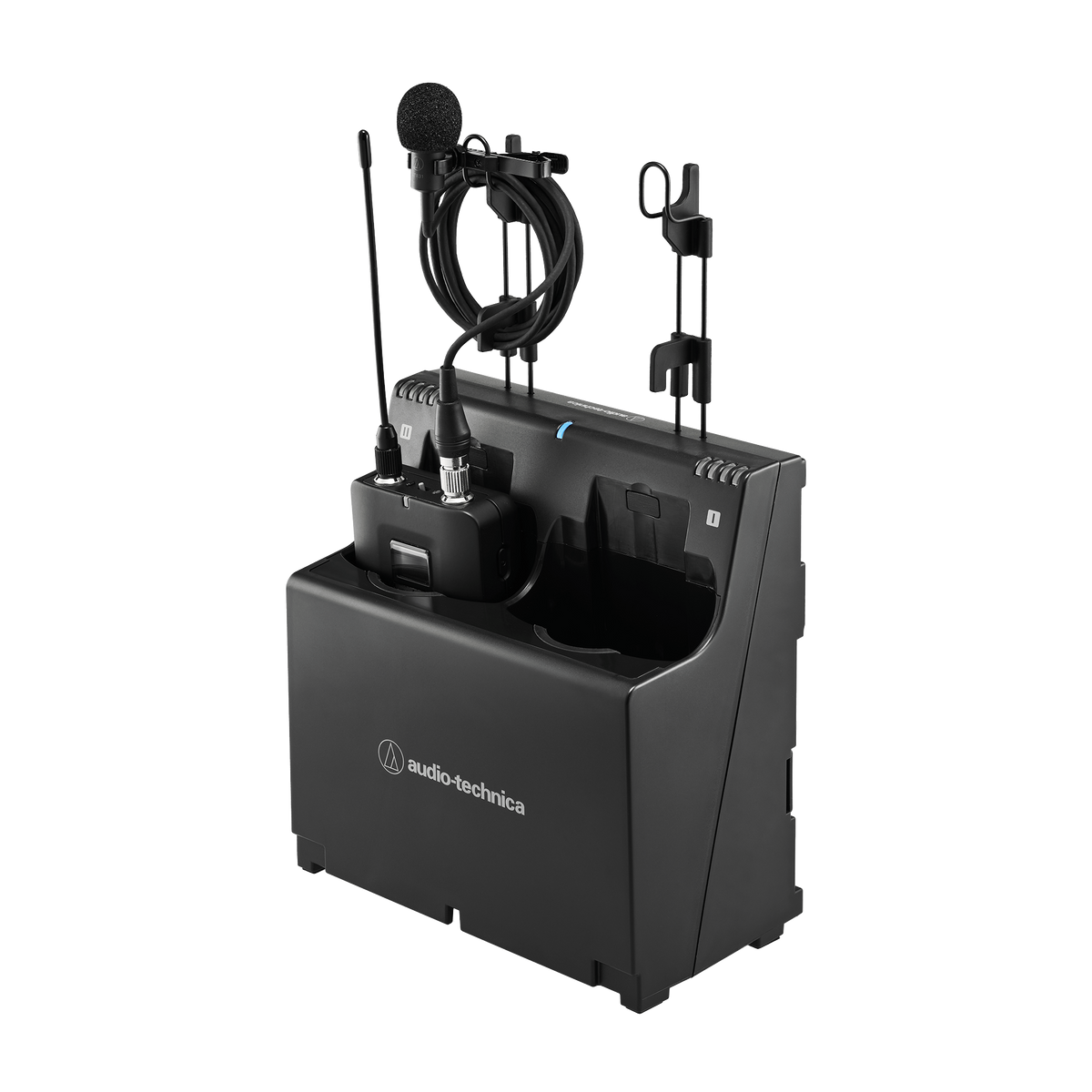

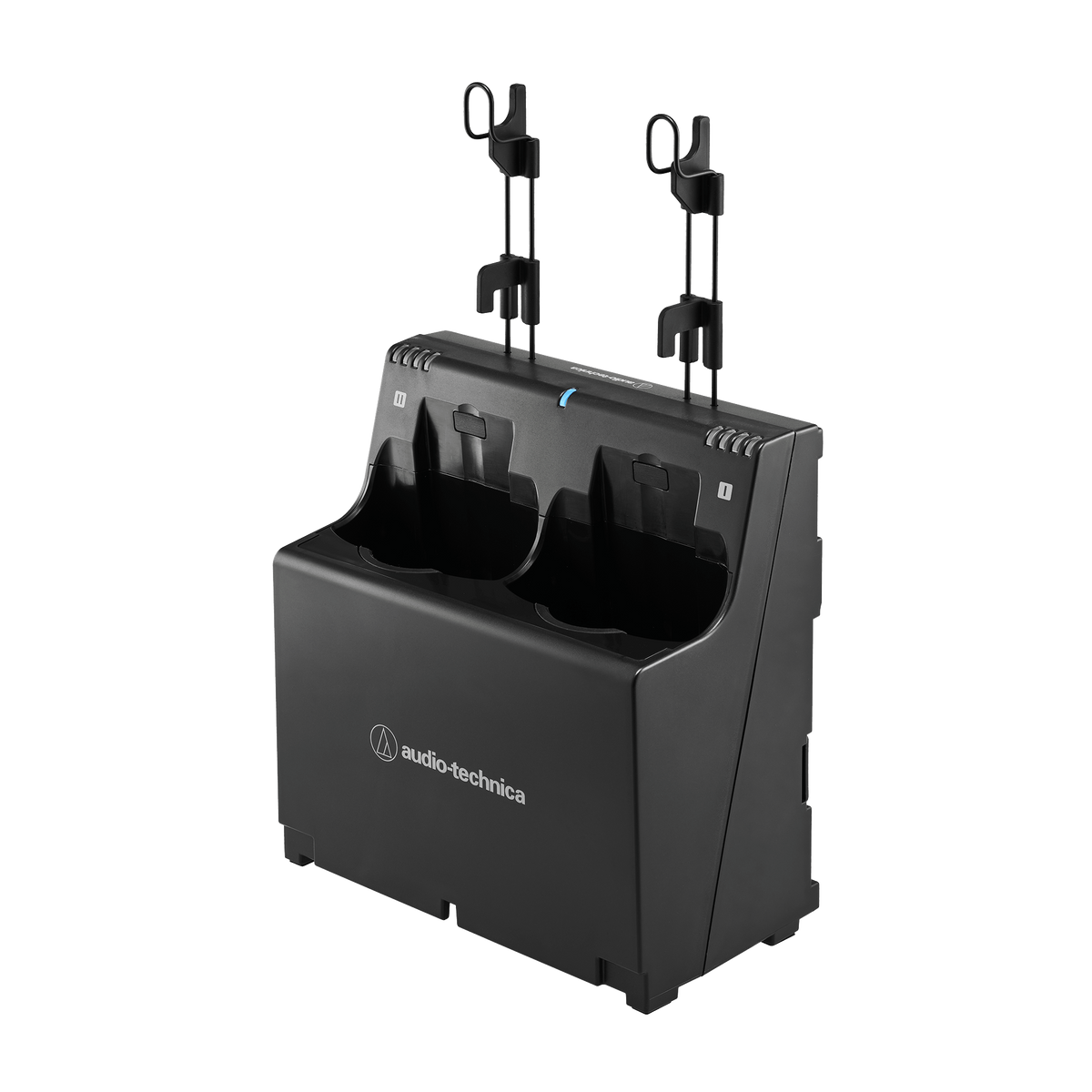

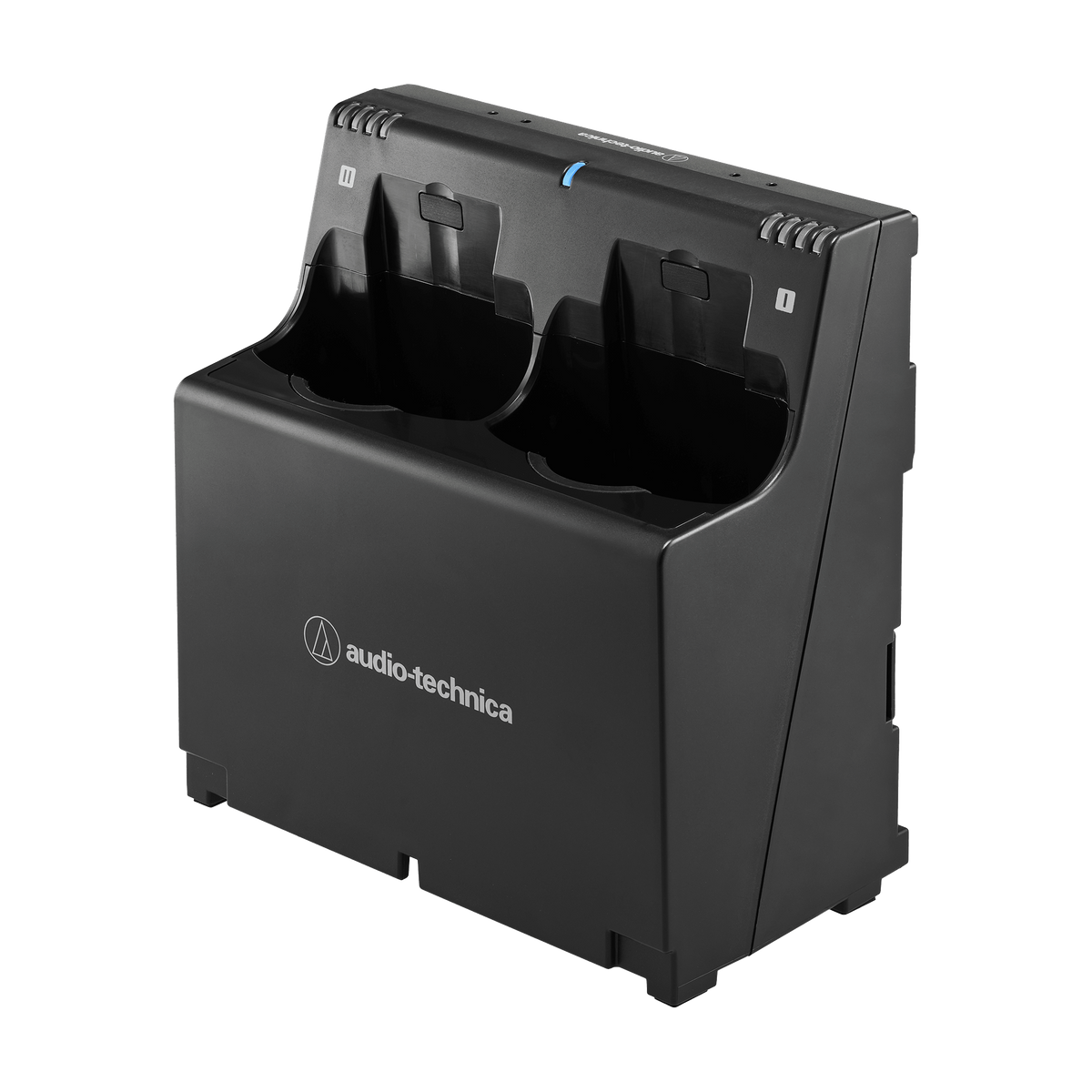

Cette station de recharge à deux baies permet de recharger de façon organisée les émetteurs de poche et à main du système sans fil D50, ainsi qu’une batterie individuelle compatible. Les voyants avant indiquent la progression de la recharge et le niveau des batteries, tandis que le logiciel Wireless Manager assure une surveillance à distance pratique et prend en charge les mises à jour du micrologiciel des émetteurs installés sur la station.

Plusieurs stations peuvent être reliées par câble Cat5e afin d’augmenter la capacité de recharge, au moyen d’un adaptateur secteur partagé ou de l’alimentation PoE+. Les options de montage flexibles permettent une installation verticale ou horizontale sur un rack, un mur ou toute autre surface appropriée, tandis qu’un plateau de montage en rack offert en option permet d’installer plusieurs stations dans un espace de rack compact. Les supports de microphone inclus offrent un rangement pratique pour les microphones-cravates.

Caractéristiques

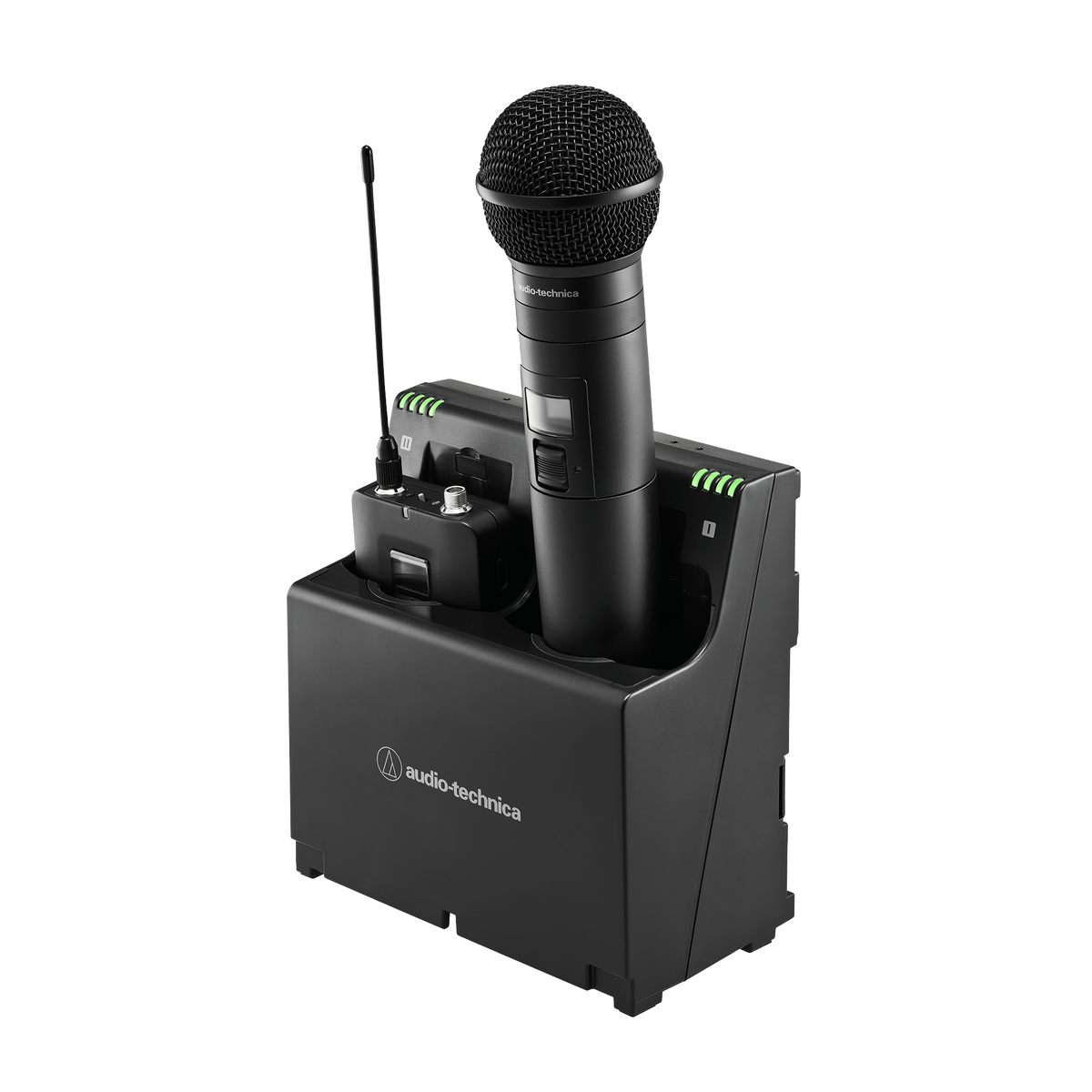

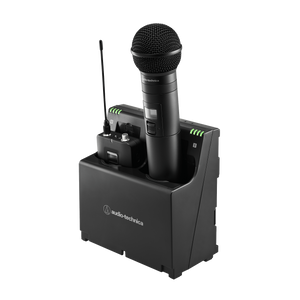

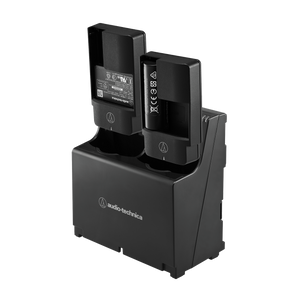

Dual Transmitter Charging
Charges compatible body-pack and handheld transmitters in the same station.

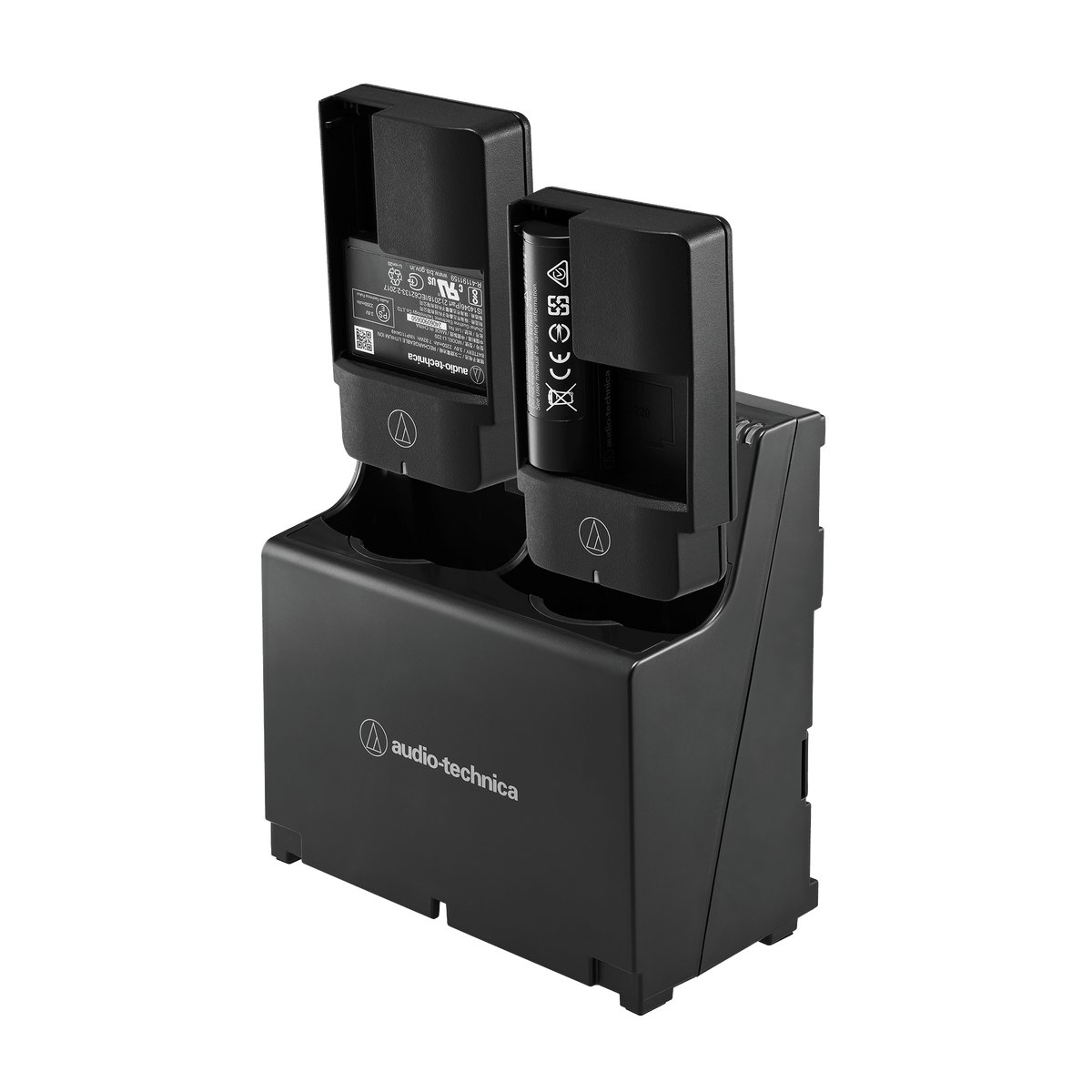

Battery Charger Support
Accepts a compatible single-battery charger for additional flexibility.

Expandable Charging
Links with additional matching stations for larger wireless systems.

Flexible Power Options
Supports operation through a compatible AC adapter or PoE+ connection.

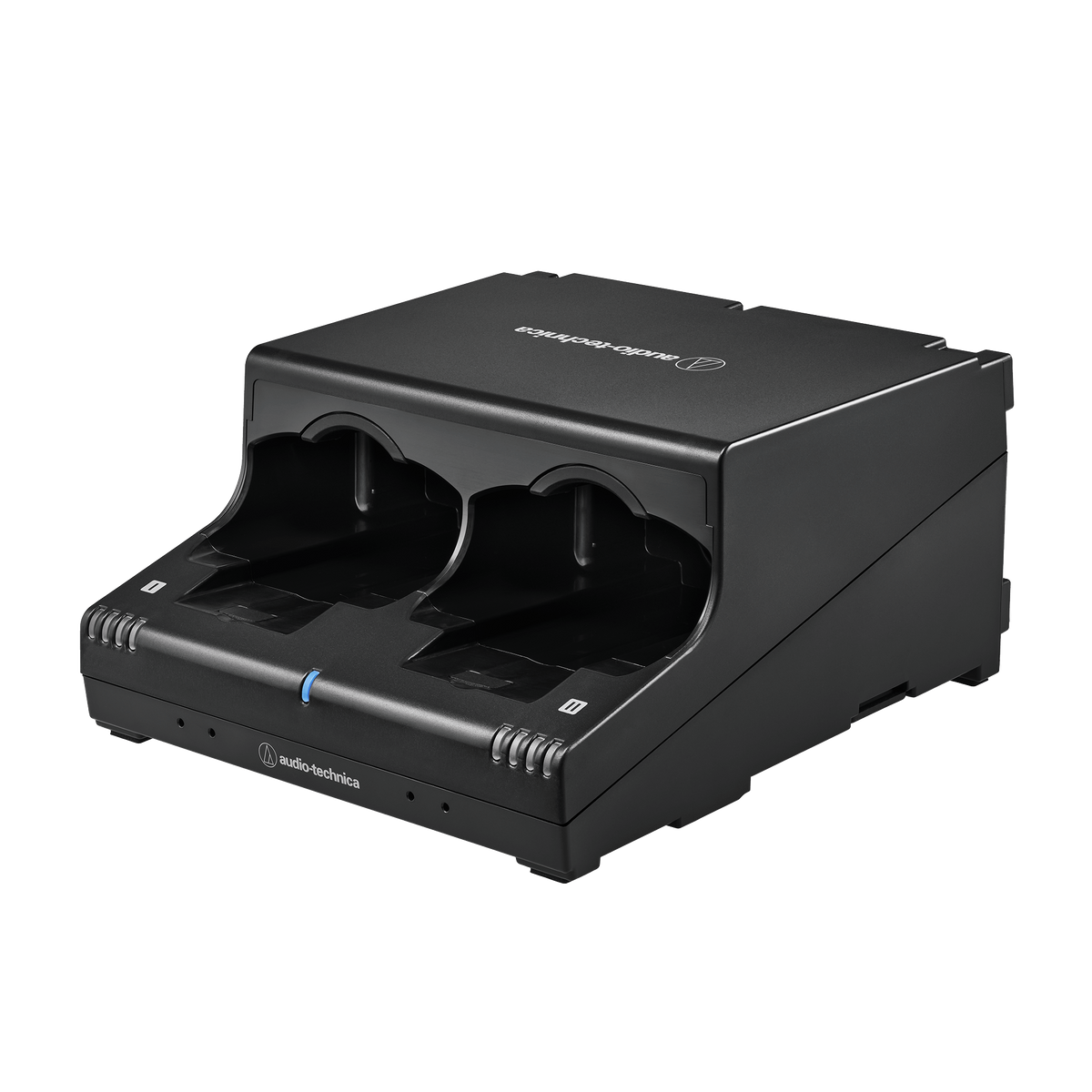

Charging Status Indicators
Front indicator lamps provide a clear view of charging progress and battery levels.

Software Monitoring
Charging information can be viewed remotely through Wireless Manager.

Docked Firmware Updates
Supports transmitter firmware updates while units remain in the charging bays.

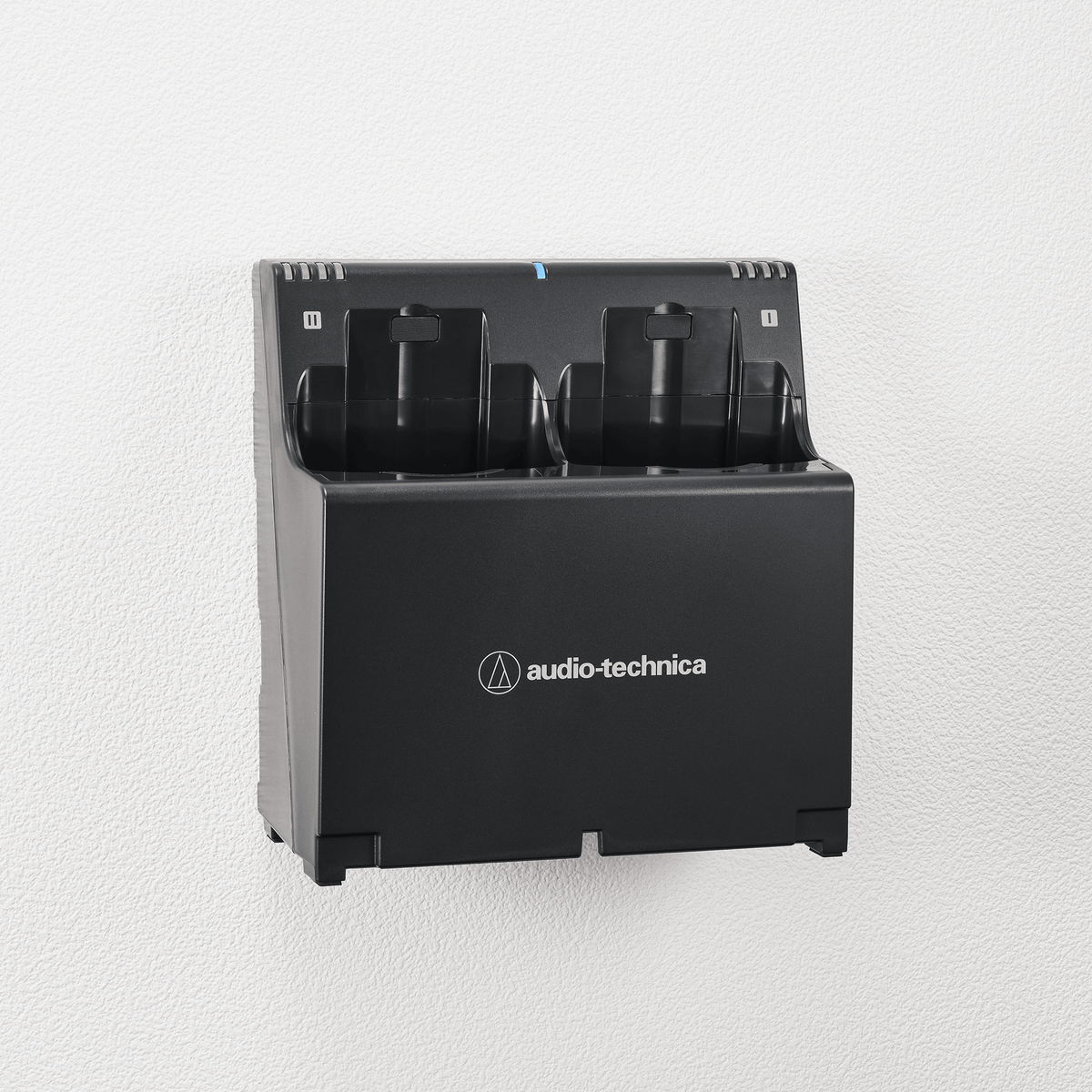

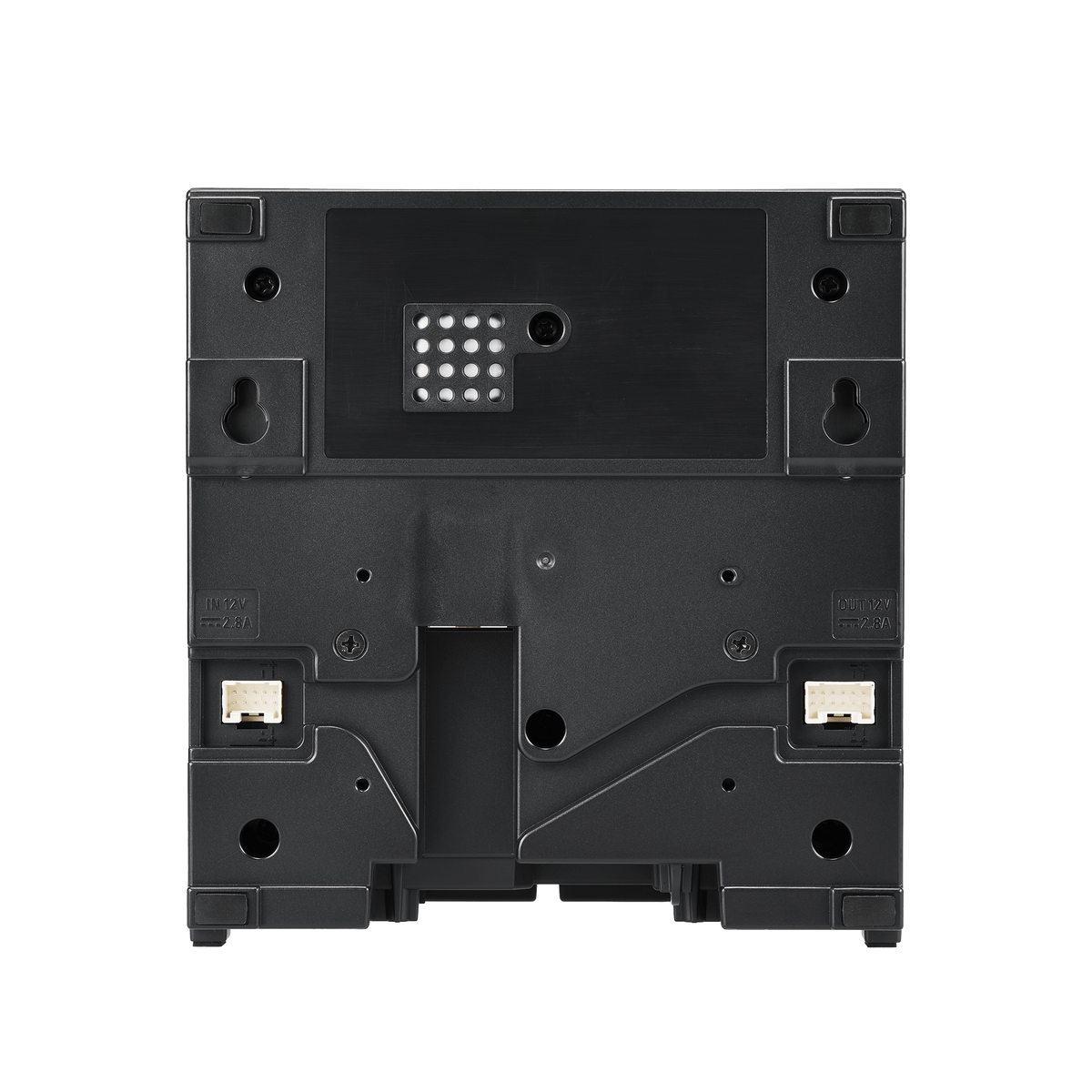

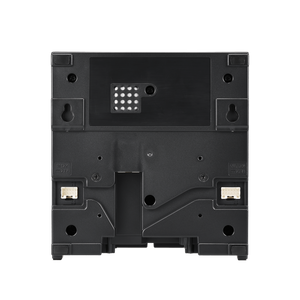

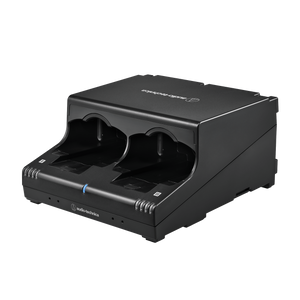

Flexible Installation
Mounts vertically or horizontally on racks, walls, and other suitable surfaces.

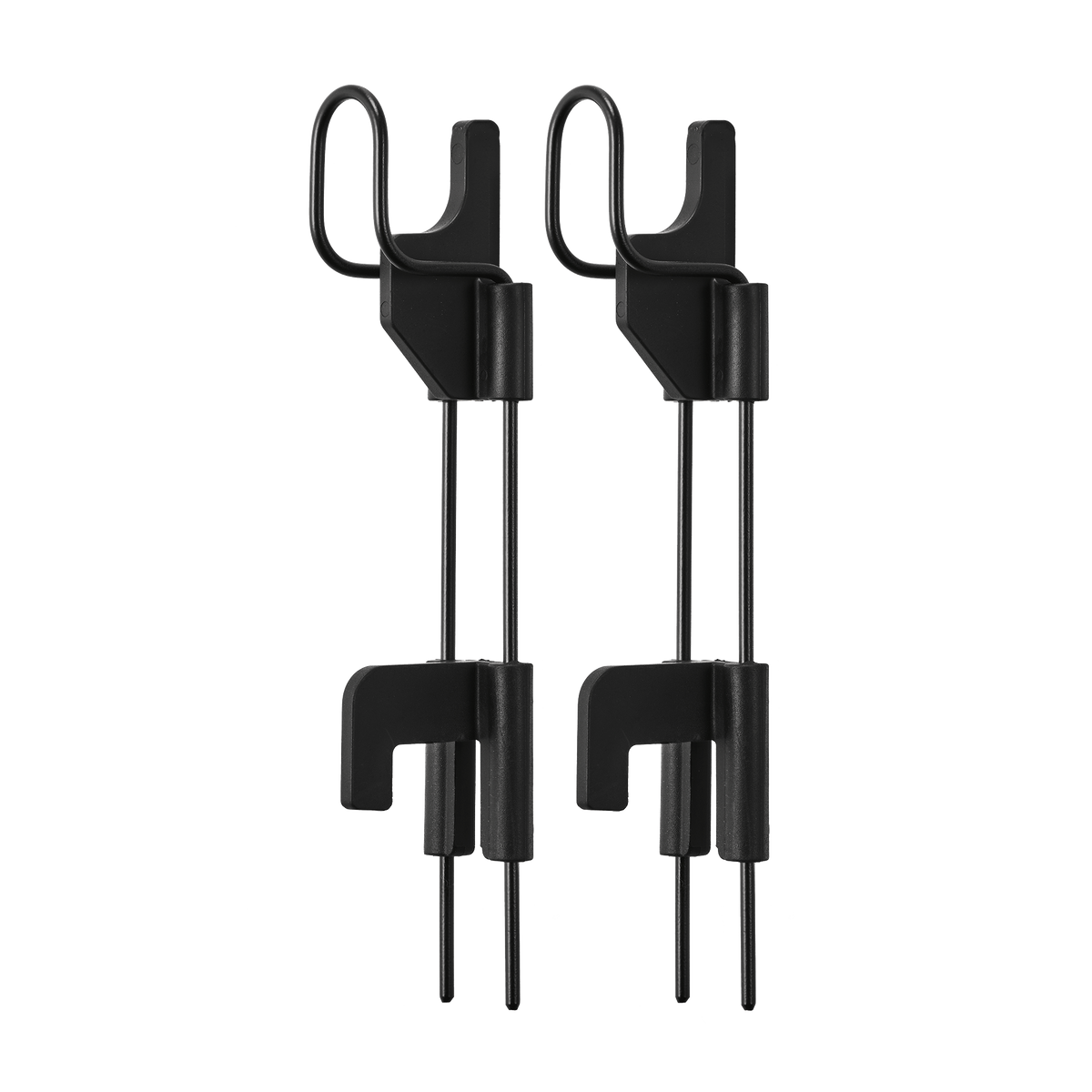

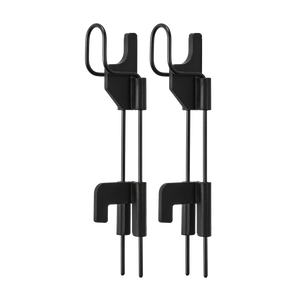

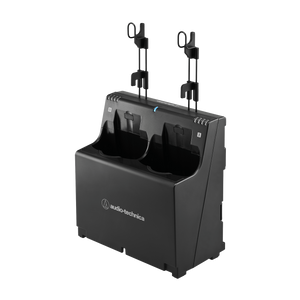

Microphone Storage
Included hangers provide a convenient place to store lavalier microphones.

Spécifications

General Specifications
Device Type: Two-bay transmitter charging station
Charging Bays: 2
Compatibility: D50 body-pack transmitters, D50 handheld transmitters, compatible single-battery charger
Charging Status Monitoring: Front LED indicators, Wireless Manager software
Battery Level Monitoring: Front LED indicators, Wireless Manager software
Docked Firmware Updates: Supported

Station Linking
Connection Type: Cat5e
Maximum Stations with AC Power: 4
Maximum Capacity with AC Power: 8 transmitters
Maximum Stations with PoE+ Power: 3
Maximum Capacity with PoE+ Power: 6 transmitters
Shared Power Support: Supported

Power Specifications
DC Power Supply: 12 V DC, 3.0 A
Network Power: PoE+
Maximum Power Consumption with AC Adapter: 15 W (51 Btu/h) when charging two transmitters
Maximum Power Consumption with PoE+: 16 W (55 Btu/h) when charging two transmitters
Energy-Saving Mode Output: 12 V, 0.2 A

AC Adapter Charging Output
One to Four Transmitters: 5 V, 1.1 A
Five to Six Transmitters: 5 V, 0.8 A
Seven to Eight Transmitters: 5 V, 0.5 A

PoE+ Charging Output
One to Two Transmitters: 5 V, 1.1 A
Three to Six Transmitters: 5 V, 0.5 A

Body-Pack Transmitter Charging Time
AC Power, One to Four Transmitters: Approximately 2 hours 30 minutes
AC Power, Five to Six Transmitters: Approximately 3 hours 10 minutes
AC Power, Seven to Eight Transmitters: Approximately 5 hours
PoE+ Power, One to Two Transmitters: Approximately 2 hours 30 minutes
PoE+ Power, Three to Six Transmitters: Approximately 5 hours
Energy-Saving Mode: Approximately 5 hours

Handheld Transmitter Charging Time
AC Power, One to Four Transmitters: Approximately 3 hours 50 minutes
AC Power, Five to Six Transmitters: Approximately 5 hours
AC Power, Seven to Eight Transmitters: Approximately 7 hours 10 minutes
PoE+ Power, One to Two Transmitters: Approximately 3 hours 50 minutes
PoE+ Power, Three to Six Transmitters: Approximately 7 hours 10 minutes
Energy-Saving Mode: Approximately 7 hours 10 minutes

Network Specifications
Network Speed: 100 Mbps

Mounting Specifications
Mounting Orientation: Vertical or horizontal
Mounting Locations: Rack, wall, other suitable surface
Optional Rack Configuration: 3 charging stations in 2U rack space

Environmental Specifications
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 55°C (-4°F to 131°F)
Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake, rear exhaust

Physical Specifications
Dimensions: 145.6 × 78.3 × 154 mm (5.7 × 3.1 × 6.1 in), W × D × H
Weight: 678 g (24 oz)

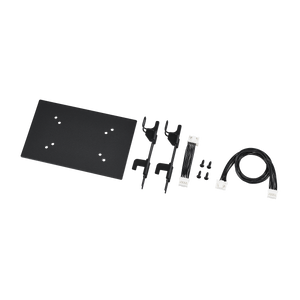

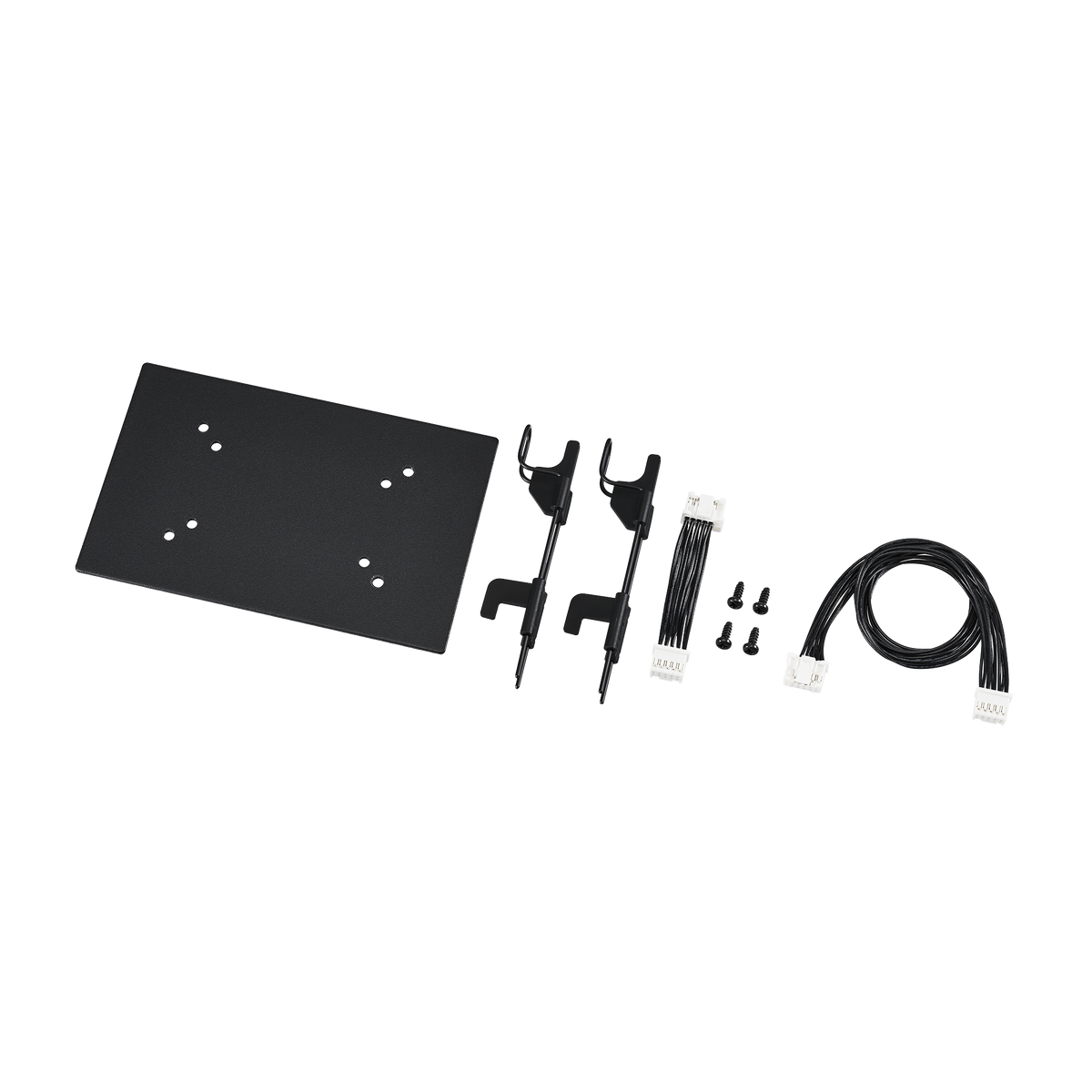

Included Items
Charging Station: 1
Mounting Plate: 1
Lavalier Microphone Hangers: 2
Link Cables: Included
Link Plate: 1
Link Plate Screws: Included
