STUDIO TECHNOLOGIES

Model 206

Announcer console, Dante and AES67 support, analog and digital audio, main plus 3 talkback outputs, 2-channel headphone output, PoE powered


$1,495.00 CAD
Frais de livraison calculés lors du paiement.

Parlez à nos experts
Notre équipe d'experts est là pour vous soutenir.

Livraison & Expédition

Livraison gratuite au Canada pour les commandes de plus de 200 $. Des conditions s'appliquent. Voir les détails ici .

Financement

Affirm

Divisez votre achat en paiements mensuels faciles, avec une approbation rapide et sans frais cachés.
Cliquez ici pour plus d'informations.

Equilease

Idéal pour les achats plus importants, Equilease propose des solutions de financement personnalisées adaptées aux besoins de votre entreprise.
Cliquez ici pour plus d'informations.

Retours et politique

Vous pouvez consulter nos conditions générales ici

Description

La console d'annonceur Model 206 est une interface de diffusion compacte conçue pour offrir aux talents à l'antenne un moyen simple et fiable de gérer le microphone, le talkback et l'audio casque dans une petite unité de table. Conçue pour des environnements tels que la diffusion sportive, l'eSports, les événements en direct, le streaming et les espaces de production où l'espace est limité, elle combine le réseau audio Dante avec une connectivité microphone analogique directe pour une intégration flexible dans des configurations modernes et traditionnelles. Son boîtier en acier robuste et sa disposition de commandes simple la rendent parfaitement adaptée à un déploiement rapide dans des environnements professionnels exigeants.

Cette console est conçue pour créer une position d'annonceur efficace à utilisateur unique avec une configuration minimale. Un microphone, un casque et une connexion réseau PoE suffisent pour démarrer, tandis que les commandes principales et de talkback permettent une communication rapide et intuitive pendant la production en direct. La section casque est particulièrement adaptable, offrant aux utilisateurs plusieurs options de monitoring pour les signaux de repérage, programme et sidetone afin de s'adapter à une large gamme de flux de travail sans complexité d'utilisation.

Avec d'excellentes performances audio, une construction fiable et la prise en charge de Dante, AES67 et la configuration STcontroller, le Model 206 offre une solution pratique pour les productions nécessitant des résultats professionnels dans un encombrement très réduit. Il convient parfaitement aux diffuseurs et aux équipes techniques recherchant une console d'annonceur compacte et épurée qui délivre un son clair, un routage flexible et un fonctionnement quotidien fiable.

Caractéristiques

Dante and Analog Integration
Works smoothly in both networked audio and traditional analog setups, making it easy to fit into many broadcast workflows.

Single-Person On-Air Solution
Creates a complete announcer position with just network power, a microphone, and headphones.

Main and Talkback Routing
Gives the user one main output and three separate talkback paths for clear communication during production.

Flexible Headphone Monitoring
Offers multiple monitoring options so users can hear cue, program, and sidetone in ways that match the production setup.

Compact Tabletop Design
Its small footprint makes it especially useful in tight broadcast spaces and crowded event positions.

Direct Microphone Output
Provides a direct mic connection for feeding cameras, consoles, or other connected gear alongside Dante audio.

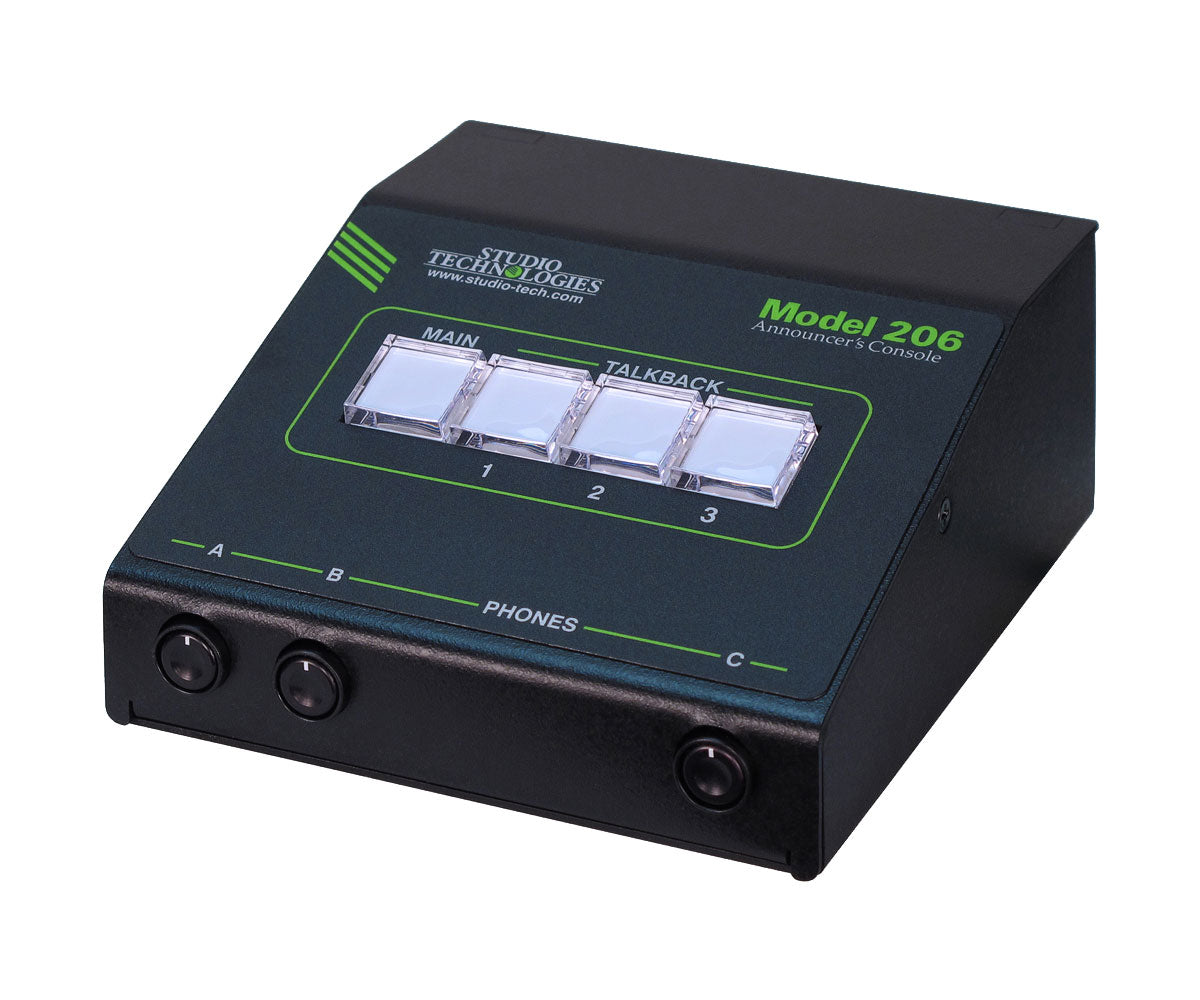

Simple Pushbutton Control
Main and talkback functions are easy to operate with dedicated buttons designed for fast use during live productions.

Remote Control Support
Can work with external switches and also support tally-style operation for added workflow flexibility.

Clear, Professional Audio
Designed to deliver clean, reliable sound with strong overall audio performance for broadcast use.

Supports Dynamic and Condenser Mics
Handles a range of microphone types, making it adaptable to different announcer and production needs.

Software-Based Configuration
Uses STcontroller for setup, allowing the unit to be tailored quickly for different users and applications.

Reliable Network-Powered Operation
Runs from PoE, which simplifies setup by carrying power and audio through a single network connection.

Spécifications

General Specifications
Device Type: Announcer’s Console
Application: Broadcast Sports, eSports, Live Event, Entertainment, Streaming Broadcast
Enclosure: Rugged Steel
Deployment: Tabletop
Configuration Software: STcontroller Personal Computer Application
Power Source: Power-over-Ethernet (PoE), IEEE 802.3af Class 2, ≤6.49 W

Network Audio
Audio Network Technology: Dante Audio-over-Ethernet
AES67 Support: AES67-2018
Dante Domain Manager Support: Yes
Bit Depth: Up to 24-Bit
Sample Rates: 44.1 kHz, 48 kHz
Dante Transmitter Channels: 4
Dante Receiver Channels: 4
Dante Audio Flows: 4 Total, 2 Transmit and 2 Receive

Network Interface
Ethernet Type: 100BASE-TX Twisted-Pair Ethernet with PoE Support
Data Rate: 100 Mb/s
Gigabit Ethernet Support: Not Supported
Ethernet Connector: Neutrik etherCON RJ45

Microphone Input
Microphone Compatibility: Dynamic or Phantom-Powered Microphones
Input Type: Balanced, Capacitive Coupled
Input Impedence: 3.1 kΩ Nominal
Gain Settings: 35 dB, 43 dB, 52 dB, 59 dB
Frequency Response: 25 Hz – 20 kHz, -3 dB
Distortion (THD+N): <0.018% at 35 dB Gain
Dynamic Range: 98 dB, A-Weighted
Phantom Power: P48 per IEC 61938, On/Off Selectable with Status LED

Compressor
Application: Dante Main and Talkback Transmitter Channels
Threshold: 1 dB Above Nominal Level (-19 dBFS)
Ratio: 2:1
Status Indicator: Compressor Active LED

Microphone Output
Output Type: Passive via Two 200 Ω Resistors from Microphone Input
Phantom Power Pass-Through: Supported in Either Direction
Muting: Solid-State Relay Contacts, 60 dB Attenuation @ 1 kHz

Headphone Output
Output Type: 2-Channel Stereo
Compatibility: Stereo or Monaural Headphones, Headsets, or Earpieces, 50 Ω or Greater
Maximum Output Voltage: 3.0 Vrms, 1 kHz, 150 Ω Load
Frequency Response: 20 Hz – 20 kHz, +0/-1 dB
Distortion (THD+N): <0.008%
Dynamic Range: >102 dB
Headphone Monitoring Modes: 5 Configurable Modes
Sidetone: Configurable, 4 Choices

Remote Control & Tally
Remote Control Inputs: 2
Remote Input Function: Configurable, Can Mimic Main and Talkback Button Functions
Remote Input Type: Active Low, 1 mA Maximum, Pulled Up to 3.3 V DC via 3.4 kΩ Resistors
Main Out Tally Function: Follows Main Output Status
Main Out Tally Type: Active High, 3.3 V DC in Series with 142 Ω Resistor, 23 mA Maximum
Shared Hardware Limitation: Remote Control Input 1 and Main Out Tally Share One Hardware Pin

Controls & Operation
Main Output Channels: 1 Main, 3 Talkback Outputs
User Controls: 4 Pushbutton Switches, 3 Push-In/Push-Out Rotary Level Potentiometers
System Modes: 3 Overall Operating Modes
Button LED Colors: Red and Green, Configurable Behavior

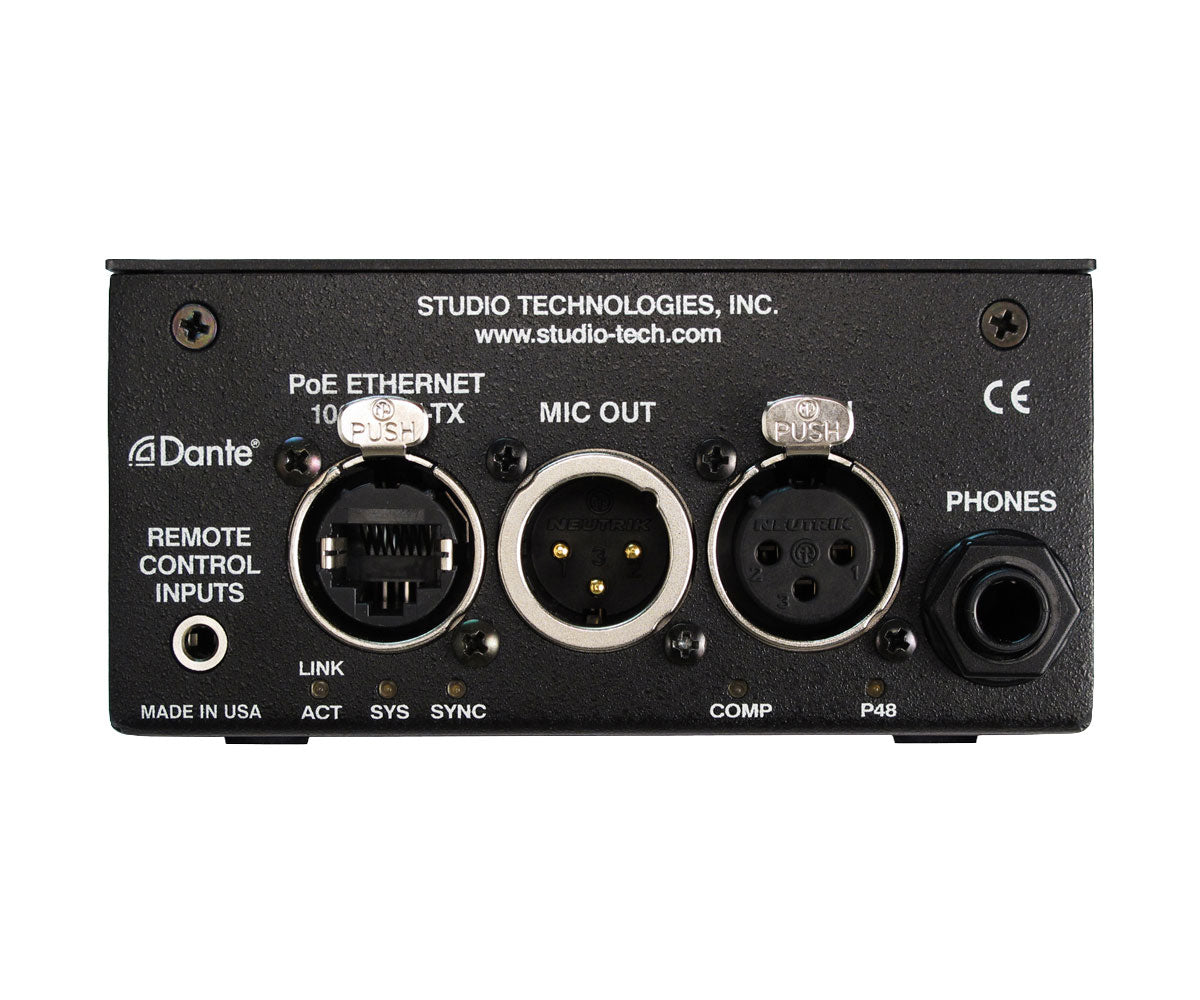

Connectors
Microphone Input: 3-Pin Female XLR
Microphone Output: 3-Pin Male XLR
Headphone Output: 3-Conductor 1/4-Inch Jack
Remote Control Input: 3-Conductor 3.5 mm Jack
USB: Type-A Receptacle, Internal, Firmware Update Only

Physical Specifications
Width: 4.3 in (10.9 cm)
Height: 2.1 in (5.4 cm)
Depth: 5.1 in (13.0 cm)
Weight: 1.2 lb (0.55 kg)
