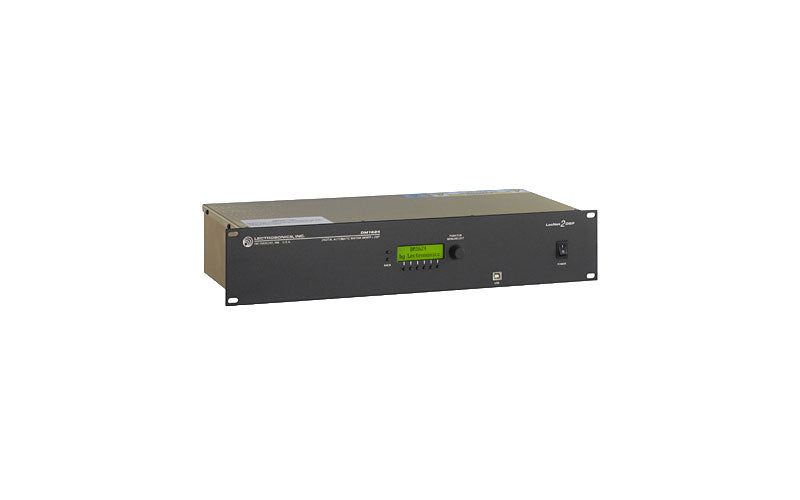

DM1624F

16x24 Digital Matrix Processor
Routes any combination of 16 mic/line inputs to 24 outputs with adjustable gain at every crosspoint.

Advanced DSP on All Channels
Each input features 6 filters, compressor, delay, and automatic digital feedback elimination (ADFE); each output includes 9 filters, compressor/limiter, and delay.

Proportional Gain Auto Mixing
Uses patented AutoSkew™ to eliminate gating artifacts and comb filtering in multi-mic environments.

Output-Level Mixing Flexibility
Each output has its own NOM (Number of Open Microphones) bus, allowing tailored mixes for each destination.

Mic/Line Switchable Outputs
8 of the 24 outputs can be switched to mic level for direct connection to other audio devices or recorders.

Full DSP Availability
All processing functions are always available without DSP limitations thanks to Optimized Architecture™.

Extensive Automation with Macros
Store up to 128 macros, each supporting up to 64 commands for powerful system automation.

Robust Control and Integration
USB, RS-232, and Ethernet interfaces support LecNet2, AMX®, Crestron®, and third-party control.

Expandable with Daisy Chaining
Digital I/O ports allow connection with other LecNet2 devices for larger system builds.

Reliable Performance with Fan Cooling
Continuous fan cooling ensures stable operation in demanding installations.

General Specifications
Device Type: Digital Matrix Audio Processor
Model: Lectrosonics DM1624F
Matrix Configuration: 16 Inputs / 24 Outputs
Expandable: Supports daisy-chaining with other LecNet2 devices
Cooling System: Continuous Fan Cooling
Control Compatibility: AMX®, Crestron™, LecNet2, Third-Party Control
Macro Capability: 128 Macros, up to 64 Commands per Macro
Control Interfaces: USB, RS-232
Remote Software: LecNet2 (Windows-based)
Latency: Minimal, even in stacked systems

Audio Processing
Input Channels:
– 16 Mic/Line Balanced Inputs
– Per Channel: 6 Filters, Compressor, ADFE (Automatic Digital Feedback Elimination), Delay
Output Channels:
– 24 Outputs (8 Switchable to Mic Level)
– Per Channel: 9 Filters, Compressor, Limiter, Delay

Matrix Mixing:
– Full 16x24 DSP-Based Crosspoint Matrix
– Matrix Gain Range: –69 dB to +20 dB (1 dB steps)
– Auto Mixing: Proportional Gain Algorithm with AutoSkew
– Independent NOM Bus per Output

Input/Output Specifications
Input Type: Balanced Mic/Line
Output Type: Balanced Line (8 Switchable to Mic Level)
Mic Outputs: Usable for recording devices or external interfaces
Signal Routing: Any input to any/all outputs with independent processing

System Features
Mixing Algorithm: Patented Proportional Gain Auto Mixing with AutoSkew™ (US Patents 5,414,776 and 5,402,500)
Output Behavior: Inputs can participate differently in each output mix
Signal Path Flexibility: Modules (e.g., filters, compression) can be engaged/disengaged per channel

Physical Specifications
Form Factor: 1U Rackmount
Cooling: Active (Continuous Fan)
Weight: Not specified
Box Dimensions: 24 x 14.5 x 6.1 in
Package Weight: 9.25 lbs

Included Accessories
1 x Power Cord (Part #21499)
1 x Interconnect Cable – Black (Part #21529-1)
1 x Interconnect Cable – Red (Part #21710-1)
2 x 25-Pin Female Connectors (Part #21558)
20 x 5-Position Plug (Part #21580)
1 x USB Cable (Part #21713)
2 x CAT5 Cable (Part #21716)
1 x Adjustment Tool (Part #35679)
1 x LecNet2 Software CD
1 x Manual
