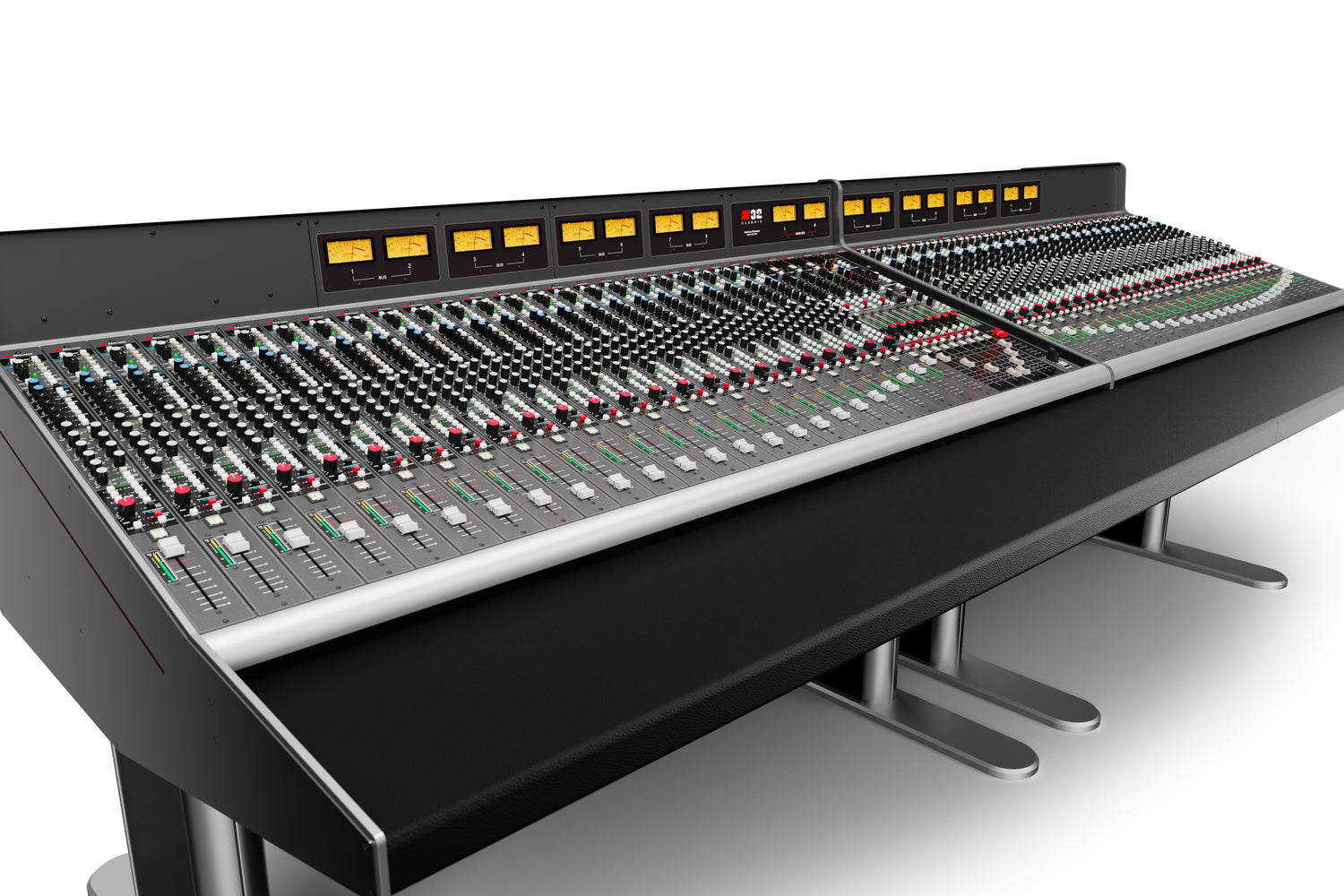

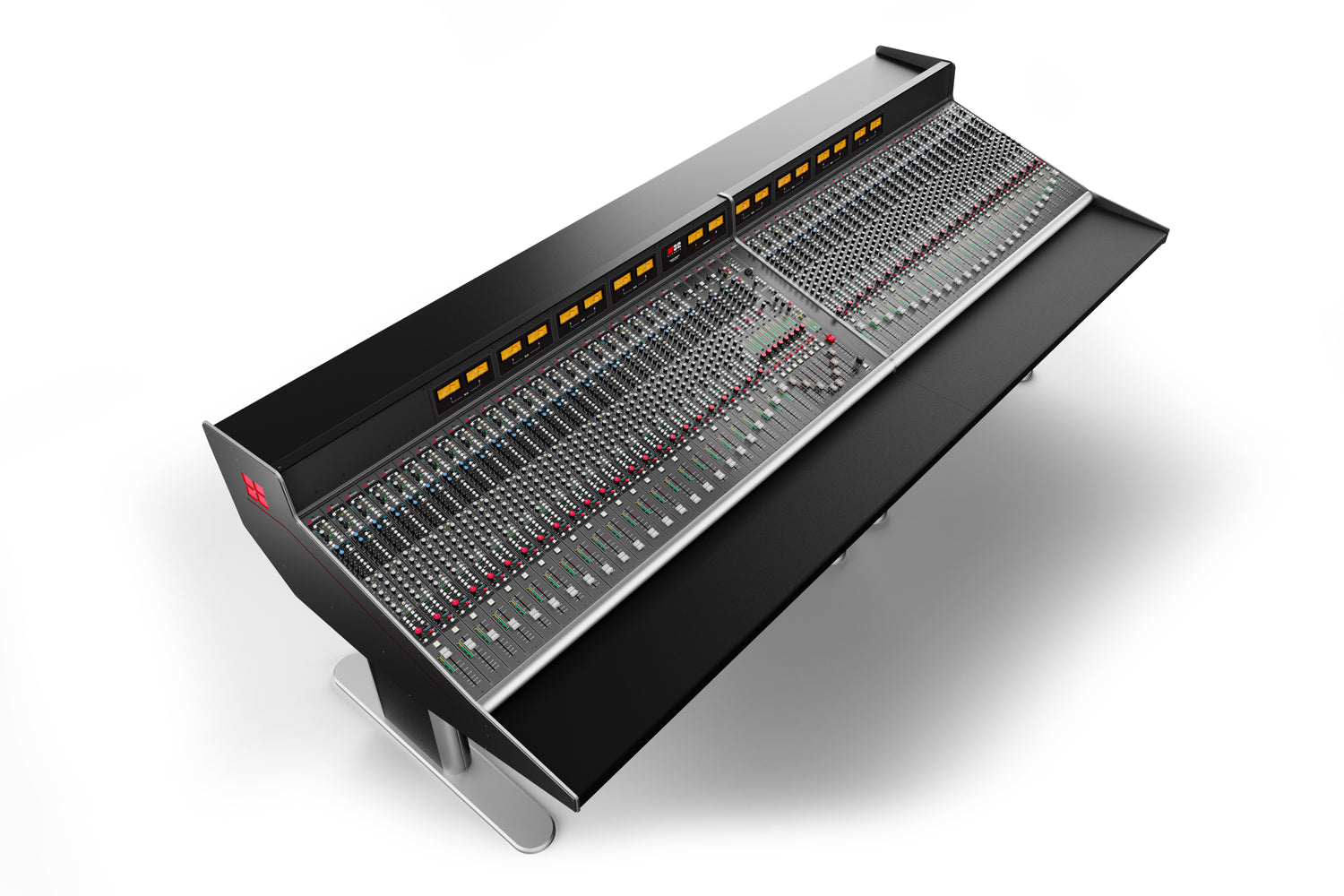

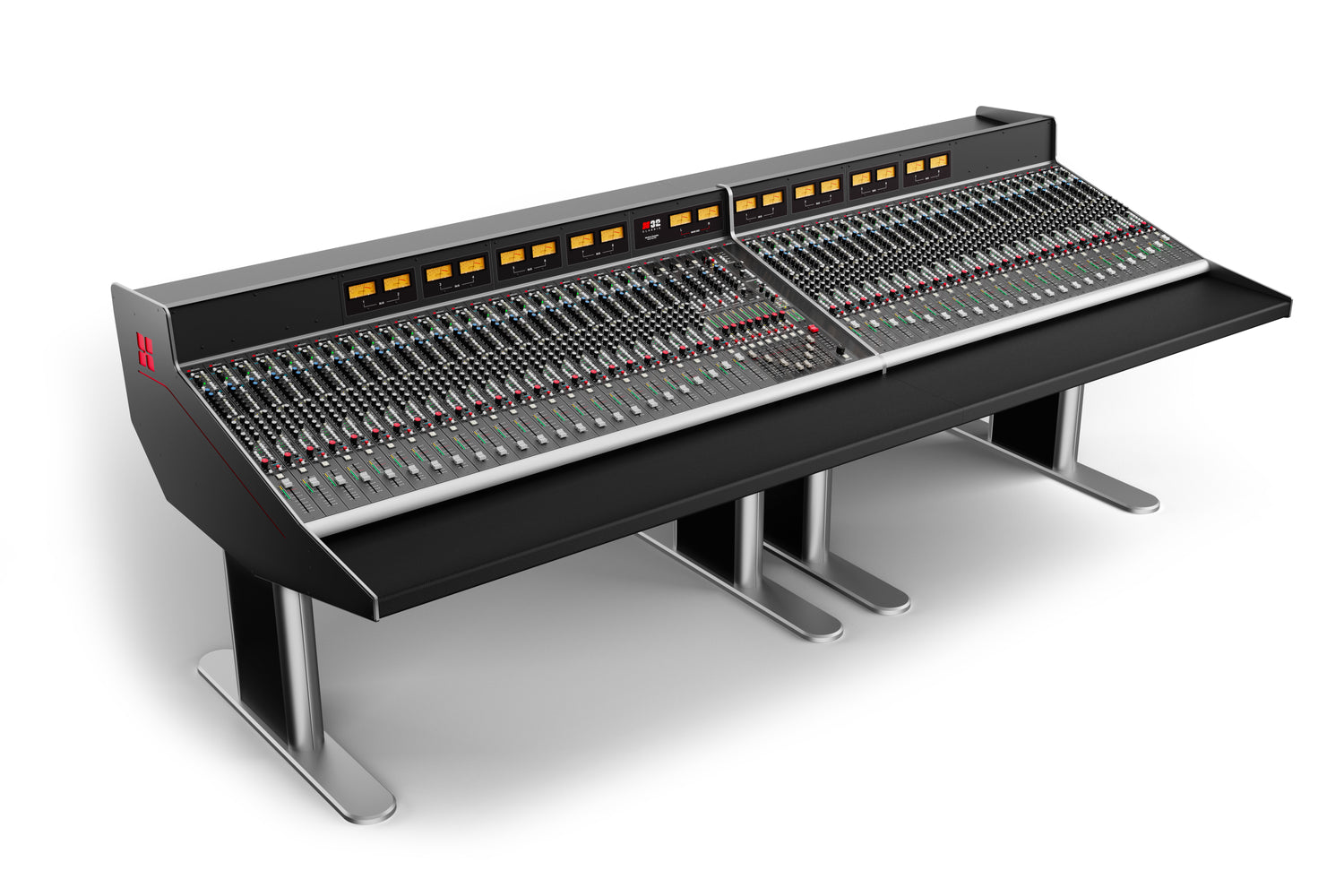

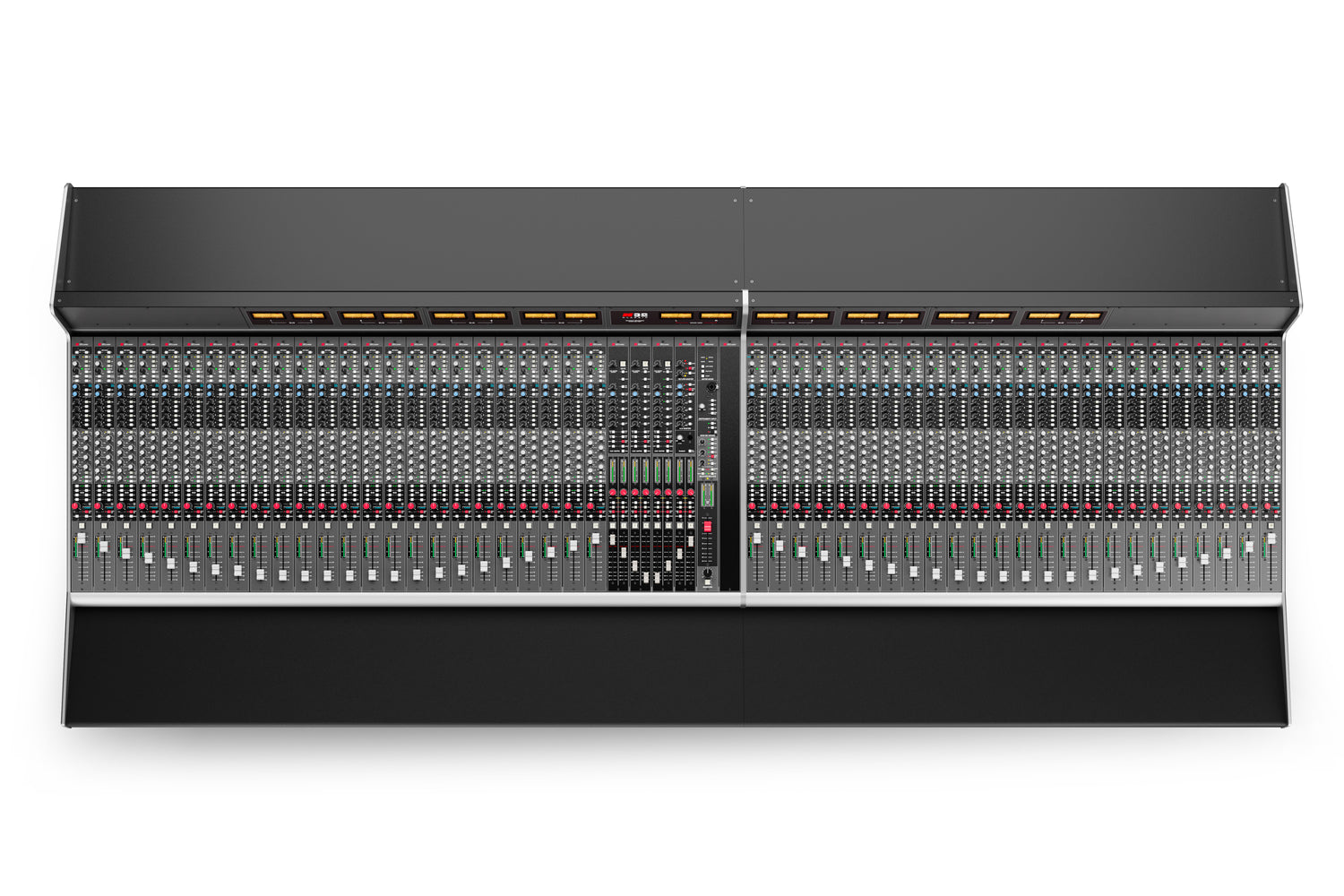

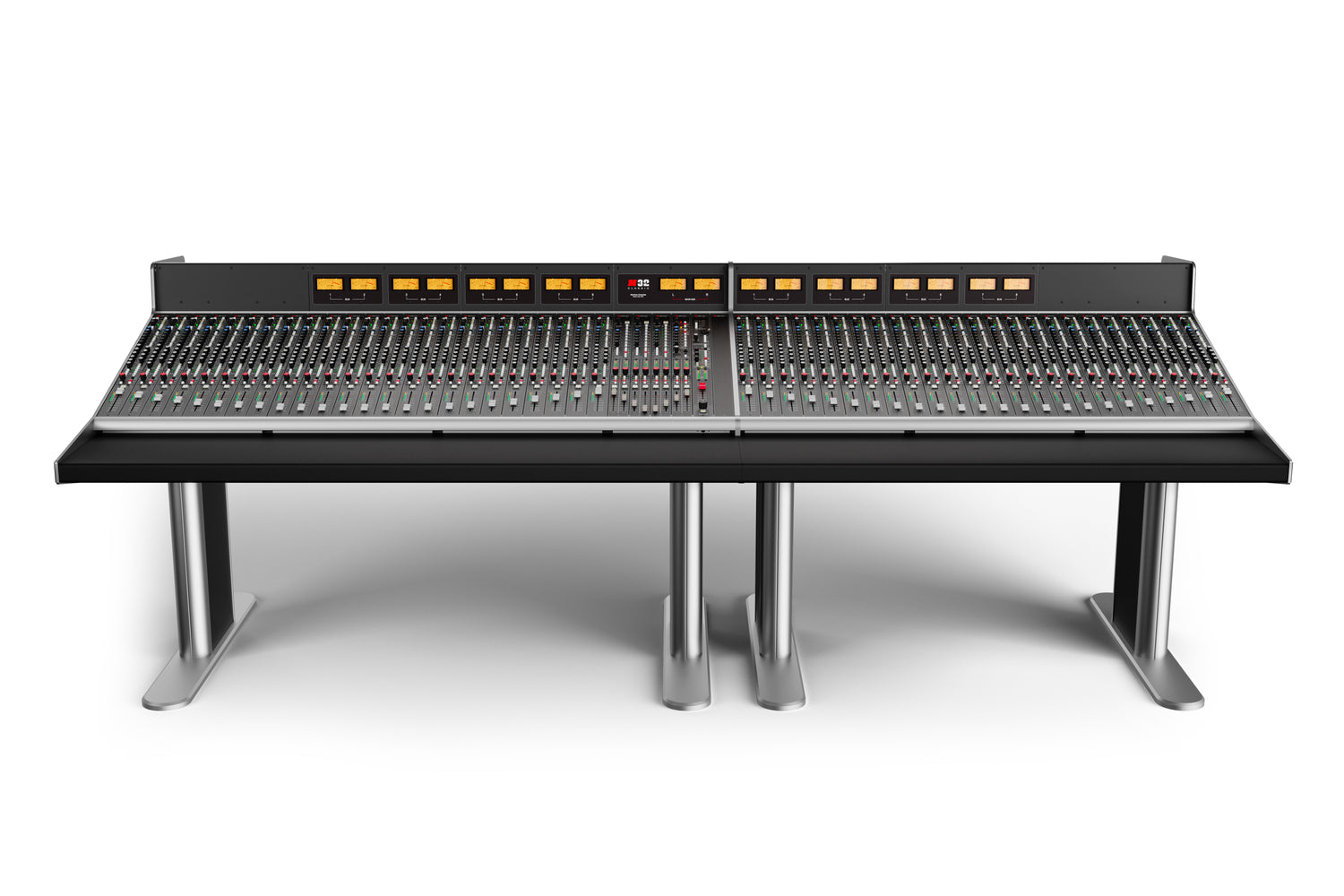

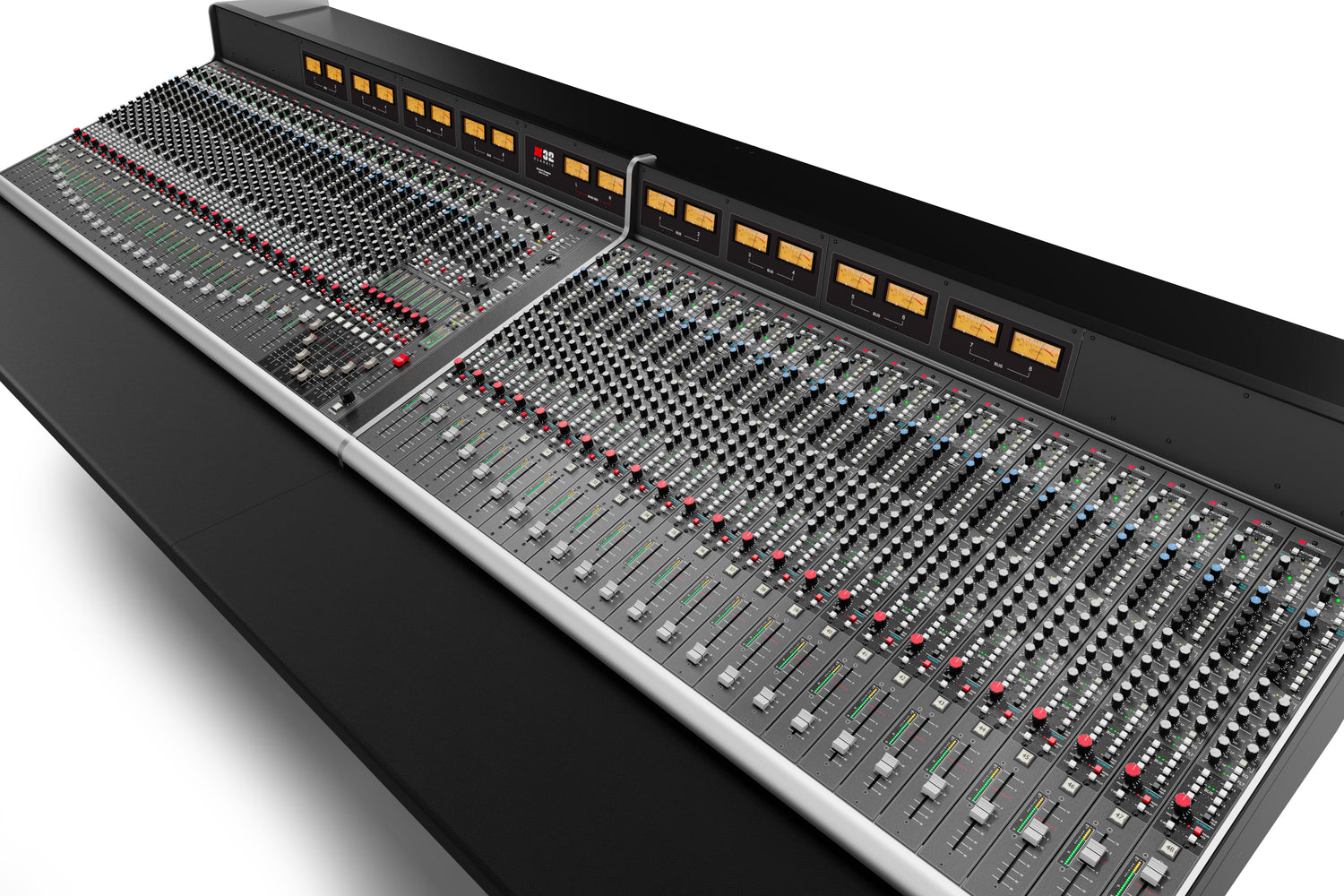

Console 32Classic 48Ch, inclut Dante

Classic Harrison Analog Character
Delivers warm, detailed sound with transformer-balanced mic preamps and the iconic 32C four-band EQ, including smooth high-pass and low-pass filters.

48 Analog Input Channels
Full-capacity console ideal for large-scale recording and mixing environments, offering maximum channel flexibility for complex sessions.

Fully Integrated Dante Interface
Includes 64-channel premium AD/DA converters and built-in Dante AoIP system, allowing seamless, high-resolution digital audio routing to DAWs and networked devices.

Hybrid Workflow Support
Offers both in-line and split-path monitoring with separate input, playback, cue, and output routing that is optimized for modern hybrid analog/digital studios.

Comprehensive Routing & I/O
Features 8 multitrack buses, 4 mono aux sends, 1 stereo cue send, balanced insert points, direct outs, and transformer-balanced main mix output.

Immersive Monitoring Ready
Built-in 12-wide monitor section supports Dolby Atmos 7.1.4 and other immersive formats, with full surround control and monitoring features.

DAW-Compatible Frame Design
Designed with a deep front bolster for keyboard and control devices, and a rear shelf for monitors and nearfields tailored for large control room ergonomics.

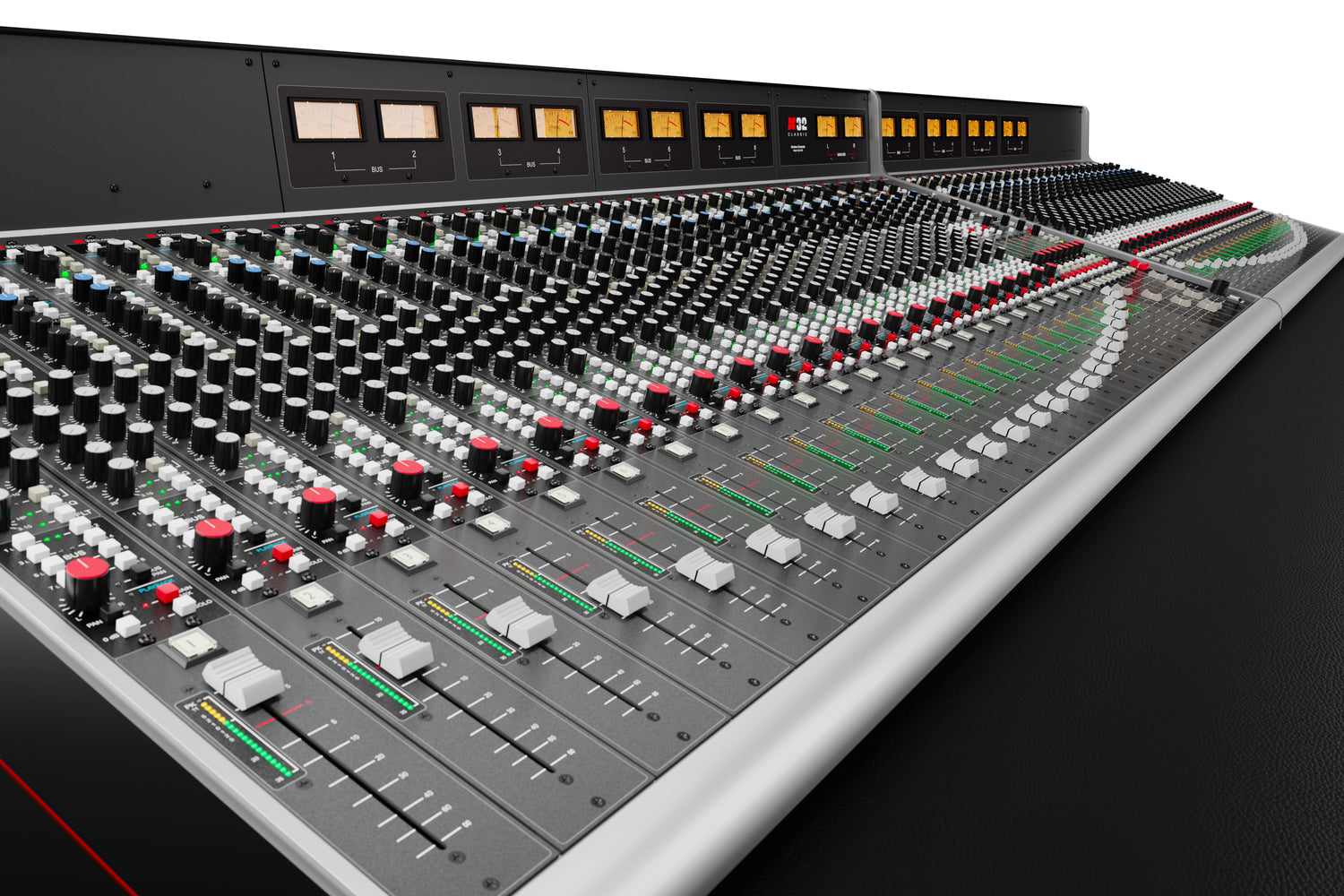

High-End Console Controls
Equipped with 100mm long-throw faders, per-channel 20-segment LED meters, fader lock, solo/mute switches, and illuminated control buttons.

Low-Noise, Fanless Design
Efficient power handling and heat dissipation ensure quiet operation with no fans, built into a rugged extruded aluminum chassis for durability.

Complete Studio Integration
Includes front-panel instrument input, talkback mic with flexible routing, cue matrix, alternate monitor outs, and headphone output for full-session control.

General Specifications
Harrison 32Classic 48-Channel Analog Console with Integrated Dante
Flagship large-format console combining vintage analog tone with modern AoIP workflow
Based on Harrison’s legendary 32C analog architecture
Built-in 64×64-channel Dante AoIP interface with high-end AD/DA conversion
Fully modular design with in-line and split operation
Designed for immersive, hybrid, and DAW-based studio environments
Passive-cooled chassis with internal, low-noise PSU

Channel Count & Configuration
48 Mono Input Channels (transformer-balanced mic/line inputs)
Each channel includes:
– Harrison 32C 4-Band Parametric EQ (Proportional-Q)
– Switchable bell/shelf curves on Hi and Lo bands
– Variable High-Pass and Low-Pass Filters
– Balanced Line Input
– Balanced Insert Point
– Balanced Direct Output
– In-line/Playback switching (playback from Dante DA)
– Zero Fader Lock switch for unity-gain DAW routing
– 100 mm premium fader
– 20-segment LED input meter
– Routing switches: Mute, Solo, Mix Assign, Bus Assign (1–8), Pan

Routing & Bussing
8 Multitrack Buses (mono or stereo with bus pan control)
4 Mono Aux Sends
1 Stereo Aux Send
Stereo Cue Send
Transformer-balanced Main Mix Output
Insert points on Main Mix and Bus Masters
Balanced Stereo Return with level, mute, solo, bus and mix routing

Monitoring & Metering
12-Wide Atmos Monitoring Section (Dolby Atmos 7.1.4 capable)
Monitor Outputs: Main, Alternate, Headphones
Monitor Sources:
– Main Mix
– External Stereo 1
– External Stereo 2
– External 7.1.4
– Dante Stereo Return
Master Monitor Level Potentiometer
Mono, Dim, L/R Mute, Global Mute functions
Main Mix analog VU meters
Solo Active LED indicator
20-segment LED metering for all input and bus modules

Integrated Dante AoIP System
Internal dual Dante 32×32 units (96 kHz sample rate)
64-channel AD/DA conversion built into the console
Separated paths for Channel I/O and Bus/Monitor I/O
Integrated Ethernet switch for single-port DAW connection
Dante playback routed to channel Playback input
Console presents as two independent Dante devices
Enables patchless, zero-latency DAW routing and monitoring

Foldback / Cue Matrix
3 Stereo Cue/Foldback Outputs
Matrix source selection per output:
– Aux Sends
– Bus Outputs
– Stereo Return
– External Inputs
– Main Mix
Per-output controls: Level, Mute, Solo, 0 dB Lock
Integrated Talkback Mic with level control
Master “All Talk” switch

Instrument Input
Hi-Z / Mic Instrument Input on Monitor Section
Features: 48V Phantom, -20 dB Pad, Gain, Input Meter
Assignable to any Input Module or routed directly to Main Mix

EQ & Processing
Harrison 32C EQ on every channel
4-band fully parametric EQ with wide overlapping ranges
Proportional-Q curves with shelving/bell switches on Hi/Lo bands
Switchable High-Pass and Low-Pass Filters per channel

Modular Design & Construction
Console Width: 94 inches / 239 cm (3848 one-piece frame)
Weight: ~500–600 lbs (estimated)
Power Supply: Internal, <600W
Passive cooling – no fans required
Construction Features:
– Double-sided PCB layout with robust ground plane
– Gold-plated switches and conductive plastic potentiometers
– PCB-based summing bus (no ribbon cables)
– Extruded aluminum chassis with integrated cable raceways
– D-Sub connectors for all audio I/O

Included Modules

48 Input Modules

8 Bus Master Modules

Stereo Return and Aux Master Module

Cue/Foldback Matrix Output Module

Main Monitor Module with Atmos monitoring controls

Main Mix Module with transformer switch and VU metering

Talkback Module with per-output control

Studio Integration & Compatibility

Fully integrated Dante AoIP system with seamless DAW workflow

Patch-free playback, monitoring, and recording over Ethernet

Atmos-ready 12-channel monitoring (7.1.4) built in

Ideal for large immersive music studios, post-production, and broadcast

Custom console configurations available upon request
