BAE

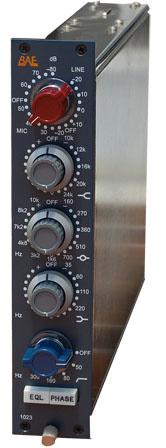

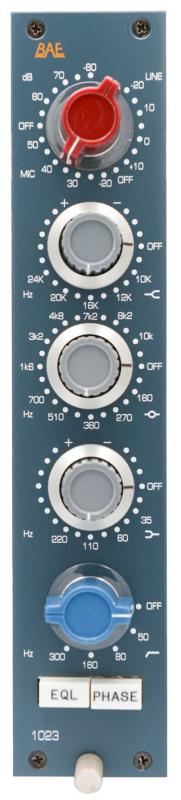

1023 - Mic Pre/EQ Module

Preamp EQ

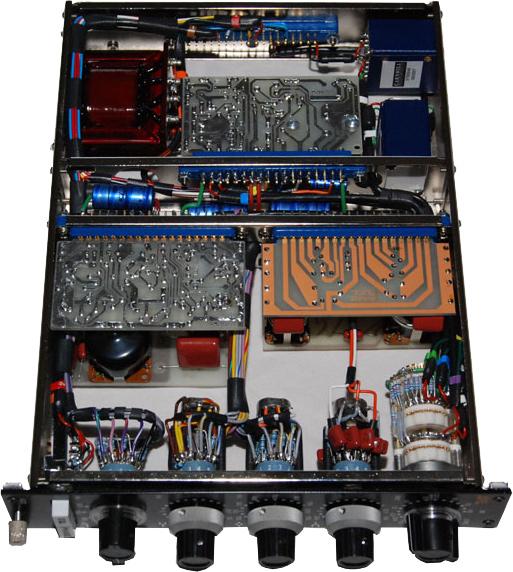

The BAE 1023 Mic Pre/EQ is a 10-series module based on the famous 1073. It is totally handwired using the same Carnhill (St. Ives) transformers as the vintage modules.

$4,999.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

It has the exact same mic/line preamp as the 1073, but with significantly more frequencies in the mid and high sections.

Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow you to play the mid bell curve directly against the high and low shelves where they overlap. This capability opens the tone shaping possibilities in very interesting and musical ways.

Features

High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.

Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.

Mid Range: +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz.

High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.

EQ Button: Switches the equaliser on or off

Phase Button: 180

Specifications

Frequency Response


10Hz to -3dB at 55kHz

3 Band Equaliser


HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz

High Pass Filter


18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz

Mic Input Impedance


1200/300 ohms

Line Input Impedance


10k ohms

DI Input Impedance


150k ohms

Output Impedance


65 ohms

Common Mode Rejection Ratio


100dB min @ 60Hz

Maximum Output Level


+27.4 dBu @ 600

Power Requirements


115/230 VAC, 28W

Gain dB


0 to 80 dB

Equivalent Input Noise


-110 dBu; Unweighted 300kHz Bandwidth

Weight (Module/Rackmount)


6 LBS/2.72 KG 10 LBS/4.54 KG

Dimensions in Inches (Module/Rackmount)


45 mm W x 8.75 inches H x 10.5 inches D 19W x 1.75L x 9D
